How to Draw Angles

  • Drawing angles is similar to measuring angles.
  • If you can measure angles, you will quickly learn to draw them.
  • You need a protractor, sharp pencil, and ruler for drawing angles.

Examples

Example 1: Draw an angle of 50°.
Sol: Step 1: Draw a straight line using a ruler.
Drawing angles | Year 6 Mathematics

Step 2: Place the centre (cross section) of the protractor at one end of the line to form the vertex of the angle.
Drawing angles | Year 6 MathematicsStep 3: Locate 50° on the protractor and mark it.
There are two lots of numbers on the protractor - on the inside and outside. Look for the zero that is on the same side as the line. It is on the left-hand side and on the outside.
Make a mark where the 50° is on the outside scale.
Drawing angles | Year 6 MathematicsStep 4: Remove the protractor. Using a ruler, join the mark you made to the end of the line that was in the centre of the protractor.
Drawing angles | Year 6 Mathematics

Example 2: Draw an angle of 120°.
Sol: Step 1: Draw a straight line using a ruler.

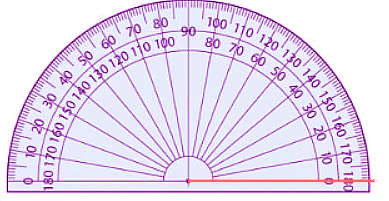

Drawing angles | Year 6 MathematicsStep 2: Place the centre (cross section) of the protractor at one end of the line. This will become the vertex (corner) of the angle. Make sure the line lines up with the base line of the protractor.
Drawing angles | Year 6 MathematicsStep 3: Look for 120° on the protractor. Since the zero is on the inside scale, find the 120° mark on the inside. Make a small mark at this point.
Drawing angles | Year 6 MathematicsStep 4: Remove the protractor. Using a ruler, join the mark you made to the end of the line that was in the centre of the protractor.
Drawing angles | Year 6 Mathematics
