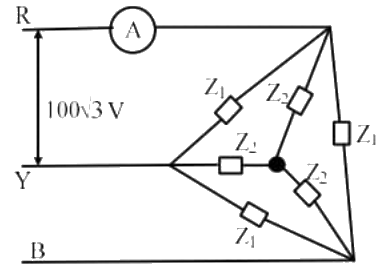

Q1: Two balanced three-phase loads, as shown in the figure, are connected to a 100√3V, three-phase, 50 Hz main supply. Given Z1=(18 + j24)Ω and Z2 = (6 + j8)Ω. The ammeter reading, in amperes, is _______. (round off to nearest integer)  (2022)
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)(a) 15
(b) 20
(c) 18
(d) 22
Ans:
(b)

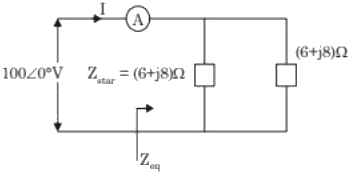

Sol: First perform delta to star conversion we know, for balanced load
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Draw the per phase diagram:
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Zeq = (6 + j8)∣∣(6 + j8) = (3 + j8)Ω = 5∠53.13°Ω
Therefore, Meter reading, I = 100/5 = 20A

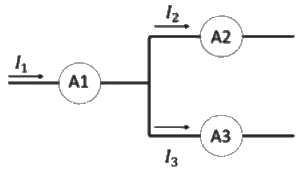

Q2: Currents through ammeters A2 and A3 in the figure are 1∠10° and 1∠70° respectively. The reading of the ammeter A1 (rounded off to 3 decimal places) is ________ A.  (2020)
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)(a) 1.121
(b) 1.732
(c) 2.254
(d) 3.214
Ans:
(b)
Sol: I = 1∠10° + 1∠70°
I = 1.732∠40°
The ready of ammeter is 1.732 A.

Q3: A moving coil instrument having a resistance of 10 Ω, gives a full-scale deflection when the current is 10 mA. What should be the value of the series resistance, so that it can be used as a voltmeter for measuring potential difference up to 100 V?  (2019)
(a) 9Ω
(b) 99Ω
(c) 990Ω
(d) 9990Ω
Ans:
(d)

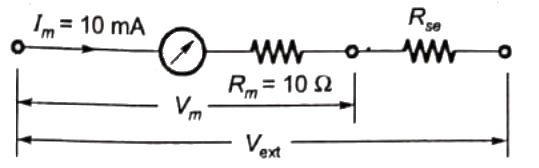

Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Vm = ImRm
= 10 mA x 10Ω
= 100 mV
(0 − 100 mV) ⇒ (0 − 100V)
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Rse = Rm[m - 1]
Rse = 10(1000 - 1)
= 9990Ω

Q4: A 0-1 Ampere moving iron ammeter has an internal resistance of 50 mΩ and inductance of 0.1 mH. A shunt coil is connected to extend its range to 0-10 Ampere for all operating frequencies. The time constant in milliseconds and resistance in mΩ of the shunt coil respectively are  (2018)
(a) 2, 5.55
(b) 2, 1
(c) 2.18, 0.55
(d) 11.1, 2
Ans:
(a)
Sol: Given,
Im = 1A,
Rm = 50mΩ
Lm = 0.1mH,
I = 10A
We know,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)= 5.55mΩ

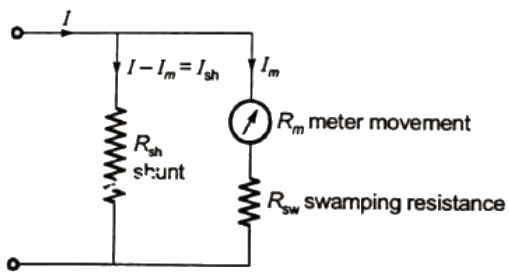

For all frequencies time constant of shunt and meter arm should be equal.
i.e. Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)= 0.002 = 2ms

Q5: A dc voltage with ripple is given by v(t) = [100 + 10sin(ωt) − 5sin(3ωt)] volts.
Measurements of this voltage v(t), made by moving-coil and moving-iron voltmeters, show readings of V1 and V2 respectively. The value of V2 − V1, in volts, is _________.  (SET-1 (2016))
(a) 0.1
(b) 0.31
(c) 0.66
(d) 1
Ans:
(b)
Sol: V(t) = 100 + 10sin(ωt) − 5sin(3ωt) volt
moving coil,
V1 = Vavg. = 100V
moving iron,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)= 100.312
V− V1 = 0.312

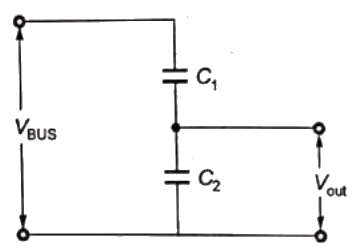

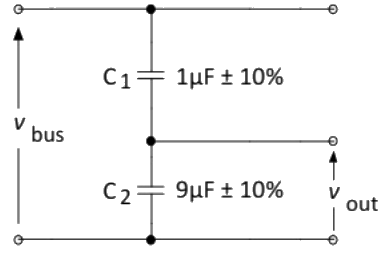

Q6: A capacitive voltage divider is used to measure the bus voltage Vbus in a high-voltage 50 Hz AC system as shown in the figure. The measurement capacitors C1 and C2 have tolerances of ±10% on their nominal capacitance values. If the bus voltage Vbus is 100 kV rms, the maximum rms output voltage Vout (in kV), considering the capacitor tolerances, is __________. (SET-2(2015))
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)(a) 8.52
(b) 11.95
(c) 16.35
(d) 22.25
Ans:
(b)
Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)VBUS is 100kVrms
C1 = 1μF ± 10%
C2 = 9μF ± 10%
To get maximum output voltage we need minimum C2 and maximum C1,
So,C2 = 8.1μF and C1 = 1.1μF
So, Vout rms =  Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
= 11.95kV

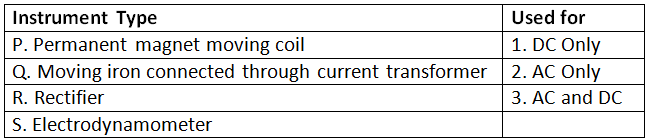

Q7: Match the following.   (SET-2(2015))
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)(a) P-1 Q-2 R-1 S-3
(b) P-1 Q-2 R-1 S-3
(c) P-1 Q-2 R-3 S-3
(d) P-3 Q-1 R-2 S-1
Ans:
(c)

Q8: A (0-50 A) moving coil ammeter has a voltage drop of 0.1 V across its terminals at full scale deflection. The external shunt resistance (in milliohms) needed to extend its range to (0-500 A) is _______.    (SET-1(2015))
(a) 0.11
(b) 0.22
(c) 0.45
(d) 0.68
Ans:
(b)
Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Ifs = 50 A,
Vm = 0.1 V,
Rm = 0.1/50 = 2 × 10−3Ω
∵ m = 10
Rsh = Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
Q9: A periodic waveform observed across a load is represented by Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)The measured value, using moving iron voltmeter connected across the load, is  (SET-3 (2014))
(a) Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)

(b) Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
(c) 3/2
(d) 2/3
Ans:
(a)

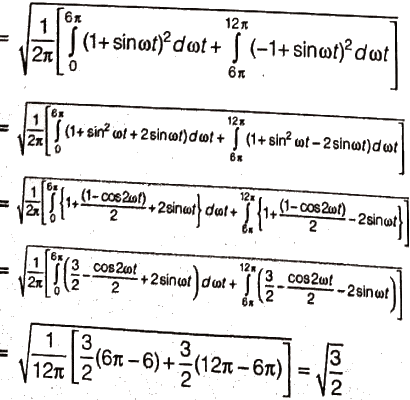

Sol: Since moving iron voltmeter reads rms value,
Vrms=
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
Q10: Two ammeters X and Y have resistances of 1.2 Ω and 1.5 Ω respectively and they give full-scale deflection with 150 mA and 250 mA respectively. The ranges have been extended by connecting shunts so as to give full scale deflection with 15 A. The ammeters along with shunts are connected in parallel and then placed in a circuit in which the total current flowing is 15 A. The current in amperes indicated in ammeter X is_____.  (SET-2(2014))
(a) 10.28
(b) 5.45
(c) 15.85
(d) 20.45
Ans:
(a)
Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Given,
RmX = 1.2Ω,
RmY = 1.5Ω
ImX = 0.15A,
ImY = 0.25A

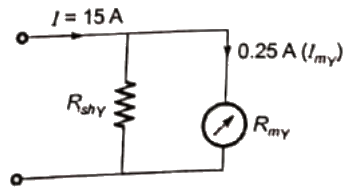

and I = full scale deflection current = 15A

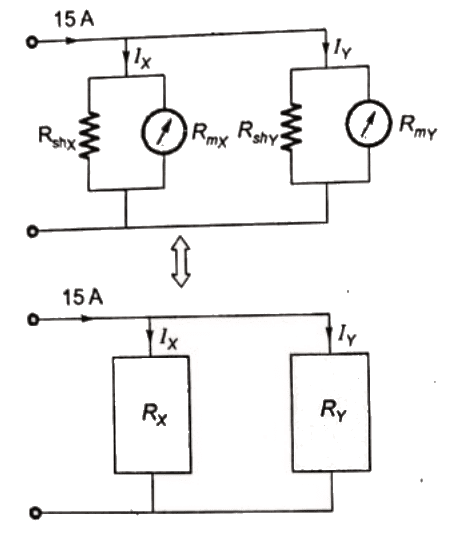

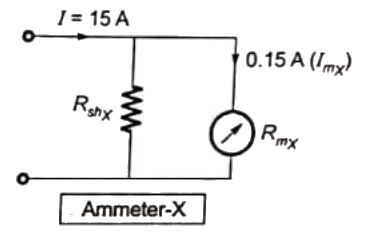

∴ Shunt multiplying factor for ammeter X is

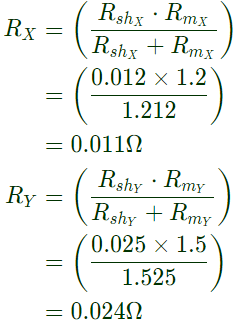

Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE) and shunt multiplier resistance,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Also, shunt multiplying factor for ammeteer Y is
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)and shunt multiplier resistance,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)when these ammeters are connected in parrelel as shown in the figure below,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Let current in ammeter X be IX then,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)∴ Current in ammeter X = 10.28 A

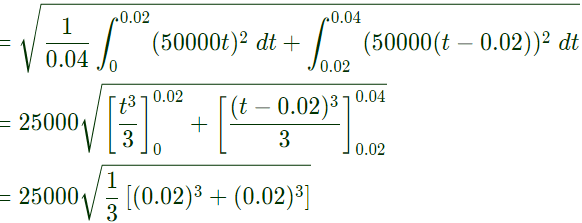

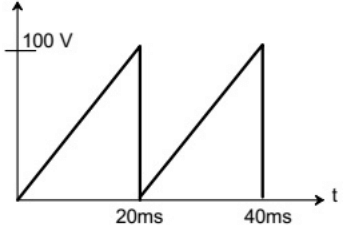

Q11: The saw-tooth voltage waveform shown in the figure is fed to a moving iron voltmeter. Its reading would be close to __________       (SET-2 (2014))
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)(a) 26.26
(b) 57.73
(c) 82.96
(d) 96.48
Ans:
(b)
Sol: Moving iron voltmeter reads rms value of voltage and current. From the given waveform of voltage,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)= 57.73 Volt
∴ Voltage reading by moving iron voltmeter = 57.73 Volts

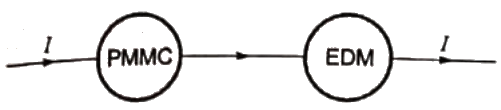

Q12: The dc current flowing in a circuit is measured by two ammeters, one PMMC and another electrodynamometer type, connected in series. The PMMC meter contains 100 turns in the coil, the flux density in the air gap is 0.2Wb/m2, and the area of the coil is 80 mm2. The electrodynamometer ammeter has a change in mutual inductance with respect to deflection of 0.5 mH/deg. The spring constants of both the meters are equal. The value of current, at which the deflections of the two meters are same, is ______  (SET-1(2014))
(a) 2.8
(b) 3.2
(c) 6.8
(d) 4.2
Ans:
(b)

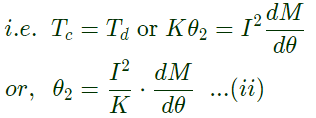

Sol: For a PMMC ammeter, at equilibrim, we have :
controlling torque (Tc) = Deflecting torque(Td)
1 = GI or θ1 = GI/K
where, G = nBA
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)For an electrodynometer ammeter, at equilibrium,
Controlling torque = Deflecting torque
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)For the deflection in the two meter to be same,
θ1 = θ2
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Given, n = number of turns = 100
B = 0.2Wb/m2
A = 80mm2 = 80 × 10−6 m2
and dM/dθ = 0.5mH/rad
= 0.5 x 10-3 H/rad
Putting the values in I, we get
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)= 1.6/0.5 = 3.2 A
∴ Required value of current,
I = 3.2 Amp.

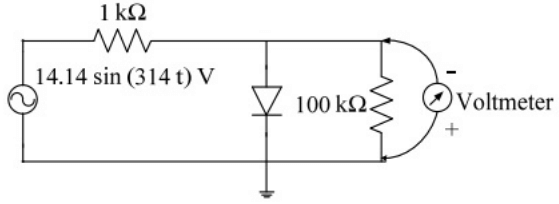

Q13: The input impedance of the permanent magnet moving coil (PMMC) voltmeter is infinite. Assuming that the diode shown in the figure below is ideal, the reading of the voltmeter in Volts is  (2013)
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)(a) 4.46
(b) 3.15
(c) 2.23
(d) 0
Ans:
(a)
Sol: In the half cycle, D is ON
⇒ V0 = 0V
In negative half cycle, D id OFF, PMMC voltmeter measures average value of V0.
In case of half wave rectification,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)= 4.456 V

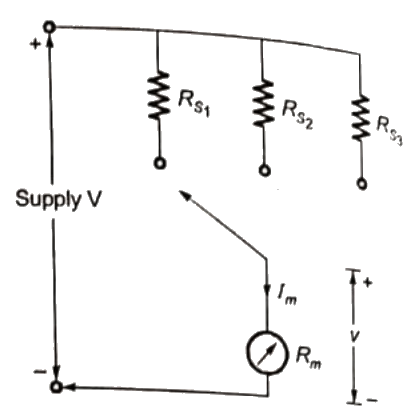

Q14: An analog voltmeter uses external multiplier settings. With a multiplier setting of 20 kΩ, it reads 440 V and with a multiplier setting of 80 kΩ, it reads 352 V. For a multiplier setting of 40 kΩ, the voltmeter reads   (2012)
(a) 371V
(b) 383V
(c) 394V
(d) 406V
Ans:
(d)
Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)when,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)when,
Rs2 = 80kΩ, v =352V
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Rm = 220kΩ, V = 480 V
when, Rs3 = 40kΩ and V = 480V
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)⇒ v = 406.15 V

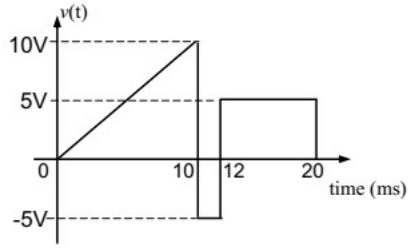

Q15: A periodic voltage waveform observed on an oscilloscope across a load is shown. A permanent magnet moving coil (PMMC) meter connected across the same load reads   (2012)
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)(a) 4V
(b) 5V
(c) 8V
(d) 10V
Ans:
(a)

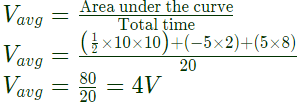

Sol: As PMMC meter reads only DC voltage or average value and average value is equal to
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
Q16: An ammeter has a current range of 0-5 A, and its internal resistance is 0.2 Ω. In order to change the range to 0-25 A, we need to add a resistance of  (2010)
(a) 0.8 Ω in series with the meter
(b) 1.0 Ω in series with the meter
(c) 0.04 Ω in parallel with the meter
(d) 0.05 Ω in parallel with the meter
Ans:
(d)

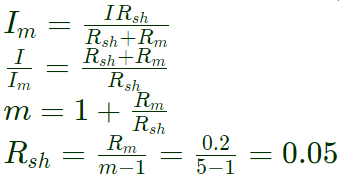

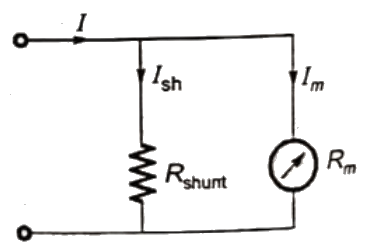

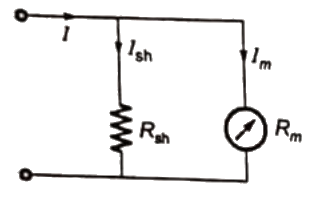

Sol: To extend the range of ammeter, a resistance Rsh is connected across the meter.
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Im = full scale deflection current = 5A
I = 25A
Multiplying power = m = I/Im = 25/5 = 5
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)

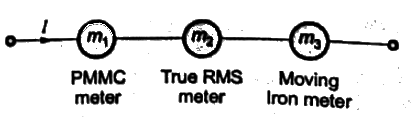

Q17: A current of −8 + 6√2(sin⁡ωt + 30°) A is passed through three meters. They are a centre zero PMMC meter, a true rms meter and a moving iron instrument. The respective reading (in A) will be  (2006)
(a) 8, 6, 10
(b) 8, 6, 8
(c) -8, 10, 10
(d) -8, 2, 2
Ans:
(c)
Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)I = −8 + 6√2sin(ωt + 30°)
I1 = −8A
I2 = 6√2sin⁡(ωt + 30°)
Average value of I1 = −8A
Average value of I= 0
So Average value of I = −8A
PMMC reads only average value of current
Therefore PMMC reads = -8A
RMS value of Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
RMS meter and moving iron meter both reads rms value of the current.
So, both mand m3 reads 10A.

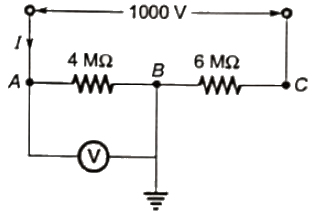

Q18: A 1000 V DC supply has two 1-core cables as its positive and negative leads, their insulation resistances to earth are 4MΩ and 6MΩ, respectively, as shown in the figure. A voltmeter with resistance 50kΩ is used to measure the insulation of the cable. When connected between the positive core and earth, then voltmeter reads  (2005)
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)(a) 8V
(b) 16V
(c) 24V
(d) 40V
Ans:
(a)
Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Resistance of voltmeter (RV) appear parallel to 4MΩ
Effective resistance between A and B,
RAB = RV||4MΩ
RV =  50kΩ = 0.05MΩ
RAB = 0.05||4MΩ = 0.05MΩ
RACRAB + RBC
= 0.05 + 6 = 6.05 MΩ
I = Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
Voltmeter reads,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
Q19: A DC ammeter has a resistance of 0.1 Ω and its current range is 0-100 A. If the range is to be extended to 0-500 A, then meter required the following shunt resistance  (2005)
(a) 0.010 Ω
(b) 0.011 Ω
(c) 0.025 Ω
(d) 1.0Ω
Ans:
(c)

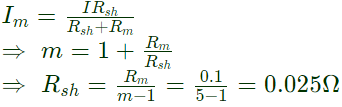

Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Im =  fill scale deflection current = 100 A
I = current to be measure = 500A
Multiplying power,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Rm = 0.1Ω
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
Q20: A PMMC voltmeter is connected across a series combination of DC voltage source V= 2V and AC voltage source V2(t) = 3sin(4t)V. The meter reads (2005)
(a) 2V
(b) 5V
(c) (2+3/2)(2 + √3/2)V
(d) (√17/2)V
Ans:
(a)
Sol: Total voltage across PMMC
= VT = V+ V2
= 2 + 3sin(4t)V
PMMC reads average value
Average value of V1 = 2V
Average value of V2 = 0
Average value of VT= 2V
So PMMC reads = 2V.

Q21: A moving iron ammeter produces a full scale torque of 240 μNm with a deflection of 120° at a current of 10 A . The rate of change of self induction (μH/radian) of the instrument at full scale is  (2004)
(a) 2.0 μH/radian
(b) 4.8 μH/radian
(c) 12.0 μH/radian
(d) 114.6 μH/radian
Ans:
(b)

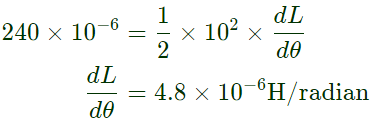

Sol: Torque produced,Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Where I = 10A
T = 240μN − m
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Rate of change of self-inductance
⇒ dL/dθ = 4.8 x 10-6 H/radian

Q22: A moving coil of a meter has 100 turns, and a length and depth of 10 mm and 20 mm respectively. It is positioned in a uniform radial flux density of 200 mT. The coil carries a current of 50 mA. The torque on the coil is  (2004)
(a) 200 μNm
(b) 100 μNm
(c) 1000 μNm
(d) 1 μNm
Ans:
(a)
Sol: T = Torque on the coil = NBAI
where,
N = Number of turns = 100
B = Flux density
= 200mT = 200 × 10−3T
A = Area of the coil
= length × depth
= (10 × 10−3) × (20 × 10−3)
= 200 × 10−6m2
I = Current through the coil
= 50mA = 50 x 10-3
T = NBAI
= 100 x (200 x 10-3) x (200 x 10-6)
= x (50 x 10-3)
= 2 x 10-4 N - m = 200μN-m

Q23: A galvanometer with a full scale current of 10 mA has a resistance of 1000  Ω. The multiplying power (the ratio of measured current to galvanometer current) of 100 Ω shunt with this galvanometer is  (2004)
(a) 110
(b) 100
(c) 11
(d) 10
Ans:
(c)
Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Full scale current of galvanometer
Im = 10mA
Resistance of meter Rm = 1000Ω
Resistance of shunt Rsh = 100Ω
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Multiplying power
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)
Q24:  The inductance of a certain moving-iron ammeter is expressed as L = 10 + 30 − (θ2/4)μH, where θ is the deflection in radians from the zero position. The control spring torque is 25 × 10−6 Nm/radian. The deflection of the pointer in radian when the meter carries a current of 5 A, is (2003)
(a) 2.4
(b) 2
(c) 1.2
(d) 1
Ans:
(c)
Sol: Deflection torque in moving-iron ammeter,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Rate of change of inductance with deflection
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Current , I = 5A
Deflecting torque,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Controlling torque
T= kθ =25 × 10−6θ
At equilibrium,
Tc = Td
25×10−6θ = Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)5θ/2 = 3
θ = 1.2rad

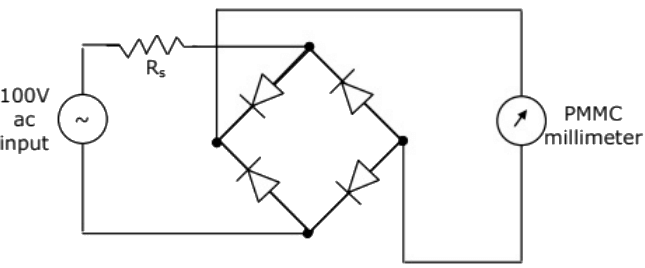

Q25: A rectifier type ac voltmeter of a series resistance Rs, an ideal full-wave rectifier bridge and a PMMC instrument as shown in figure. The internal. resistance of the instrument is 100 Ω and a full scale deflection is produced by a dc current of 1 mA. The value of Rs required to obtain full scale deflection with an ac voltage of 100 V (rms) applied to the input terminals is (2003)
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)(a) 63.56Ω
(b) 69.93Ω
(c) 89.93Ω
(d) 141.3kΩ
Ans:
(c)
Sol: IFS = Current required to produce full scale deflection
d.c. sensitivity is,
Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)For full wave rectifier a.c. sensitivity
Sac = 0.9 Sdc = 900Ω/V
Resistance of multiplier,
RS = sac V − Rm − 2Rd
Since, diodes are ideal,
R= 0
then, R= 900 × 100 − 100 = 89.9kΩ

Q26: The effect of stray magnetic field on the actuating torque of a portable instrument is maximum when the operating field of the instrument and the stray fields are  (2003)
(a) perpendicular
(b) parallel
(c) inclined at 60%
(d) inclined at 30%
Ans:
(b)
Sol: Due to stray magnetic field, torque is also produced which can affect the torque produced due to operating field. If bothstray magnetic and operating field are parallel, torque due to both field become additive.

Q27: A Manganin swap resistance is connected in series with a moving coil ammeter consisting of a milli-ammeter and a suitable shunt in order to  (2003)
(a) minimise the effect of temperature variation
(b) obtain large deflecting torque
(c) reduce the size of the meter
(d) minimise the effect of stray magnetic fields
Ans:
(a)
Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)Coil is made of copper
A swamping resistance (Rsw) of manganin (which has a negligible temperature coefficient) having a resistance of 20 to 30 times the coil resistance is connected in series with the coil and a shunt of manganin is connected across this combination. Since copper forms a samll fraction of the series combination, the proportion in which the currents would divide between the meter and the shunt would not change appreciably with the change in temperature.

Q28: A 100μA ammeter has an internal resistance of 100Ω. For extending its range to measure 500μA, the shunt resistance required is of (in Ω)  (2001)
(a) 20
(b) 22.22
(c) 25
(d) 50
Ans:
(c)
Sol: Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)

The document Previous Year Questions- Galvanometers, Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE) is a part of the Electrical Engineering (EE) Course Electrical and Electronic Measurements.
All you need of Electrical Engineering (EE) at this link: Electrical Engineering (EE)
3 videos|39 docs|22 tests

Top Courses for Electrical Engineering (EE)

FAQs on Previous Year Questions- Galvanometers, Voltmeters and Ammeters - Electrical and Electronic Measurements - Electrical Engineering (EE)

1. What is the principle of operation of a galvanometer?
Ans.A galvanometer operates on the principle that a current-carrying conductor placed in a magnetic field experiences a torque. This torque causes the coil to rotate, which can be measured on a scale. The deflection of the coil is proportional to the current passing through it, allowing it to indicate small currents accurately.
2. How can a galvanometer be converted into a voltmeter?
Ans.A galvanometer can be converted into a voltmeter by connecting a high resistance (called a multiplier) in series with it. This resistance limits the current flowing through the galvanometer to a safe level while allowing it to measure higher voltages. The range of the voltmeter can be adjusted by changing the value of this resistance.
3. What is the difference between an ammeter and a voltmeter?
Ans.An ammeter is used to measure current in a circuit and is connected in series with the load, while a voltmeter measures voltage across two points in a circuit and is connected in parallel. This fundamental difference in connection affects their design, where ammeters have low resistance and voltmeters have high resistance.
4. What are the limitations of using galvanometers in practical applications?
Ans.Galvanometers have limitations such as sensitivity to external magnetic fields, limited range for current measurement, and they can only measure small currents. Additionally, they may not provide a linear response at higher currents, which can affect accuracy and reliability in practical applications.
5. How does temperature affect the performance of voltmeters and ammeters?
Ans.Temperature can affect the performance of voltmeters and ammeters by altering the resistance of the components within these devices. Changes in temperature can lead to drift in readings and affect the accuracy of measurements. It is important to calibrate these instruments periodically to ensure they remain accurate under varying temperature conditions.
3 videos|39 docs|22 tests
Download as PDF
Explore Courses for Electrical Engineering (EE) exam

Top Courses for Electrical Engineering (EE)

Signup for Free!
Signup to see your scores go up within 7 days! Learn & Practice with 1000+ FREE Notes, Videos & Tests.
10M+ students study on EduRev
Related Searches

Objective type Questions

,

practice quizzes

,

Previous Year Questions- Galvanometers

,

Previous Year Questions- Galvanometers

,

past year papers

,

Viva Questions

,

mock tests for examination

,

Sample Paper

,

Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)

,

Free

,

video lectures

,

ppt

,

Important questions

,

MCQs

,

Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)

,

pdf

,

Summary

,

Voltmeters and Ammeters | Electrical and Electronic Measurements - Electrical Engineering (EE)

,

Semester Notes

,

Previous Year Questions with Solutions

,

Previous Year Questions- Galvanometers

,

shortcuts and tricks

,

Exam

,

Extra Questions

,

study material

;
