Previous Year Questions: Machine Instruction | Computer Architecture & Organisation (CAO) - Computer Science Engineering (CSE) PDF Download

Q1: A processor uses a 32-bit instruction format and supports byte-addressable memory access. The ISA of the processor has 150 distinct instructions. The instructions are equally divided into two types, namely R-type and I-type, whose formats are shown below.

In the OPCODE, 1 bit is used to distinguish between I-type and R-type instructions and the remaining bits indicate the operation. The processor has 50 architectural registers, and all register fields in the instructions are of equal size.
Let X be the number of bits used to encode the UNUSED field, Y be the number of bits used to encode the OPCODE field, and Z be the number of bits used to encode the immediate value/address field. The value of X + 2Y + Z is ______  (2024 SET-2)
(a) 34
(b) 56
(c) 42
(d) 64
Ans: (a)
Sol: Opcode field(Y): There are 150 instructions, and they are equally divided into two types. Therefore, there are 75 I-type instructions and 75 R-type instructions. Since one bit is used to distinguish between instruction types, the number of bits used to encode opcode field is Y = (1+7) = 8
Register field: There are 50 architectural registers and all register fields in the instructions are of equal size. Therefore, the number of bits used to encode register field is 6
Unused field(X): The number of bits used to encode unused field in R-type instructions is X = 32 - (8 + 6 + 6 + 6) = 6
Immediate value/address field(Z): The number of bits used to encode immediate value/address field in I-type instructions is Z = 32 - (8 + 6 + 6) = 12

Therefore, the values of X, Y, and Z are:

• X = 6 bits (UNUSED field)
• Y = 8 bits (OPCODE field)
• Z = 12 bits (immediate value/address field)

So the answer is 6 + 2 * 8 + 12 = 34

Q2: A processor with 16 general purpose registers uses a 32-bit instruction format. The instruction format consists of an opcode field, an addressing mode field, two register operand fields, and a 16-bit scalar field. If 8 addressing modes are to be supported, the maximum number of unique opcodes possible for every addressing mode is _________  (2024 SET-2)
(a) 16
(b) 32
(c) 64
(d) 128
Ans: (b)
Sol: Instruction size = 32 bits
Given that no. of Registers = 16
So no. of bits needed to specify a register in instruction = 4
Given that no. of Addressing modes = 8
So no. of bits needed to specify an addressing mode in instruction = 3
No. of bits available for opcode = Instruction size - (Addressing mode field size + 2 * Register field size + Scalar field size)
= 32 - (3 + 2*4 + 16)
= 32 - 27
= 5
So maximum no. of unique opcodes possible = 2⁵ = 32

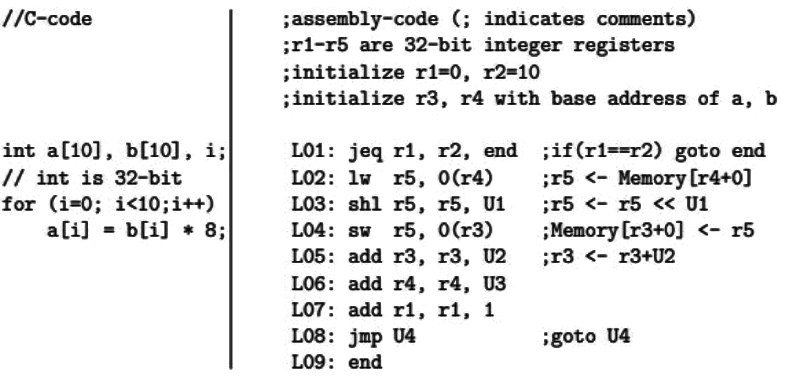

Q3: Consider the given C-code and its corresponding assembly code, with a few operands U1-U4 being unknown. Some useful information as well as the semantics of each unique assembly instruction is annotated as inline comments in the code. The memory is byte-addressable.
Which one of the following options is a CORRECT replacement for operands in the position (U1, U2, U3, U4) in the above assembly code?  (2023)
(a) (8, 4, 1, Lo2)
(b) (3, 4, 4, Lo1)
(c) (8, 1, 1, Lo2)
(d) (3, 1, 1, Lo1)
Ans: (b)
Sol: To understand u₁, we must first find out what the register r₅ is storing.
If you check closely the line L₀₂, it’s fetching an element from array b and storing it in r₅.
Line L₀₄ is storing the value present in r₅ to array a, so we’re definitely performing the multiplication by 8 in L₀₃.
L₀₃ is a shift-left operator. To multiply by 8, how many bits (in binary) do we need to shift to left? If you can find out that number, that would be the answer to u₁.
L₀₅ and L₀₆ are incrementing the values of registers r₃ and r₅ respectively to point to next element of a and b respectively. But by how much shall we increase it to make it point to next element?
Suppose at some point in time, r₃ is storing 1000 in decimal and pointing to 2^nd element of array a. Recall that each element is 4Bytes in size (given in question). Now, what is the address of 3rd element of array a, can you guess? Yes, it would be 1004. Hence, 4 must be added.
Note: Given memory is byte addressable. Each int takes 32bit = 4B, so we need to shift by 4 addresses.
u₄ should be the line to make the loop repeat. Note that if we make it L₀₂, the loop termination condition is skipped and would lead to infinite loop (or unless we got trapped due to accessing illegal memory).
The value of u₁, u₂, u₃, u₄ will be 3, 4, 4, L01.
Option B is the right answer.

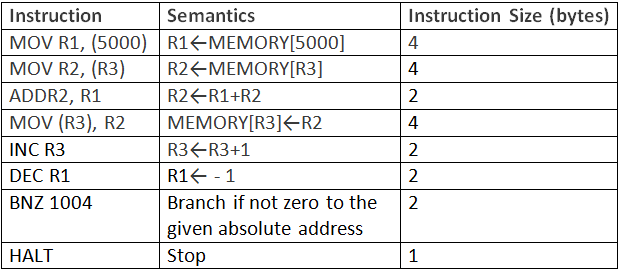

Q4: Consider the following instruction sequence where registers R₁, R₂ and R₃ are general purpose and MEMORY [X] denotes the content at the memory location X.
Assume that the content of the memory location 5000 is 10, and the content of the register R₃ is 3000. The content of each of the memory locations from 3000 to 3020 is 50. The instruction sequence starts from the memory location 1000. All the numbers are in decimal format. Assume that the memory is byte addressable.
After the execution of the program, the content of memory location 3010 is ____________.  (2021 SET-1)
(a) 50
(b) 100
(c) 60
(d) 110
Ans: (a)
Sol: The given code is iterating 10 times and incrementing the contents of locations $3000$3000 to 3000 + i$3000+i$ by $10-i,$10 - i, for 3010$i<10.$ Location $3010$ is left untouched.
So, correct answer:  50.

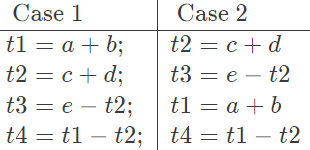

Q5: A computer which issues instructions in order, has only 2 registers and 3 opcodes ADD, SUB and MOV. Consider 2 different implementations of the following basic block :
Assume that all operands are initially in memory. Final value of computation also has to reside in memory. Which one is better in terms of memory accesses and by how many MOV instructions?  (2020)
(a) Case 2, 2
(b) Case 2, 3
(c) Case 1, 2
(d) Case 1, 3
Ans: (a)

Q6: Consider a 32- bit processor which supports 70 instructions. Each instruction is 32 bit long and has 4 fields namely opcode, two register identifiers and an immediate operand of unsigned integer type. Maximum value of the immediate operand that can be supported by the processor is 8191. How many registers the processor has?  (2020)
(a) 32
(b) 64
(c) 128
(d) 16
Ans: (b)
Sol:

Number of instructions which are supported = 70

13 - bits support the maximum value of immediate operand = 8191
Now,
Number of bits needed for opcode = 7 bits
Number of bits left to represent register bits = 12
which means 6 - bits per register.
Hence, at max. 64 registers.
∴ (b) is the correct option.

Q7: A non-pipelined CPU has 12 general purpose registers?(R0, R1, R2,..., R12). Following operations are supported
ADD Ra, Rb, Rr Add Ra to Rb and store the result in Rr
MUL Ra, Rb, Rr Multiply Ra to Rb and store the result in Rr
MUL operation takes two clock cycles, ADD takes one clock cycle.
Calculate minimum number of clock cycles required to compute the value of the expression XY + XYZ + YZ. The variable X, Y, Z are initially available in registers R0, R1 and R2 and contents of these registers must not be modified.  (2020)
(a) 5
(b) 6
(c) 7
(d) 8
Ans: (b)
Sol: Let's first rewrite the expression as: y*(x + z + x*z)
the instructions are:
ADD R0, R1, R3
MUL R0, R1, R4
ADD R3, R4, R3
MUL R2, R3, R3
Since it is a non-pipelined processor it will take 2*2 + 2*1 = 6 cycles

Q8: Statements associated with registers of a CPU are given. Identify the false statement.  (2020)
(a) The program counter holds the memory address of the instruction in execution
(b) Only opcode is transferred to the control unit
(c) An instruction in the instruction register consists of the opcode and the operand
(d) The value of the program counter is incremented by 1 once its value has been read to the memory address register
Ans: (a)
Sol: C holds the address of the next instruction to be fetched.
MAR holds the address of the instruction being executed.
So, A is False (Answer)
Control Unit needs only the Opcode field of the instruction. The other information (Addressing Mode, and the Operands) are required by the ALU to perform the involved computation.
So, B is True.
Instruction Register (IR) is the register that holds the instruction itself (NOT the address of it).
We say an instruction is fetched when we successfully load it in the IR. Of course, it will consist of the Opcode and the Operands.
So, C is True.
Memory Address Register (MAR) holds the address of the current instruction in execution. When the contents of PC are loaded into MAR, PC is incremented where the next instruction is.
Iff the size of an instruction is 1 word, only then PC would be incremented by 1.
Option D is True under this assumption.

Q9: A processor has 64 registers and uses 16-bit instruction format. It has two types of instructions: I-type and R-type. Each I-type instruction contains an opcode, a register name, and a 4-bit immediate value. Each R-type instruction contains an opcode and two register names. If there are 8 distinct I-type opcodes, then the maximum number of distinct R-type opcodes is _______.  (2020)
(a) 16
(b) 8
(c) 14
(d) 12
Ans: (c)
Sol: Instruction Length: 16 bits

To distinguish among 64 registers, we need log₂⁡(64) = 6 bits
I-type instruction format:
R-type instruction format:
Maximum possible encodings  = 2¹⁶
It is given that there are 8 I-type instructions. Let's assume the maximum R-type instructions to be x.
Therefore, (8 × 2⁶ × 2⁴) + (x × 2⁶ × 2⁶) = 2¹⁶
⇒ x = 16−2 = 14

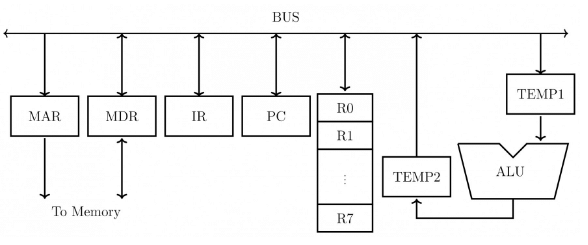

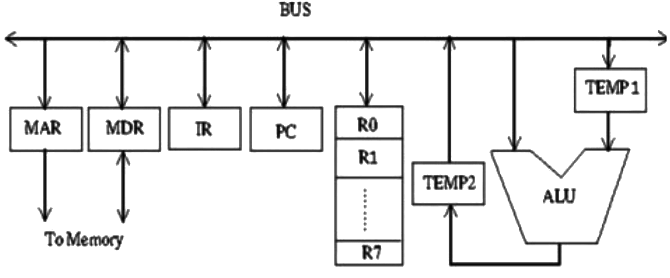

Q10: Consider the following data path diagram.
Consider an instruction: R0 ← R1 + R2. The following steps are used to execute it over the given data path. Assume that PC is incremented appropriately. The subscripts r and w indicate read and write operations, respectively.
1.R2_r, TEMP1_r, ALU_add, TEMP2_w
2.R1_r, TEMP1_w
3.PC_r, MAR_w, MEM_r
4.TEMP2_r, R0_w
5.MDR_r, IR_w
Which one of the following is the correct order of execution of the above steps?  (2020)
(a) 2,1,4,5,3
(b) 1,2,4,3,5
(c) 3,5,2,1,4
(d) 3,5,1,2,4
Ans: (c)
Sol: 3^rd followed by 5^th are Instruction fetch cycle micro operations and can be elaborated as follows:
t₁:MAR_w←PC_r
t₂:MDR_w←Memory_r∣PC←PC+1
t₃:IR_w←MDR_r
Now we need to perform Execute cycle micro operations. Just observe the figure and it will be very easy to identify the sequence between 1^st, 2^nd, 4^th
2^nd is clearly stating that we need to move R1 content to some temporary register named as TEMP1 and it is very clear that before performing ALU operation we need the content in TEMP1. Hence 2nd will be performed next after 5^th.

TEMP1_w ← R1_r
Now we can perform ALU operation and can take second operand directly from R2 and the figure clearly shows us that we need to put the result of ALU back into TEMP2. All these steps are performed in 1^st. So 1^st will be next.
TEMP2_w ← TEMP1_r  + ALU_add R2_r
Lastly we need to put the result present in TEMP2 into R0. This step is performed by 4^th.
R0_w ← TEMP2_r
Correct Answer (C) : 3, 5, 2, 1, 4

Q11: A byte addressable computer has a memory capacity of 2^mKB(k bytes ) and can perform 2ⁿ operations. An instruction involving 3 operands and one operator needs maximum of:  (2018)
(a) 3m bits
(b) 3m+n bits
(c) m+n bits
(d) none of the above
Ans: (d)
Sol:  Memory capacity = 2^mKB = 2^m+10B
Since byte addressable memory is given 1 word = 1 byte
Memory capacity = 2^m+10 words
No. of bits required to point 1 memory location  = m+10 bits
Total no. of operations = 2ⁿ
No. of bits to define 1 operation = n bits
Given an instruction have 3 operands and 1operator.
No. of bits needed by instructions = 3∗(m+10)+n
= 3m+n+30 bits
Option (d) is the correct answer.

Q12: A data driven machine is one that executes an instruction if the needed data is available. The physical ordering of the code listing does not dictate the course of execution. Consider the following pseudo-code:
A. Multiply E by 0.5 to get F
B. Add A and B to get E
C. Add B with 0.5 to get D
D. Add E and F to get G
E. Add A with 10.5 to get C
Assume A,B,C are already assigned values and the desired output is G. Which of the following sequence of execution is valid?  (2018)
(a) B, C, D, A, E
(b) C, B, E, A, D
(c) A, B, C, D, E
(d) E, D, C, B, A
Ans: (b)
Sol: We can give data dependency as follows with each node being the corresponding instruction.

So, instruction A cannot happen before instruction B and also instruction D cannot happen before either instruction A or instruction B. Only option satisfying this is option B.

Q13: A processor has 16 integer registers (R0, R1,...,R15) and 64 floating point registers (F0, F1,...,F63). It uses a 2-byte instruction format. There are four categories of instructions: Type-1, Type-2, Type-3, and Type-4. Type-1 category consists of four instructions, each with 3 integer register operands (3Rs). Type-2 category consists of eight instructions, each with 2 floating point register operands (2Fs). Type-3 category consists of fourteen instructions, each with one integer register operand and one floating point register operand (1R+1F). Type-4 category consists of N instructions, each with a floating point register operand (1F).
The maximum value of N is __________.  (2018)
(a) 8
(b) 16
(c) 32
(d) 64
Ans: (c)
Sol: We have 2-byte instruction format. So, total number of instruction encodings = 2¹⁶
PS: This is not the number of different instructions but different encodings; a single instruction can have different encodings when the address part differs.
No. of bits taken by an integer operand (16 possible integer registers) = log_2⁡16 = 4.
No. of bits taken by a floating point operand (64 possible floating point registers) = log_2⁡64 = 6.
No. of encodings consumed by Type 1 instructions = 4×2^3×4 = 2¹⁴.
No. of encodings consumed by Type 2 instructions = 8×2^2×6 = 2¹⁵.
No. of encodings consumed by Type 3 instructions = 14×2⁽⁴⁺⁶⁾ = 14336.
No. of encodings left for Type 4 = 2¹⁶−(2¹⁴+2¹⁵+14336) = 2048.
No. of different instructions of Type  4= 2048/64 = 32.

Q14: Consider the following processor design characteristics.
I. Register-to-register arithmetic operations only
II. Fixed-length instruction format
III. Hardwired control unit
Which of the characteristics above are used in the design of a RISC processor?  (2018)
(a) I and II only
(b) II and III only
(c) I and III only
(d) I, II and III
Ans: (d)
Sol: Hardwired control units are implemented through use of combinational logic units, featuring a finite number of gates that can generate specific results based on the instructions that were used to invoke those responses. Their design uses a fixed architecture—it requires changes in the wiring if the instruction set is modified or changed. This architecture is preferred in reduced instruction set computers (RISC) as they use a simpler instruction set.
Instructions length cannot vary in RISC usually it's 32 bit. For CISC it can be between 16 to 64 bits.
The hardwired control unit is used when instructions are fixed.
Register to register operations is always possible in RISC. CISC can have memory to memory instructions also.

Q15: Consider a processor with 64 registers and an instruction set of size twelve. Each instruction has five distinct fields, namely, opcode, two source register identifiers, one destination register identifier, and a twelve-bit immediate value. Each instruction must be stored in memory in byte-aligned fashion. If a program has 100 instructions, the amount of memory(in bytes) consumed by the program text is _____ .  (2016 Set-2)
(a) 425
(b) 500
(c) 800
(d) 600
Ans: (b)
Sol: Number of registers = 64
Number of bits to address register = ⌈log₂⁡64⌉ = 6−bits
Number of Instructions = 12
Opcode size = ⌈log₂⁡12⌉ = 4

2 for double word beginning at even address.

1 for single word beginning at even address.

2 for single word beginning at odd address.

Q21: Consider two processors P1 and P2 executing the same instruction set. Assume that under identical conditions, for the same input, a program running on P2 takes 25% less time but incurs 20% more CPI (clock cycles per instruction) as compared to the program running on P1. If the clock frequency of P1 is 1GHz, then the clock frequency of P2 (in GHz) is _________.  (2014 Set-1)
(a) 3.75
(b) 1.6
(c) 2
(d) 2.6
Ans: (b)

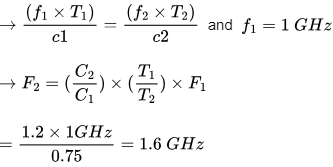

Sol: CPU TIME (T) = No. of Instructions (I) × No. of Cycles Per Instruction (c) × Cycle Time (t)
OR

CPU TIME (T) = → T = I_c x CPI x F^-1
→ P₁ & P₂ executing same instruction set So,
No. of Instructions same for both = I₁ = I₂ = I
If P₁ takes T₁ time,
→ T₂ = 0.75 x T₁ → T₂/T₁ = 0.75
If P₁ incurs C₁ clock cycles per instruction,
→ C₂ = 1.2 x C₁ → C₂/C₁ =1.2
Since I is same for both,
Hence, the clock frequency of P₂  is = 1.6 GHz.

Q22: A machine has a 32-bit architecture, with 1-word long instructions. It has 64 registers, each of which is 32 bits long. It needs to support 45 instructions, which have an immediate operand in addition to two register operands. Assuming that the immediate operand is an unsigned integer, the maximum value of the immediate operand is ____________.  (2014 SET-1)
(a) 16383
(b) 8191
(c) 32767
(d) 4097
Ans: (a)
Sol: 64 registers means 6 bits (⌈log₂⁡64⌉ = 6) for a register operand. So, 2 register operands require 12 bits. Now, 45 instructions require another 6 bits for opcode (⌈log₂⁡45⌉ = 6). So, totally 18 bits. Now we have 32−18 = 14 bits left for the immediate operand. So, the max value will be 2¹⁴−1 = 16383 (as the operand is unsigned we do not need a sign bit and with 14 bits we can represent from 0 to 2¹⁴ − 1)

Q23: How many number of times the instruction sequence below will loop before coming out of the loop?  (2013)
MOV AL, 00H
A1: INC AL
JNZ A1
(a) 1
(b) 255
(c) 256
(d) Will not come out of the loop.
Ans: (c)
Sol: 256. AL is incremented 1 in each iteration and after 256 increments, it becomes 0 again as AL register is 8 bits.
When AL = 0000 0000 and CY = 1,  JNZ will be false. JNZ means jump when previous operation set Zero flag and not jump when previous operation did not set zero flag. So control comes out of loop after 256 iterations.

Q24: In 8086, the jump condition for the instruction JNBE is?  (2013)
(a) CF = 0 or ZF = 0
(b) ZF = 0 and SF = 1
(c) CF = 0 and ZF = 0
(d) CF = 0
Ans: (c)

Q25: Consider the following sequence of micro-operations.
MBR ← PC
MAR ← X
PC ← Y
Memory ← MBR
Which one of the following is a possible operation performed by this sequence?  (2013)
(a) Instruction fetch
(b) Operand fetch
(c) Conditional branch
(d) Initiation of interrupt service
Ans: (d)
Sol: Here PC value is being stored in memory which is done when either CALL RETURN involved or there is Interrupt. As, we will have to come back to execute current instruction.
So, options (A), (B) are clearly incorrect.
Option (C) is incorrect because conditional branch does not require to save PC contents.
Option (D) is correct as it matches the generic Interrupt Cycle :

Q26: Find the memory address of the next instruction executed by the microprocessor (8086), when operated in real mode for CS=1000 and IP=E000  (2011)
(a) 10E00
(b) 1E000
(c) F000
(d) 1000E
Ans: (b)
Sol: In 8086 the address bus is 20 bit, The address is generated by using segment base and offset.
i.e. Address = segment * 0 x 10 + Offset (Here segment is multiplied by 10h)
Given : Segment base (CS) = 0 x 1000 and Offset (IP) = 0 x E000
Therefore, Address = CS * 0 x 10 + IP
= 0 x 1000*0 x 10 + 0 x E000
= 0 x 1E000
Hence answer is 0 x 1E000 i.e. option B.
