Voltage Controlled Oscillator | Analog and Digital Electronics - Electrical Engineering (EE) PDF Download

A voltage controlled oscillator (VCO) is defined as an oscillator whose output frequency is controlled by an input voltage. It can produce a wide range of frequencies, from a few Hertz to hundreds of Giga Hertz, based on the input DC voltage.

Frequency Control in Voltage Controlled Oscillator

Many forms of VCOs are generally used. It can be of RC oscillator or multi vibrator type or LC or crystal oscillator type. However; if it is of RC oscillator type, the oscillation frequency of output signal will be in inversely proportional to capacitance as

Voltage Controlled Oscillator | Analog and Digital Electronics - Electrical Engineering (EE)

In the case of LC oscillator, the oscillation frequency of output signal will beVoltage Controlled Oscillator | Analog and Digital Electronics - Electrical Engineering (EE)
So, we can say that as the input voltage or control voltage increases, the capacitance get reduced. Hence, the control voltage and frequency of oscillations are directly proportional. That is, when one increases, the other will increase.
Voltage Controlled Oscillator | Analog and Digital Electronics - Electrical Engineering (EE)

The figure above represents the basic working of voltage controlled oscillator. Here, we can see that at nominal control voltage represented by VC(nom), the oscillator works at its free running or normal frequency, fC(nom). As the control voltage decreases from nominal voltage, the frequency also decreases and as the nominal control voltage increases, the frequency also gets higher.
Varactors diodes, which are variable capacitance diodes available in different ranges, are used to achieve variable voltage. In low-frequency oscillators, the charging rate of capacitors is changed using a voltage controlled current source.


Voltage Controlled Oscillator | Analog and Digital Electronics - Electrical Engineering (EE)

Types of Voltage Controlled Oscillator

The VCOs can be categorized based on the output waveform:

  • Harmonic Oscillators
  • Relaxation Oscillators

Harmonic Oscillators

The output waveform produced by harmonic oscillators is sinusoidal. This can often referred as linear voltage controlled oscillator. The examples are LC and Crystal oscillators. Here, the capacitance of the varactor diode is varied by the voltage which is across the diode. This in turns alters the capacitance of the LC circuit. Hence, the output frequency will change. Advantages are frequency stability with reference to power supply, noise and temperature, Accuracy in control of frequency. The main drawback is this type of oscillators cannot be implemented effortlessly on monolithic ICs.

Relaxation Oscillators

The output waveform produced by harmonic oscillators is saw tooth. This type can give a large range of frequency using reduced quantity of components. Mainly it can be used in monolithic ICs. The relaxation oscillators can possess the following topologies:

  • Delay-based ring VCOs
  • Grounded capacitor VCOs
  • Emitter-Coupled VCOs

Here; in delay-based ring VCOs, the gain stages are attached together in a ring form. As the name implies, the frequency is related to the delay in every single stage. The second and third type VCOs works almost similarly. The time period taken in each stage is directly related to the charging and discharging time of capacitor.

Working Principle of Voltage Controlled Oscillator (VCO)

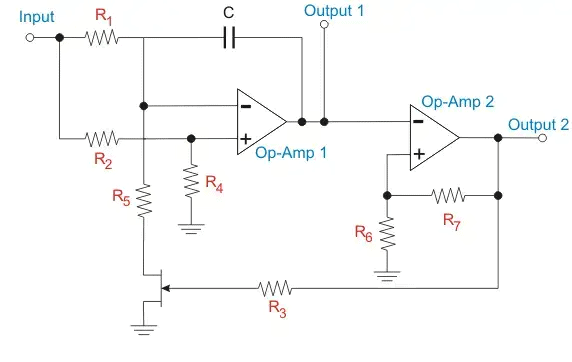

VCO circuits can be designed by means of many voltage control electronic components such as varactor diodes, transistors, Op-amps etc. Here, we are going to discuss about the working of a VCO using Op-amps. The circuit diagram is shown below.
Voltage Controlled Oscillator | Analog and Digital Electronics - Electrical Engineering (EE)The output waveform of this VCO will be square wave. As we know the output frequency is related to the control voltage. In this circuit the first Op-amp will function as an integrator. The voltage divider arrangement is implemented here. Because of this, the half of the control voltage that is given as input is given to the positive terminal of the Op-amp 1. The same level of voltage is maintained at the negative terminal. This is to sustain the voltage drop across the resistor, R1 as half of the control voltage.
When the MOSFET is in on condition, the current flowing from the R1 resistor passes through the MOSFET. The R2 have half the resistance, same voltage drop and twice the current as that of R1. So, the extra current charges the connected capacitor. The Op-amp 1 should provide a gradually increasing output voltage to supply this current.
When the MOSFET is in off condition, the current flowing from the R1 resistor passes through the capacitor, get discharged. The output voltage obtained from the Op-amp 1 at this time will be falling. As a result, a triangular waveform is generated as the output of Op-amp 1.
The second Op-amp functions as a Schmitt trigger. It takes the triangular wave from the first Op-amp as input. If this input voltage exceeds the threshold level, the output of the second Op-amp will be VCC. If it is below the threshold, the output will be zero, resulting in a square wave output.
Example of VCO is LM566 IC or IC 566. It is in fact an 8 pin integrated circuit which can produce double outputs-square wave and triangular wave. The internal circuit is represented below.
Voltage Controlled Oscillator | Analog and Digital Electronics - Electrical Engineering (EE)

Applications of Voltage Controlled Oscillator

  • Function generator
  • Phase Locked Loop
  • Tone generator
  • Frequency-shift keying
  • Frequency modulation
