Q1: A prismatic fixed-fixed beam, modelled with a total lumped-mass of 10 kg as a single degree of freedom (SDOF) system is shown in the figure. [2021, Set-2]
If the flexural stiffness of the beam is 4π2kN/m, its natural frequency of vibration (in Hz, in integer) in the flexural mode will be _______
Ans: 10 to 10
Sol: Give Data:
m = 10 kg
K = 4π2 x 103
Natural frequency,
Q2: Employ stiffness matrix approach for the simply supported beam as shown in the figure to calculate unknown displacements/rotations. Take length, L = 8 m; modulus of elasticity, E = 3 × 10 4 N/nm 2 ; moment of inertia, I = 225 × 1 0 6 m m 4
[2021, Set-1]
Ans: 100 to 130
Sol:
By stiffness matrix method
Step-1 : Generation of stiffness matrix
Column-1

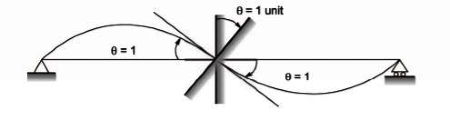

k11 =

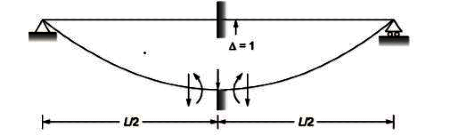

k21 =
Column-2
Stiffness matrix [k] =
Step-2: Calculation of unknown Nodal displacements (ΔBθB)
Using [P] = [k] [Δ]
⇒
On solving
∴
= 118. 519 mm ≃ 119 mm
