Introduction

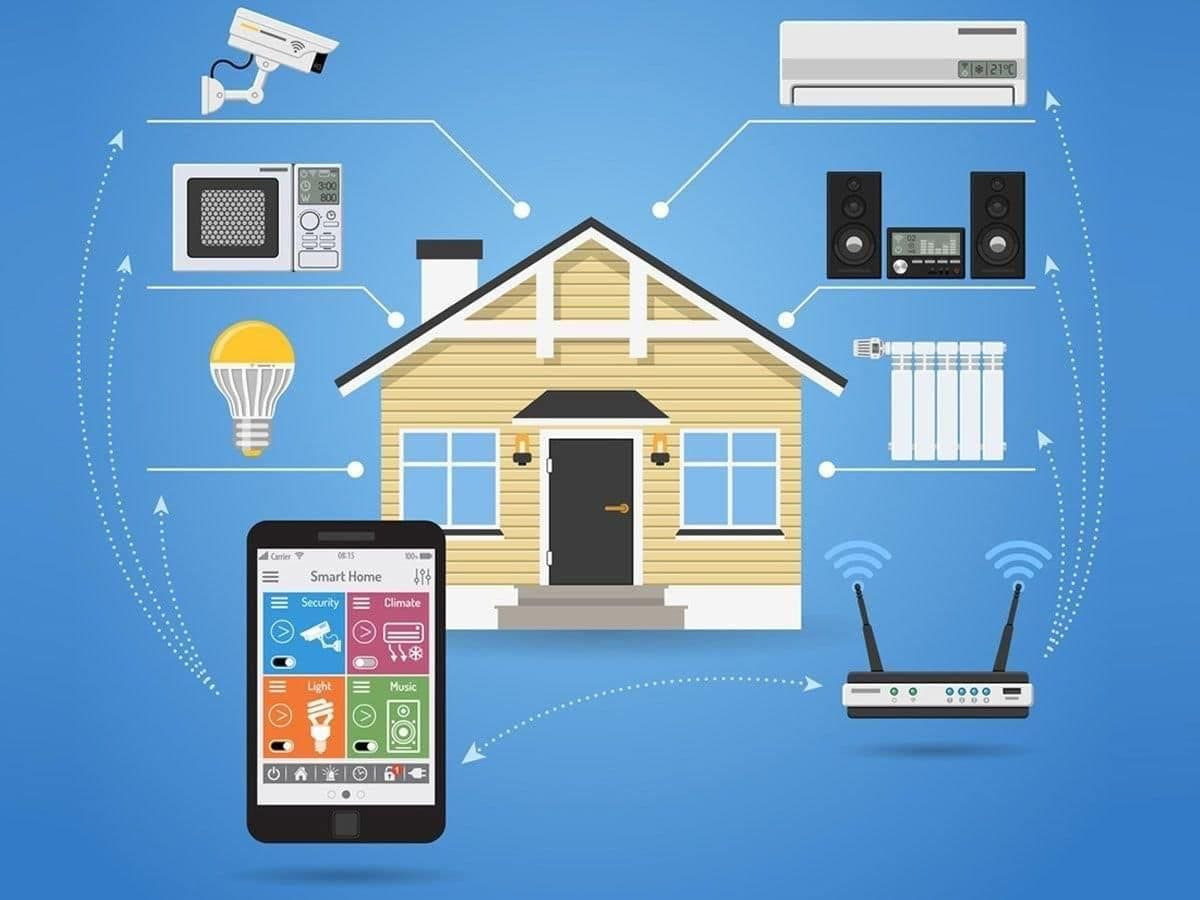

Home automation is the use of technology to operate devices at home automatically. Instead of switching things on and off by hand, automation uses sensors, controllers, and simple computer programmes. It helps save energy, reduces effort, and improves comfort. This chapter teaches you how automation works, the components used, and how to make simple automation systems.

What is Automation?

• Automation means controlling everyday devices automatically with the help of technology.
• It uses sensors, controllers, and programmes to work independently.
• Example: In a classroom, lights and fans can automatically switch off using motion sensors when no one is inside.
• Automatic irrigation system: A soil moisture sensor turns the water pump on when the soil is dry and off when moisture is enough.

Automation in Nature

• Human body functions like heartbeat, breathing, and digestion happen automatically.
• Nature also works in an automated way:
  • Sunrise and Sunset – happen daily.
  • Water Cycle – evaporation, cloud formation, and rainfall happen naturally.
  • Animal Instincts – birds migrate, flowers bloom, bees build honeycombs automatically.
• Inspiration for humans to design automation systems.

Journey of Automation

• Water Clocks and Sundials: Measured time using water flow and sun’s position.
• Mechanical Clocks: Worked using gears and springs.
• Early Smart Machines: Jacquard Loom, Steam Engine.
• Electronic Devices: Elevators, calculators using electricity and computers.
• Smart Homes & Robots: Use of sensors, Internet, and robots for automation.
• AI-Powered Smart Cities: AI manages transport, health, and energy for efficiency.

What will I be able to do?

• Identify electronic components used in automation systems.
• Read and draw electronic circuits.
• Design an automation system for home or school.
• Select sensors and programme them.
• Install and test automation systems.

What will I need?

Electrical and Electronic Components

• Breadboard – Used to connect components without soldering.
• Microcontroller – Example: Arduino Uno, Raspberry Pi.
• LED (Light Emitting Diode) – Emits light when electricity passes through.
• LCD Display – Shows messages, sensor readings, and data.
• Buzzer – Produces sound when electricity flows.
• Battery – Provides DC power to circuits.
• Printed Circuit Board (PCB) – Connects components permanently.
• Adapter – Converts AC power to DC power for devices.
• Arduino Cable – Connects Arduino to PC.
• Jumper Wires – Connects components on breadboard.
• Digital Multimeter – Measures voltage, current, resistance.

Sensors

• Motion Detection Sensor – Detects movement by sensing infrared radiation.
• Sound Sensor – Detects sound vibrations and converts them into signals.
• Temperature Sensor – Measures air, water, or surface temperature (e.g., DHT11).

Other Tools

• Soldering iron, soldering metal and flux
• Screwdriver, wire stripper
• Multimeter
• Laptop or computer

Safety Precautions

• Avoid short circuits and loose connections.
• Use safety goggles while soldering, avoid fumes.
• Use tools like cutters carefully.
• Keep workspace organised and clean.
• Be careful on the Internet; do not share personal details.

What do I need to know before I start?

• Basic knowledge of circuits and diagrams.
• Understanding electronic components and their symbols:
  • Battery – Provides energy
  • Resistance – Limits current flow
  • Switch – Controls circuit
  • Diode – Controls current direction
  • LED – Emits light
  • Capacitor – Stores energy
  • Earthing – Provides safe path for excess current
• Important: Household appliances use 230V AC. Only use DC batteries for beginner circuits. Never connect directly to AC mains.

How Automation Works?

• Automation cycle has 3 steps:
• Input (Sensing): Sensors detect changes like motion, light, or temperature.
• Processing (Decision): Microcontroller analyses input and decides action.
• Output (Action): Devices like lights, motors, buzzers act on the command.
• Microcontroller is the brain; instructions given to it are called programmes.

Microcontrollers

• Examples: Arduino Uno, Raspberry Pi Pico.
• Functions:
  • Connects input (sensors) and output devices (motors, LEDs, buzzers).
  • Has pins for power, ground, digital and analog signals.
  • USB port for programming.
  • Reset button to restart programme.

Output Devices

• LEDs
• Buzzers
• Motors (DC, Servo, Stepper)
• Relays
• Speakers
• LCD screens

Making Simple Circuits

• Breadboard is used for prototyping circuits without soldering.
• Example: Blinking LED circuit using Arduino Uno.
• Programme written using Arduino IDE (Blink programme).
• You can control LED blink time by changing delay values.

Automation Cycle Example

• Automatic Street Light:
  • Input – LDR sensor senses light.
  • Process – Microcontroller checks light intensity.
  • Output – Light turns ON in darkness.
• Automatic Water Sprinkler – Uses moisture sensor to control water pump.

Creating Automation Systems

• Smart light system: Lights turn ON when motion is detected.
• Examples of other systems:
  • Automatic plant watering system
  • Obstacle detection system
  • Fire alarm system
  • Automatic gate opening system
  • Theft detection alarm
  • Smart fan system

What Else Can I Do?

• Use batteries to power microcontrollers independently from computer USB.
• Lithium-Ion batteries and DC connectors are used.
• Make casing using 3D printer or other materials.
