 Introduction



The slides cover the following topics:

1. Vectors and Matrices

2. Matrix Calculations

3. Loops

4. for Loop

5. while Loop

6. Logical Operations

7. if statement

8. if-else statement

9. Functions in Matlab

10. Plotting in Matlab



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



Vectors and Matrices

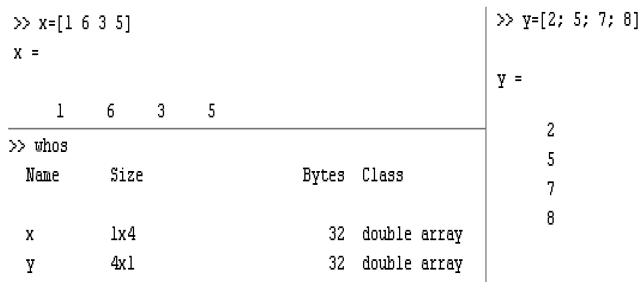

•In MATLAB a vector can be defined as row vector or as a column vector.

•A vector of length n can be visualized as matrix of size 1xn or nx1.
Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



Vectors and Matrices

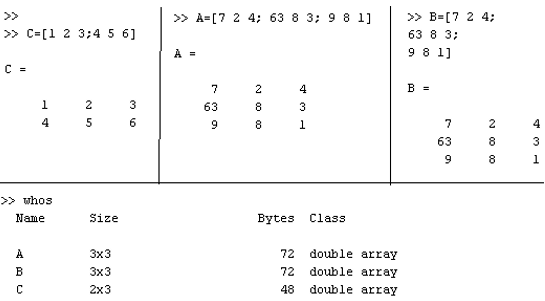

•Matrices can be of different sizes, either square matrices of size NxN or rectangular NxM.

•Note that vectors are special case of matrices.

Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide

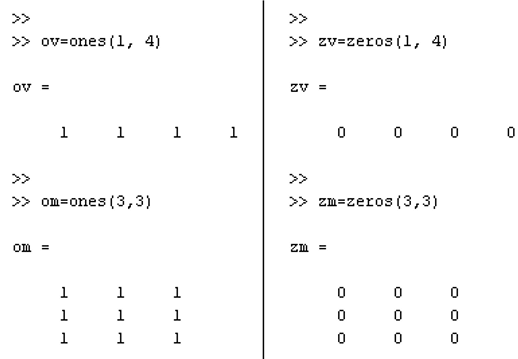

Some Special Vectors and Matrices



Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide

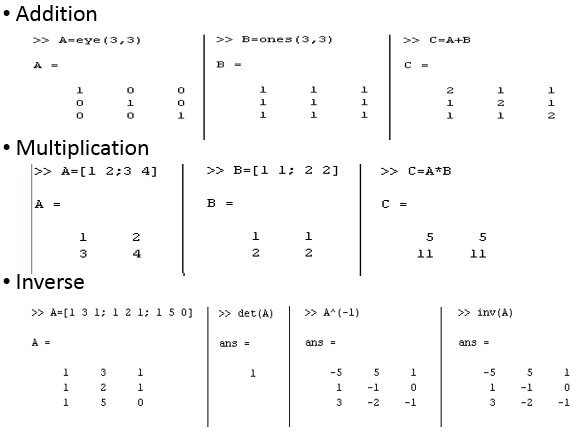

Matrix Calculations



Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



Solving Simultaneous Equations Ax=b

•A=matrix of coefficients,

•x = vector of variables,

•b = vector of values.

Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



Loops



•Two different types of loops exist in MATLAB.

  • for   and
  • while

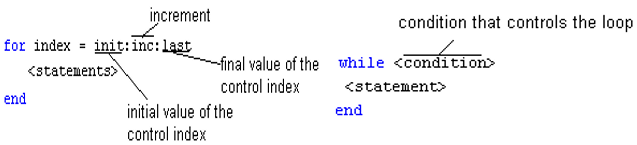

•Their structure is as shown here


Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



for loop

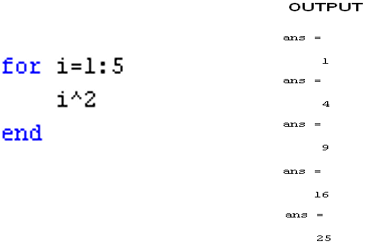

•A simple for loop to calculate and display squares of numbers from 1 to 5.

Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



for loop (contd.)

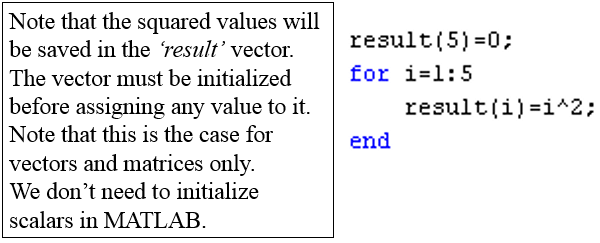

•We can write the same for loop with some change. Now we are saving the results in a vector named ‘result’.


Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



for loop (contd.)



•The control index of the for loop shown in the previous slides was incremented by ‘1’. We can increment the control index by any arbitrary value as required.
•In the following example odd numbers from 1 to 9 are printed.


Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



while loop



•While loop continue to execute if the given condition is true.

•A condition is true if it is not equal to ‘0’.

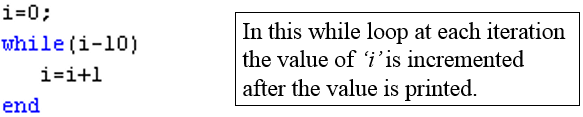

•A simple while loop to display numbers from 1 to 10 is shown here.



Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



Logical Operators



•AND, OR, and INVERT logical operations can be performed in MATLAB.

•The symbols used for these operators are ‘&&’ , ‘||’, and ‘~’ respectively for AND, OR, and INVERT.

•A logical operation always results in a ‘1’ or ‘0’.



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



Some more logical operators

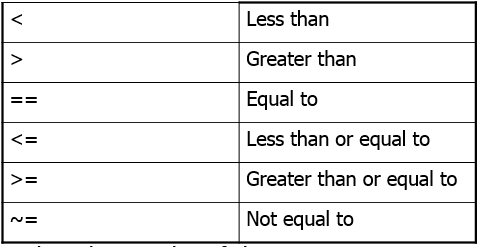

•Other logical operators in MATLAB include



Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)
•Note that the results of these operations are also either ‘1’ or ‘0’.

Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide

Examples: logical operations

•Lets say, a=1, b=2, and c=1. Then,

•A<b results in TRUE I.e. ‘1’

•A>b results in FALSE I.e. ‘0’

•A==b results in FALSE I.e. ‘0’

•A==c results in TRUE I.e. ‘1’

•A==c && a<=b results in ‘1’.


•Several examples can be used to show the usage of these operators.


Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



while loop revisited



•Now we can show the usage of these logical operations in the while loop as condition.

•Say a=1, then the following code results in the execution of loop until the condition a<b gets FALSE.


Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



if statement



if statement checks whether the condition given to it is TRUE or FALSE.

Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)

•If the condition evaluates to TRUE the <statements> are executed otherwise not.

•Unlike the for and while loops the <statements> inside the if statement are executed only once.


Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



if-else statement



•If-else is used if we want to perform two different tasks depending upon the condition is TRUE or FALSE.


Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



We wish to use “if” and “else” statement to decide upon if the input integer is an odd or an even number. The Matlab code for the purpose is shown below:

Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



Functions in Matlab

•Functions are actually computer routines(programs) to perform specific task.

•Matlab is rich in built-in function

•A function is called, user gives specific input(s) to the function, which generates the required output(s).


Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide


Example of built-in functions

•Our objective is to calculate mean or average of certain vector ‘x’.

•We call the built in function “mean” of Matlab and give ‘x’ as an input to the function.

•The mean is calculated and is stored in variable ‘y’.

Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)

Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)

Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)  Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



•We can also built our own functions and call them when required.

•The functions are the m-files.

•For example for a given quadratic equation we wish to calculate the roots of equation. So we build our own function “call” and use the quadratic formula to solve for x1 and x2.

Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)

Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide


•In our main program the function is called and the inputs ‘a’, ‘b’ and ‘c’ are given to the function which calculates the required roots


Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



Plotting in Matlab

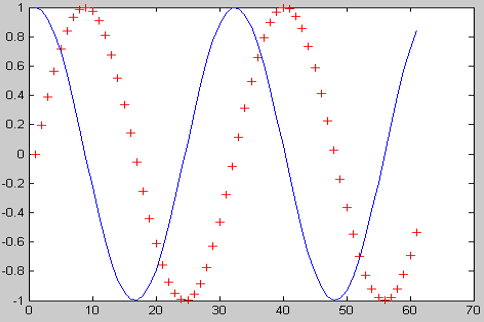

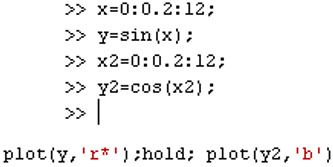

•Matlab uses “plot” command to plot the curves with different line style and colors

•Example follows:



Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide



Chapter - Matlab Vectors and Matrices and Basic Instructions, PPT, ADC, Semester, Engineering - Computer Science Engineering (CSE)



Matlab Vectors and Matrices and Basic Instructions---------------------------Next slide
