Embedded Computer Systems
Lecture Notes
Data Acquisition
and
Digital Signal Processing

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Data Acquisition

Data acquisition is the sampling of the real world to generate data that can be manipulated by a computer.
Sometimes abbreviated DAQ or DAS, data acquisition typically involves acquisition of signals and waveforms and processing the signals to obtain desired information.
The components of data acquisition systems include appropriate sensors that convert any measurement parameter to an electrical signal, which is acquired by data acquisition hardware.

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Data Acquisition

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Data Acquisition and Control

􀁺Physical systems (real-world phenomena)
􀁺Transducers and Actuators
􀁺Signal Conditioning equipment
􀁺Data Acquisition & Control Hardware
􀁺Software

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Analog-to-Digital Conversion

Analog-to-digital conversion (ADC) and digital-toanalog conversion (DAC) are the processes that allow digital computers to interact with everyday signals: voltage, current, distance, velocity, temperature, altitude, force, acceleration, pressure etc.

Digital information is different from its analog counterpart in two respects:
- it is sampled
- it is quantized

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

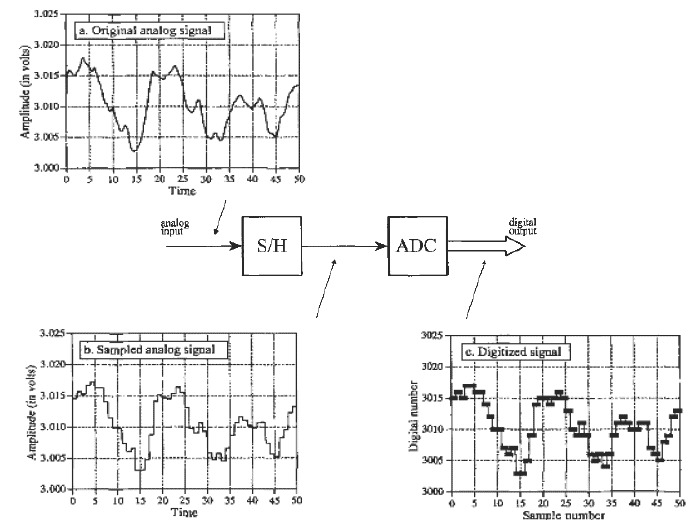

ADC Principles: S/H and Quantization

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

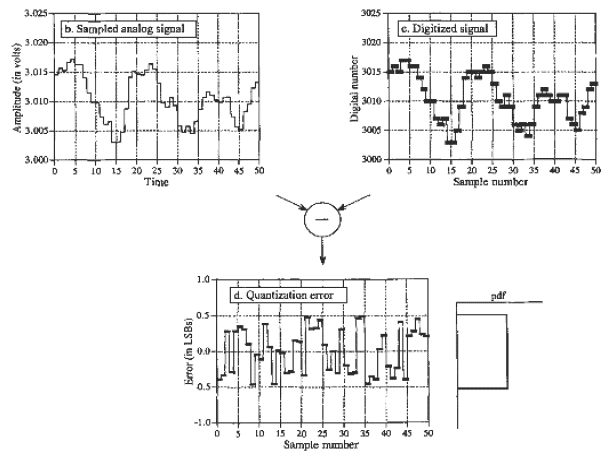

Quantization Error

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Analog-to-Digital Conversion

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Sampling Theory

Nyquist theorem:
Analog signal that has been digitized can be perfectly reconstructed
if the sampling rate was 1/(2W) seconds,
where W is the highest frequency in the original signal.

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

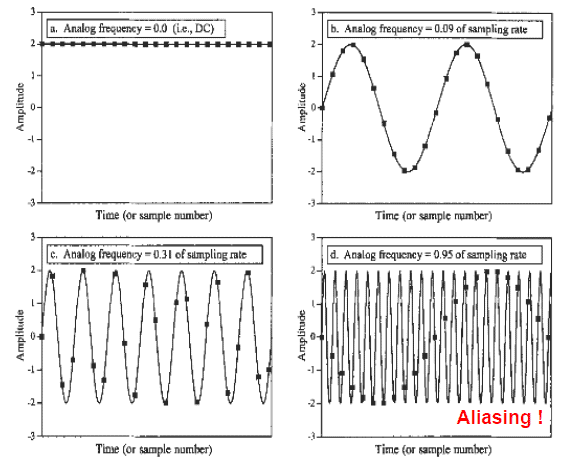

Sampling Theory

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

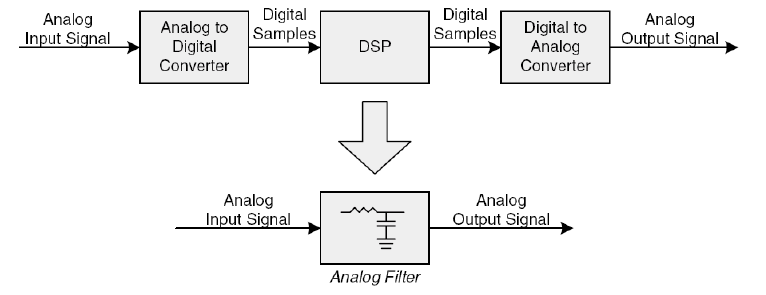

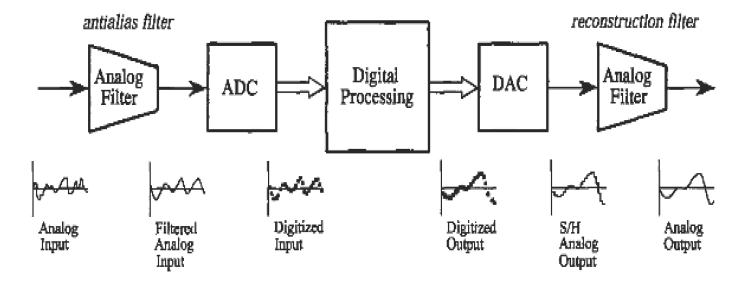

Using Analog Filters

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Basic A/D Architecture

􀁺 Flash ADC
􀁺 Succesive-approximation ADC
􀁺 Sigma-delta ADC

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

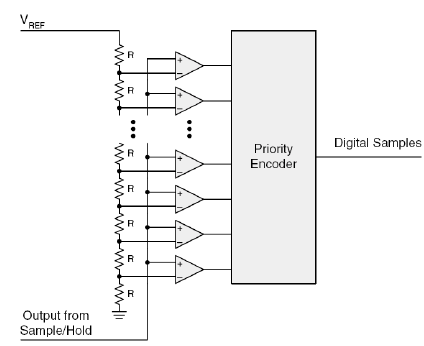

Flash ADC

• Requires 4095 parallel comparators for 12-bit.
• Very fast, conversion is done in one step.
• Complexity doubles with each added bit of resolution.

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Succesive-approximation ADC

􀁺 Uses an internal n-bit DAC
􀁺 Conversion logic is a simple n-bit counter
􀁺 N-bit ADC requires 2^n cycles to perform a conversion in worst case.

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

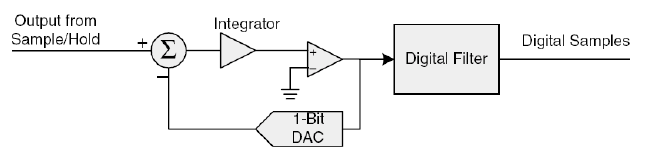

Delta-sigma ADC

• Requires 1-bit DAC: less susceptible to noise
• Requires high sampling rate, suitable for audio applications
• It has digital filter, so no need for expensive low-pass filters at input
• Resolution can be very high.

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

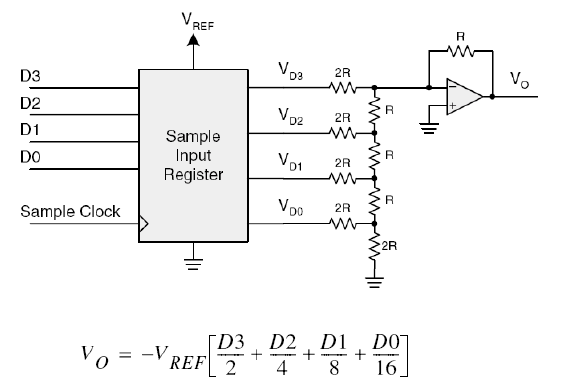

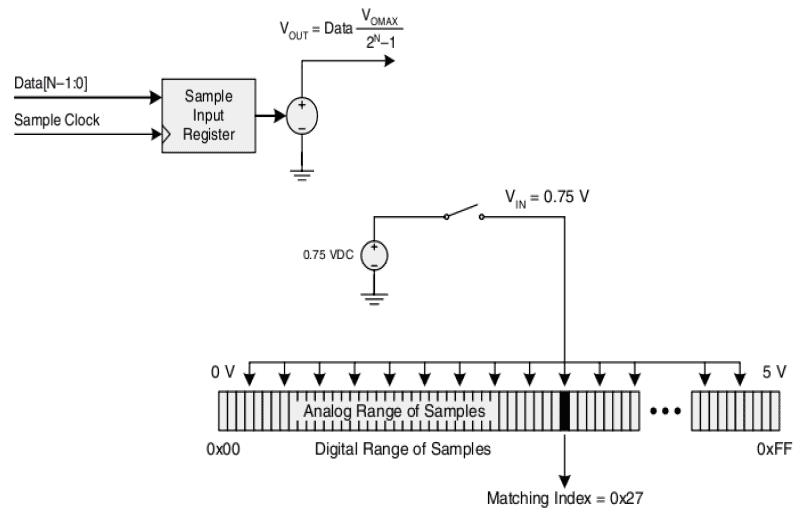

Digital-to-Analog Converter (DAC)

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Transducers

• Converts physical properties such as temperature, pressure, force etc. to electrical signals.

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

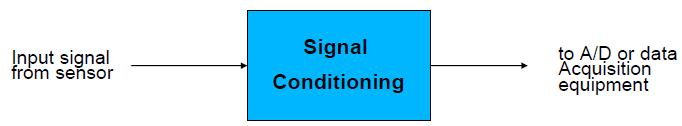

Signal Conditioning

􀁺 Amplifying
􀁺 Scaling
􀁺 Offsetting
􀁺 Filtering
􀁺 Linearization
􀁺 Isolation

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Digital Signal Processing

1) Specialized microprocessors (DSP)
2) Digital Signal Controllers (DSC)
3) FPGA, ASIC
4) Powerful general purpose microprocessors

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Example: Digital Filters

• Reproducable response
• Temperature insensitive
• Programmable

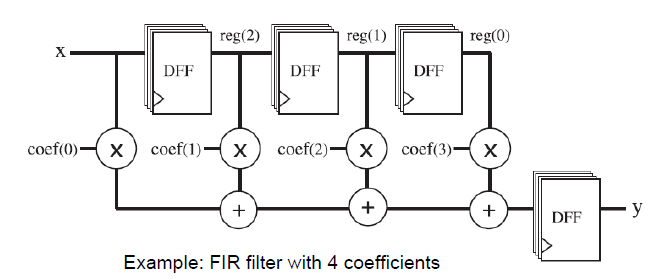

Example: FIR filter with 4 coefficients
• Unable to pass power
• Requires a power supply
• Frequency range limitations

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

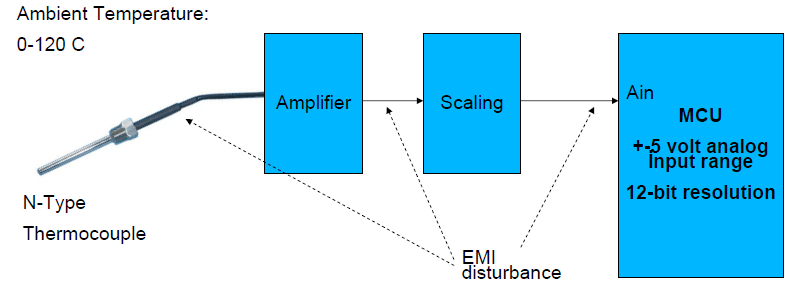

Case Study

Getting the most from an ADC means scaling the maximum signal from each sensor to match the maximum input of the ADC. Therefore, we have to use an amplifier along with a scaling circuit. We may left the noise filtering on the acquired temperature to the program

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

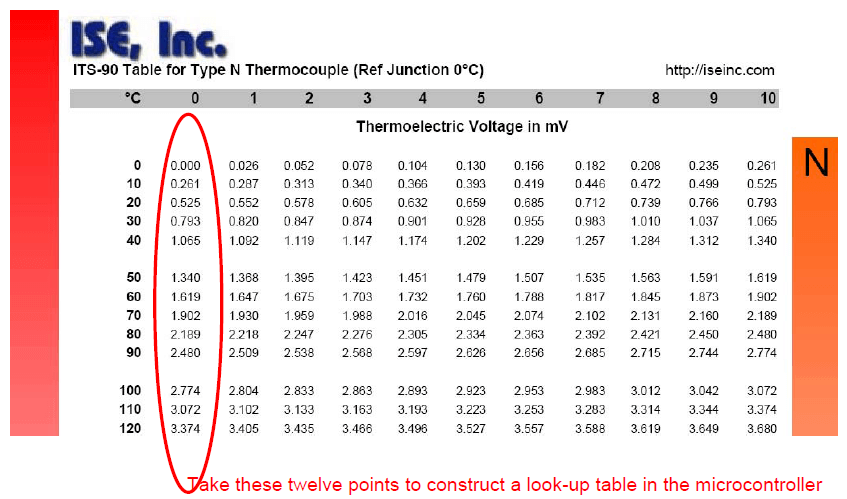

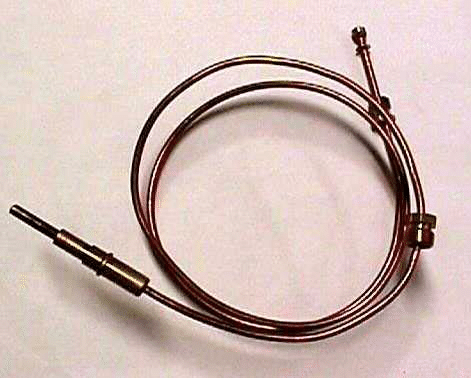

Table for Thermocouple

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

Linear Interpolation

f(3)=0+(3-0)(0.261-0)/(10-0)=0.0783
(In the table, f(3) is given as 0.078)
Calculate the output of N-type thermocouple at 3 °C.
We will use two points: (0, 0) and (10, 0.261).

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

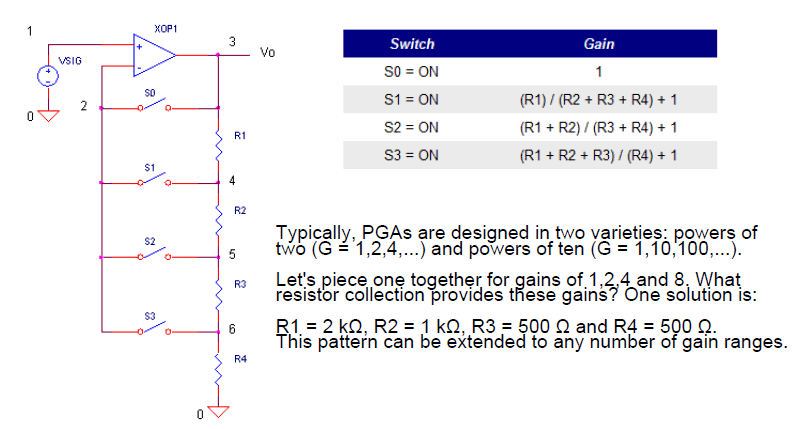

Programmable Gain Amplifier

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

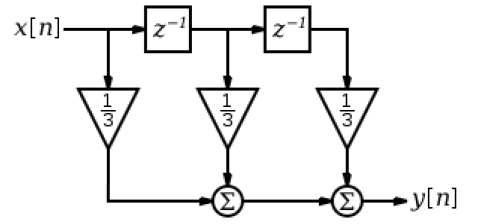

Digital Filtering

􀁺 A very simple FIR filter (moving average filter) attenuating the high frequencies:

Embedded Computer Systems ------------------------------------------Next Slide --------------- Tolga Ayav

A Solution


􀁺 Amplify the signal such that the output of the signal is approximately 10 volts at 120 C.
􀁺 Shift the signal 5 volts downwards.
􀁺 Implement a look-up table in the microcontroller
􀁺 Implement a digital Low Pass Filter to reduce EMI disturbance.
􀁺 Assume that ADC take the following samples


(Sampling rate is 10 ms):
− (2.81v, 2.94v, 2.68v, 2.56v, 2.78v, 2.12v, 2.48v, ...)
􀁺 What would be the current temperature according to your design?
