ISOMERISM IN COORDINATION COMPOUNDS

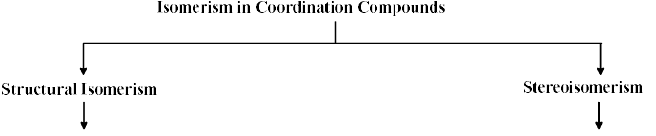

Isomers are the compounds with the same chemical formula but different arrangement of their constituent atoms and the phenomenon is called isomerism. Isomerism in Coordination compounds is classified into two types: structural or constitutional isomerism and stereoisomerism.

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry
Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry                                 Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry



Structural Isomerism : Isomers that have different bonding pattern between its atoms are called structural isomers.

(i)  Ionization Isomerism: Ionization isomers results from the exchange an anionic ligands within the coordination sphere with the counter ion outside the sphere. For example, violet [Co(NH3)5Br]SOand red [Co(NH3)5(SO4)]Br are ionization isomers.
These isomers can be easily differentiated by qualitative test for sulphate and bromide. For example, in aqueous solution [Co(NH3)5Br]SOgives white ppt. of BaSO4 on reaction with BaClwhereas it does not give any ppt. with AgNO3. This indicates that SO42– is present as counter ion outside the coordination sphere.

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

On the other hand, [Co(NH3)5(SO4)]Br gives light yellow ppt. of AgBr with AgNO3 and it does not give any ppt. with BaCl2. This indicates that Br- is present outside the coordination sphere.

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

These isomers can also be differentiated by IR spectroscopy. Some other examples of ionization isomerism are:

a. [Co(NH3)5Cl]SO4 and [Co(NH3)5(SO4)]Cl
b. [Co(NH3)5(NO3)]SO4 and [Co(NH3)5(SO4)]NO3
c. [Pt(NH3)4Cl2]Br2 and [Pt(NH3)4Br2]Cl2
d. [Co(en)2Cl(NO2)]SCN and [Co(en)2Cl(SCN)]NO2 and [Co(en)2(NO2)(SCN)]Cl



(ii) Hydration Isomerism: When there is exchange between the water molecules in coordination sphere and the water of hydration, then the resulting isomers are called hydrate isomers. For example, hydrate isomers of the compound having formula CrCl3.6H2O are:
[Cr(H2O)6]Cl3 (violet)
[Cr(H2O)5Cl](H2O)Cl2 (pale green)
[Cr(H2O)4Cl2](2H2O)Cl (dark green)

These isomers have different properties: a. These isomers have different colours.



b. The complexes can be distinguished by precipitation of the free chloride ion using aqueous silver nitrate. For example, when these isomers react with AgNO3 solution, the y give white ppt. of AgCl corresponding to One, two and three mole of chloride ion respectively.

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic ChemistryIsomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

c. On treating these complexes with conc. H2SOthe water of hydration is lost.

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic ChemistryIsomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic ChemistryIsomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry



(iii) Linkage Isomerism: Linkage isomers may arise when one or more of the ligands can coordinate to the metal ion in more than one way (ambidentate ligand), e.g. in [SCN]-, both the N and S atoms are potential donor sites.


[Co(NH3 )5 (SCN)]Cl2 and [Co( NH3 )5 ( NCS)]Cl2

Linkage Isomers



Other examples of linkage isomers are:

a. [Co(NH3)5(NO2)]2+ and [Co(NH3)5(ONO)]2+
b. [Co(en)2(NO2)2]+ and [Co(en)2(ONO)2]+
c.  [Pd(PPh3)2(SCN)2] and [Pd(PPh3),(NCS)2]

(iv)  Coordination Isomerism: Coordination isomers are possible only for salts in which both cation and anion are complex ions. These isomers arise from interchange of ligands between the two metal centres. For example,



a.  [Co(NH3)6][Cr(CN)6] and [Cr(NH3)6][Co(CN)6]
b. [Co(NH3)6][Co(NO2)6] and [Co(NH3)4(NO2)][Co(NH3)2(NO2)4]
c. [Pt (NH3)4 ][PtCl6] and [Pt (NH3)4 Cl2 ][PtCl4 ]

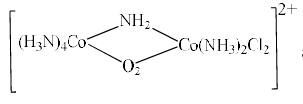

(v)  Coordination Position Isomerism: This isomerism exists in bridging complexes. In bridging complexes the exchange of non-bridging ligands between two metal cations give rise to coordination position isomerism.
For example,

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic ChemistryIsomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

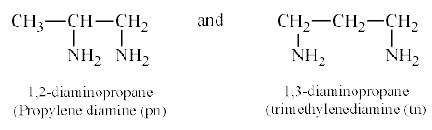

(vi) Ligand Isomerism: This isomerism takes place in complexes in which ligand itself exists in two or more isomeric form. For Example,

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

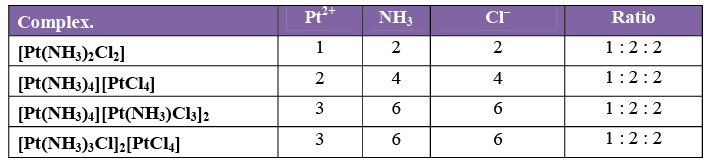

(vii)  Polymerization Isomerism: These isomers have same empirical formula instead of molecular formula. All these isomers have same ratio of metal atoms and the ligand in them. For example, Coordination polymers of Pt2+ ion

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

 Stereoisomerism Stereoisomers

are isomers that differ only in spatial arrangement of ligands coordinated to metal cation/atom.
These are of two types:

(a)  Geometrical or Cis/Trans Isomerism
(b) Optical Isomerism

(a) Geometrical Isomerism:

Stereoisomers in which the orientations or relative positions of the ligands around the metal cation is different are called geometrical isomers and this phenomenon is geometrical isomerism. For example,

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

These isomers are also called cis-trans isomers.

Geometrical isomers cannot be interconverted without breaking of M-L bonds. Geometrical isomerism is most common in complexes having coordination no. 4 and 6. The complexes which exhibit coordination no. 2 and 3 do not exhibit geometrical isomerism. Now, we will discuss geometrical isomerism in each type of complexes.

Tetrahedral Complexes: Tetrahedral complexes do not exhibit geometrical isomerism whether all the ligands are same or different because all the ligands in this geometry are at adjacent position relative to each other.

Square Planar Complexes: These are of different types depending upon the nature and type of ligands. Complexes can be either ionic of neutral. The charge does not effect on their property of exhibiting geometrical isomers. For convenience, we will take neutral complexes.

  •  [Ma4], [Ma3b], [M(AA)2], [M(AA)ab] and [M(AA)a2] type square planar complexes do not exhibit geometrical isomerism because all the possible spatial arrangement of the ligands around the metal cation is the same.

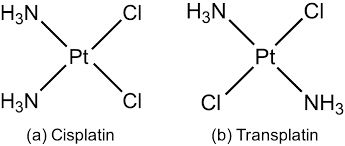

  • [Ma2b2] type complexes: These types of complexes exist as cis and trans isomers.
    For example, [Pt(NH3)2Cl2], [Pt(py)2Cl2] etc.

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry   Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

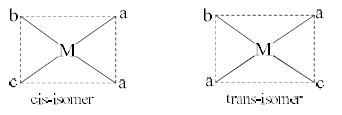

  • [Ma2bc]: These types of complexes also exist as cis and trans iso mers.
    Examples are, [Pt(NH3)2(NO2)Cl], [Pt(NH3)2(Py)Cl]+, [Pt(Py)2(NH3)Cl] etc.

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

  •  [Mabcd]Three geometrical isomers are possible for these type of complexes.

Examples are, [Pt(Py)(NH3)ClBr], [Pt(C2H4 )(NH3 )ClBr] and [Pt(Py)(NH3)(NH2OH)(NO2 )]+

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic ChemistryIsomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic ChemistryIsomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

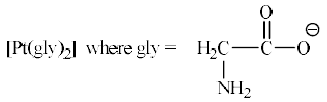

  • [M(AB)2]: Two geometrical isomers are possible.

for Examples :

  Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

  •  Bridged Binuclear Square Planar Complexes of [M2a2b4] type: These typ es of complexes can exist in three isomeric form namely, cis, trans and unsymmetric.

For example [Pt (PEt3) Cl2]2

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

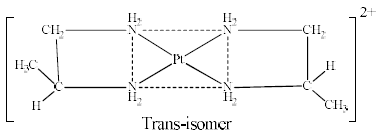

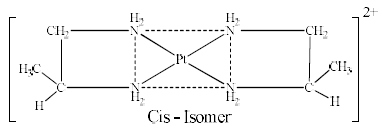

  • Square planar complexes with symmetric bidentate ligands carrying one or more substituents can exist as geometrical isomers. For example, [Pt(pn)2]2+ exist in cis- and trans- isomeric forms in which methyl groups are cis- and trans- respectively with respect to the median plane of the ring atoms.

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

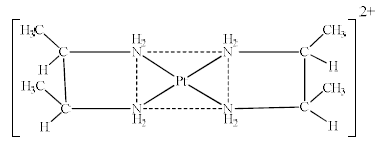

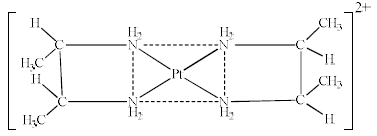

Another example is that having bidentate ligands with two methyl substituents as shown below:

 Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry



Octahedral Complexes: In an octahedral complex a metal cation will present in the centre of an octahedron and the six ligands occupy the six corners numbered from 1 to 6 as shown below:

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry



In cis isomers the two ligands occupy the corners of octahedral adjacent to each other. In cis isomers the same ligands occup y either of the positions (1, 2), (1, 3), (1, 5), (1, 6), (2, 3), (2, 4), (2, 6), (3, 4), (3, 5), (4, 5), (4, 6), (5, 2), (6, 3), or (6,5).
In trans isomers these ligands are lying opposite to one another on a straight line which passes through the centre of the octahedron. In trans isomer the two ligand under consideration will occupy either of the positions (1, 6), (2, 4) and (3, 6).

[Ma6], [Ma5b] and [M(AA)3] (where AA is a symmetric bidentate ligand) complexes will not have geometrical isomers because all the corners of regular tetrahedron are equivalent.

The following type of octahedral complexes exhibit geometrical isomerism:

[Ma4b2]: Two geometrical isomers.
For examples:  [Co(NH3 )4Cl2 ]+ , [Co(NH3 )4 (NO2 )]+

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic ChemistryIsomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry



[Ma4bc]Two isomers (cis and trans).
For examples: [Co(NH3)4 (H2O)Cl] , [Co(NH3)4 (Py)Cl)]2+

Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic ChemistryIsomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry



The document Isomerism In Coordination Compounds-1 - Coordination Chemistry | Inorganic Chemistry is a part of the Chemistry Course Inorganic Chemistry.
All you need of Chemistry at this link: Chemistry
48 videos|92 docs|41 tests

Up next

FAQs on Isomerism In Coordination Compounds-1 - Coordination Chemistry - Inorganic Chemistry

1. What is isomerism in coordination compounds?
Ans. Isomerism in coordination compounds refers to the phenomenon where two or more compounds have the same chemical formula but different structural arrangements. These isomers can differ in terms of coordination number, coordination geometry, or both. Isomerism in coordination compounds plays a crucial role in understanding the properties and behavior of these compounds.
2. What are the different types of isomerism in coordination compounds?
Ans. There are several types of isomerism in coordination compounds, including: - Geometric isomerism: This type of isomerism arises due to the different possible spatial arrangements around a metal center. It can be classified as cis-trans isomerism or facial-meridional isomerism. - Linkage isomerism: In this case, the coordination compound can have different ligands attached to the central metal atom through different atoms. For example, in the compound [Co(NH3)5(NO2)]Cl2, the nitrite ligand can bind either through nitrogen or oxygen. - Coordination isomerism: This occurs when the anions and/or cations in a coordination compound are exchanged between the coordination sphere and the outer sphere. - Ionization isomerism: In this form of isomerism, the ligand and counterion interchange positions within a coordination compound. - Stereoisomerism: This type of isomerism arises when the spatial arrangement of ligands around the metal center leads to different isomers. It includes geometric isomerism, optical isomerism, and structural isomerism.
3. How does geometric isomerism occur in coordination compounds?
Ans. Geometric isomerism in coordination compounds arises when there are different possible spatial arrangements around a metal center. It can occur in compounds with coordination number 4 or higher, where ligands are attached to the central metal atom through different atoms. For example, in a square planar complex, if two ligands are arranged adjacent to each other, it is called a cis isomer, whereas if they are opposite to each other, it is called a trans isomer. Similarly, in octahedral complexes, cis and trans isomers can be formed based on the arrangement of ligands. Geometric isomerism is important as it influences the physical and chemical properties of coordination compounds, such as their stability, reactivity, and biological activity.
4. What is the significance of isomerism in coordination compounds?
Ans. Isomerism in coordination compounds is significant for several reasons: - It helps in understanding the structural diversity of coordination compounds and provides insights into their stability, reactivity, and physical properties. - Isomerism plays a crucial role in the design and development of coordination compounds with specific properties, such as catalytic activity, magnetic behavior, or luminescence. - Different isomers of coordination compounds can exhibit different biological activities, making them important in medicinal chemistry. - Isomerism allows for the study of the effect of different ligands and their spatial arrangement on the overall properties of a coordination compound. - Understanding isomerism in coordination compounds is essential for the proper identification, characterization, and naming of these compounds in chemical research and analysis.
5. How is isomerism in coordination compounds determined experimentally?
Ans. Isomerism in coordination compounds can be determined experimentally through various techniques, including: - Spectroscopy: Techniques such as infrared spectroscopy, UV-Vis spectroscopy, and NMR spectroscopy can provide valuable information about the structural arrangement of ligands in a coordination compound. - X-ray crystallography: This technique allows for the determination of the exact three-dimensional arrangement of atoms in a crystal structure, providing insights into the isomeric forms of coordination compounds. - Magnetic susceptibility measurements: By studying the magnetic behavior of coordination compounds, it is possible to identify the presence of different isomeric forms. - Chemical reactions: Different isomers of coordination compounds may exhibit different reactivity patterns, allowing for their differentiation through chemical reactions and transformations. These experimental techniques, combined with theoretical calculations, help in the identification and characterization of different isomeric forms in coordination compounds.
