6.  n-FACTOR CALCULATION

6.1  Acids

Acids are the species which furnish H⁺ ions when dissolved in a solvent. For acids, n-factor is defined as the number of H⁺ ions replaced by 1 mole of acid in a reaction. Note that the n-factor for acid is not equal to its basicity; i.e. the number of moles of replaceable H⁺ atoms present in one mole of acid.

For example, n-factor of HCl = 1

n-factor of HNO₃ = 1

n-factor of H₂SO₄ = 1 or 2, depending upon extent of reaction it undergoes.

H₂SO₄ + NaOH → NaHSO₄ + H₂O

Although one mole of H₂SO₄ has 2 replaceable H atoms but in this reaction H₂SO₄ has given only one H⁺ ion, so its n-factor would be 1.

H₂SO₄ + 2NaOH → Na₂SO₄ + 2H₂O

The n-factor of H₂SO₄ in this reaction would be 2 .

Similarly ,        n-factor of H₂SO₃ = 1 or 2

n-factor of H₂CO₃ = 1 or 2

n-factor of H₃PO₄ = 1 or 2 or 3

n-factor of H₃PO₃ = 1 or 2 because one of the H is not replaceable in H₃PO₃ . this can be seen using it structure  . The H atoms which are linked to oxygen are replaceable whicle the H atom linked directly to central atom (P) is non replaceable.

n-factor of H₃BO₃ = 1

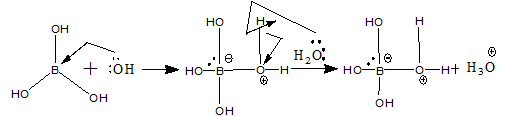

In H₃BO₃ although all three H are linked to oxygen, yet all three H are not replaceable. Here, boron atom is electron deficient, so it acts as a Lewis Acid . When H₃BO₃ is added to water , then oxygen atom of H₂O through its lone pair attack the boron atom, as follows

The net reaction is H₃BO₃ + 2H₂O → [B(OH)₄]^- + H₃O⁺ .

Thus, one mole of H₃BO₃ in solution gives only one mole of H⁺ , so its n-factor is 1.

6.2 Bases

Bases are the species, which furnish OH^- ions when dissolved in a solvent. For bases, n-factor is defined as the number of OH^- ions replaced by 1 mole of base in a reaction. Note that n-factor is not equal to its acidity i.e. the number of moles of replaceable OH^- ions present in 1 mole of base.

For example, n-factor of NaOH = 1

n-factor of Zn(OH)₂ = 1 or 2

n-factor of Ca(OH)₂ = 1 or 2

n-factor of Al(OH)₃ = 1 or 2 or 3

n-factor of NH₄(OH) = 1

6.3 SALTS WHICH REACT SUCH THAT NO ATOM UNDERGOES CHANGE IN

OXIDATION STATE

The n-factor for such salts is defined as the total moles of cationic / anionic charge replaced in one mole of the salt. For the reaction,

Na₃PO₄ + BaCl₂ → NaCl + Ba₃(PO₄)₂

To get one mole of Ba₃(PO₄)₂, two moles of  Na₃PO₄ are required, which means six moles of Na⁺ are completely replaced by 3 moles of Ba²⁺ ions. So, six moles cationic charge is replaced by 2 moles of Na₃PO₄ , thus each mole of Na₃PO₄ replaces 3 moles of cationic charge. Hence, n-factor of Na₃PO₄ in this reaction is 3.

6.4 SALTS WHICH REACT IN A MANNER THAT ONLY ONE ATOM UNDERGOES

            CHANGE IN OXIDATION STATE AND GOES IN ONLY ONE PRODUCT

The n-factor of such salts is defined as the number of moles of electrons exchanged
( lost or gained )by one mole of the salt.

Let us have a salt A_aB_b in which oxidation state of A is +x. it changes to a compound, which has atom D in it. The oxidation state of A is A_cD be +y.

A_a^+xB_b →A_c^+yD

The n-factor of A_aB_b is calculated as n = |ax - ay|

To calculate n-factor of a salt of such type, we take one mole of the reactant and find the number of mole of the element whose oxidation state is changing. This is multiplied with the oxidation state of the element in the reactant which gives us the total oxidation state of the element in the reactant. Now we calculate the total oxidation state of the same element in the product for the same number of mole of atoms of that element in the reactant. Remember that the total oxidation state of the same element in the product is not calculated for the number of mole of atoms of that element in the product.

For example, let us calculate the n-factor of KMnO₄ for the given chemical change.

In this reaction, oxidation state of Mn changes from +7 to +2 . Thus, KMnO₄ is acting as oxidizing agent, since it is reduced.

n-factor of KMnO₄

Similarly,

n-factor of KMnO₄ =

and ,

n-factor of KMnO₄ =

It can be seen that in all the above chemical changes, KMnO₄ is acting as oxidizing agent, yet its n-factor is not same in all reactions. Thus, the n-factor of a compound is not fixed, it depends on the type and the extent of reaction it undergoes.

6.5 SALTS WHICH REACT IN A MANNER THAT ONLY ONE ATOM UNDERGOES CHANGE IN OXIDATION STATE BUT GOES IN TWO PRODUCTS WITH THE  SAME OXIDATION STATE

Let us have a salt A_aB_b in which oxidation state of A is –x. It undergoes a reaction such that element A changes its oxidation state and goes in more than one ( two ) products with the same oxidation state ( but different oxidation state than in the reactant ). In such case, the n-factor is calculated in the same manner as in case 4

Let the chemical change be.

A_a^+xB_b →A_c^+yD + A_e^+yF

In such cases, the number of products in which element A is present is of no significance since the oxidation state of A in both the products is same. The point of important is not the number of products containing that element which undergoes change in oxidation state but the oxidation state of the element is of importance. The n-factor of A_aB_b  is calculated in the same way as in case 4.

The n-factor of A_aB_b is calculated as n = |ax - ay|

For example let us calculate the n-factor of K₂Cr₂O₇ for the given chemical change

Cr₂O₇^2– → Cr³⁺ + Cr³⁺

In this reaction, oxidation state of Cr changes from +6 to +3 in both the products.

n-factor of K₂Cr₂O₇

6.6 SALTS WHICH REACT IN A MANNER THAT ONLY ONE ATOM UNDERGOES CHANGE IN OXIDATION STATE BUT GOES IN TWO PRODUCTS WITH THE DIFFERENT OXIDATION STATE ( DIFFERENT THAN IN THE REACTANT )

AS A RESULT OF EITHER OXIDATION OR REDUCTION

Let the chemical change be

A_a^+xB_b →A_c^+yD + A_e^+zF

In such cases, n- factor calculation is not possible until we know that how much of A has changed its oxidation state to +y and how much of A has changed its oxidation state to +z. This is because the number of moles of electrons lost or gained by one mole of A_aB_b would depend on the fact that how much of A underwent change to oxidation state +y and how much of A underwent change to oxidation state +z. This is possible only by knowing the balanced chemical reaction. If we know the balanced chemical reaction, then the n-factor calculation is of no use because problem can be solved using mole concept. But nevertheless , n-factor calculation in such cases can be done as follows

Let us take a chemical change   2Mn⁺⁷ → Mn⁺⁴ + Mn⁺²   out of the two moles of Mn⁺⁷ , one mole of Mn⁺⁷ changes to Mn⁺⁴ by gaining 3 moles of electrons and other mole of Mn⁺⁷ changes to Mn⁺² by gaining 5 mole of electrons, so in all 8 mole of electrons are gained by 2 mole of Mn⁺⁷ . So each mole of Mn⁺⁷ has gained 8/2 = 4 mole of electrons. Thus, 4 would be the n-factor of Mn⁺⁷ in this reaction.

If the reaction would have been ,

3Mn⁺⁷ → Mn⁺⁴ + 2Mn⁺²

Out of three moles of Mn⁺⁷ , two moles of Mn⁺⁷ changes to Mn⁺² by gaining 10 moles of electrons and one mole of Mn⁺⁷ changes to Mn⁺⁴ by gaining 3 mole of electrons . So each mole of Mn⁺⁷ has gained 13/3 mole of electrons. Thus, 13/3 would be the n-factor of Mn⁺⁷ in this reaction.

Note that n-factor can be a fraction because it is not the number of electrons exchanged but it is the number of mole of electrons exchanged which can be a fraction.

Now if the reaction would have been  3Mn⁺⁷ → 2Mn⁺⁴ + Mn⁺². Thus, each mole Mn⁺⁷ have gained 11/3 mole of electrons. Thus, 11/3 would be the n-factor of Mn⁺⁷ in this reaction.

6.7 SALTS WHICH REACT IN A MANNER THAT ONLY ONE ATOM UNDERGOES CHANGE IN OXIDATION STATE BUT GOES IN TWO PRODUCTS WITH THE DIFFERENT OXIDATION STATE ( IN ONE PRODUCT WITH THE SAME OXIDATION STATE THE REACTANT AND IN OTHER PRODUCT WITH THE DIFFERENT OXIDATION STATE THAN IN THE REACTANT)

Let the reaction be

A_a^+xB_b →A_e^+xF+ A_c^+yD

For such reactions also, the n-factor calculation is not possible without the knowledge of balanced chemical reaction because n-factor of A_aB_b would depend on the fact that how much of A underwent change to oxidation state +y and how much of A remained in the same oxidation state +x.

For example, if we have a chemical change as

2Mn⁺⁷ → Mn⁺⁷ + Mn⁺² (the compounds containing Mn in +7 state in reactant and product are different )

In this reaction, 5 moles of electrons are gained by 2 moles of Mn⁺⁷, so each mole of Mn⁺⁷ takes up 5/2 moles of electrons. Therefore, n-factor of Mn⁺⁷ in this reaction would be 5/2.

6.8  SALTS WHICH REACT IN A MANNER THAT TWO TYPE OF ATOM

UNDERGO CHANGE IN OXIDATION STATE (BOTH THE ATOMS ARE

EITHER GETTING OXIDIZED OR REDUCED)

Let the change be given as

A_a^+xB_b →A_c^+yD+ E_fB^+z

in this reaction, both A and B are changing their oxidation states and both of them are either getting oxidized or reduced. In such cases, n-factor of the compound would be the sum of individual n-factors of A and B .

n-factor of A = |ax - ay|

n-factor of B = |ax - bz| because the total oxidation state of ‘b’ B’s in the reactant is –ax ( as total oxidation of ‘a’ A’s in the reactant is +ax) and the total oxidation state of y B’s in the product is bz.

n-factor of A_aB_b =

In general, the n-factor of the salt will be the total number of mole of electrons lost or gained by one mole of the salt.

For example, we have a reaction,

Cu₂⁺¹S^-2 →Cu²⁺ + S⁺⁴O₂

In which Cu⁺ and S^2- both are getting oxidized to Cu²⁺ and S⁺⁴ respectively.

N factor of Cu₂S =

6.9      SALTS WHICH REACT IN A MANNER THAT TWO ATOMS

UNDERGOES CHANGE IN OXIDATION STATE ( ONE ATOM IS

GETTING OXIDIZED AND THE OTHER IS GETTING REDUCED)

If we have a salt which react in a fashion that atoms of one of the element are getting oxidized and the atoms of another element are getting reduced and no other element on the reactant side is getting oxidized or reduced, then the n-factor of such a salt can be calculated either by taking the total number of moles of electrons lost or total number of moles of electrons gained by one mole of the salt.

For example, the decomposition reaction of KClO₃ is given as

KCl⁺⁵O₃^2- → KCl^-1 + O₂⁰

In this reaction, O₂^- is getting oxidized to O₂ and KCl⁺⁵ is getting reduced to KCl^-1 . in each case, 6 moles of electrons are exchanged whether we consider oxidation or reduction.

n-factor of KClO₃ considering oxidation =

n-factor of KClO₃ considering reduction =

6.9 SALTS OR COMPOUNDS WHICH UNDERGO DISPROPORTIONATION REACTION)

Disproportionation reactions are the reactions in which oxidizing and reducing agents are the same or the same element from the same compound is getting oxidized as well as reduced.
n-factor of a disproportionation reaction can only be calculated using a balanced chemical reaction. We will categorize disproportionation reaction into two types.

(a)  Disproportionation reactions in which moles of compound getting oxidized and reduced are same i.e. moles of oxidizing agent and reducing agent are same. Then n-factor for such compounds is calculated by either the number of moles of electrons lost or gained by one mole of the compound because in such a case, n-factor of the compound acting as oxidizing agent or as reducing agent would be same.

For example, 2H₂O₂ 2H₂O +O₂

Out of the two moles of H₂O₂ used in the reaction, one mole of H₂O₂ gets oxidized to O₂ (oxidation state of O changes from -1 to 0 ) while the other mole of H₂O₂ gets reduced to H₂O ( the oxidation state of O changes from -1 to -2 ). When one mole of H₂O₂ gets oxidized to O₂  ,the half reaction would be     O₂^2- → O₂⁰ + 2e^-

And when one mole of H₂O₂ gets reduced to H₂O, the half-reaction would be

O₂^2- + 2e^-→  2O^2-

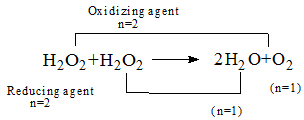

Thus, it is evident that one mole of H₂O₂ (which is either getting oxidized or reduced ) will lose or gain 2 mole of electrons. Therefore, n-factor of H₂O₂ as oxidizing agent as well as reducing agent in this reaction is 2. Thus,

Or when the reaction is written as 2H₂O₂ → 2H₂O +O₂ ,where, H₂O is not distinguished as how much of it functions as oxidizing agent and how much as reducing agent, then n-factor calculation can be done in the following manner. Find the number of electrons exchanged ( lost or gained ) using the balanced equation and divide it by the number of moles of H₂O₂ involved in the reaction. Thus, the n-factor of H₂O₂ when the reaction is written without segregating oxidizing agent and reducing agent is 2/2 = 1.

2H₂O₂     →    2H₂O     +    O₂

(n=1)             (n=1)          (n=2)

(b) Disproportionation reaction in which moles of compound getting oxidized and reduced are not the same i.e. moles of oxidizing agent and reducing agent are not the same. For example

6Br₂ + 12OH^-   → 10Br^- + 2BrO₃^- + 6H₂O

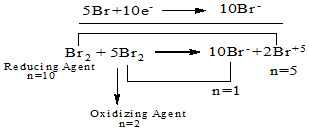

In this reaction , the mole of electrons lost by the oxidation of some of the moles of Br₂ are same as the number of mole of electrons gained by the reduction of rest of the moles Br₂. Of the 6 moles of Br₂ used, one mole is getting oxidized, loosing 10 electrons ( as reducing agent ) and 5 moles of Br₂ are getting reduced and accepts 10 moles of electrons ( as oxidizing agent ).

Br₂  →  2Br⁺⁵ + 10e^-

Thus, n-factor of Br₂ acting as oxidizing agent is 2 and that Br₂ acting as reducing agent has
n-factor 10.

Or when the reaction is written as

6Br₂    → 10Br^- + 2Br⁺⁵

Where, Br₂ is not distinguished as how much of it functions as oxidizing agent and how much of it as reducing agent, then for calculating n-factor of compound in such reactions, first find the total number of mole of electrons exchanged ( lost or gained ) using the balanced equation and divide it with the number of moles of Br₂ involved in the reaction to get the number of moles of electrons exchanged by one mole of Br_{2 .}

In the overall reaction, the number of moles of electrons exchanged ( lost or gained ) is 10 and the moles of Br₂ used in the reaction are 6. Thus, each mole of Br₂ has exchanged 10/6 or 5/3 moles of electrons. Therefore, the n-factor of Br₂ when the reaction is written without segregating oxidizing and reducing agent is 5/3.

6Br₂    → 10Br^- + 2Br⁺⁵

(n=5/3)       (n=1)   (n=5)
