Test: State Variable Analysis - 1 - Question 1
Save

Which one of the following information is necessary to formulate the problem of control systems optimization?

Test: State Variable Analysis - 1 - Question 2
Save

For arbitrary pole placement, the following combination is necessary.

1 Crore+ students have signed up on EduRev. Have you? Download the App
Test: State Variable Analysis - 1 - Question 3
Save

For a linear time invariant system, an optimal controller can be designed if

Detailed Solution for Test: State Variable Analysis - 1 - Question 3

An optimal controller for an LTI system can be designed provided the system is both controllable and observable

Test: State Variable Analysis - 1 - Question 4
Save

The eigen values of linear system are the location of
Detailed Solution for Test: State Variable Analysis - 1 - Question 4

Eigen value are given by | sI - A | = 0, which is the location of poles.

Test: State Variable Analysis - 1 - Question 5
Save

If the system matrix of a linear time invariant continuous system is given by


Its characteristic equation will be given by
Detailed Solution for Test: State Variable Analysis - 1 - Question 5

Characteristic equation is

or, s2 + 5s + 2 = 0

Test: State Variable Analysis - 1 - Question 6
Save

​The state-variable description of a linear autonomous system is is a two-dimensional state vector and A is a matrix given by


The poles of the system are located at
Detailed Solution for Test: State Variable Analysis - 1 - Question 6

Poles of given system are given by

Test: State Variable Analysis - 1 - Question 7
Save

Assertion (A): The eigen values of a linear continuous-data time invariant system controls the stability of the system.
Reason (R): The roots of the characteristic equation are the same as the eigen values of system matrix A of the state equations.
Test: State Variable Analysis - 1 - Question 8
Save

The vector matrix differential equation of a system is given by

The state transition matrix of the system is
Detailed Solution for Test: State Variable Analysis - 1 - Question 8

We have:



Test: State Variable Analysis - 1 - Question 9
Save

The system matrix of a continous time system is given by:

​The characteristic equation is
Detailed Solution for Test: State Variable Analysis - 1 - Question 9

The characteristic equation | sI - A | = 0.


Now, | sI - A | = 0
or, (s + 5) [(s + 5)2 + 0] + 1 (0 - 0) + 0 = 0
or, (s + 5)3 = 0 or s3 + 15s2 + 75s + 125 = 0

Test: State Variable Analysis - 1 - Question 10
Save

A system is described by the following equations:

The transfer function of the system is
Detailed Solution for Test: State Variable Analysis - 1 - Question 10

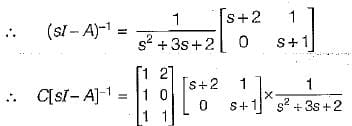

Transfer function is given by

Given,

and

Now,
