Test: Z Bus Matrix - Electrical Engineering (EE) MCQ


Test Description

5 Questions MCQ Test - Test: Z Bus Matrix

Test: Z Bus Matrix for Electrical Engineering (EE) 2024 is part of Electrical Engineering (EE) preparation. The Test: Z Bus Matrix questions and answers have been prepared according to the Electrical Engineering (EE) exam syllabus.The Test: Z Bus Matrix MCQs are made for Electrical Engineering (EE) 2024 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for Test: Z Bus Matrix below.
Solutions of Test: Z Bus Matrix questions in English are available as part of our course for Electrical Engineering (EE) & Test: Z Bus Matrix solutions in Hindi for Electrical Engineering (EE) course. Download more important topics, notes, lectures and mock test series for Electrical Engineering (EE) Exam by signing up for free. Attempt Test: Z Bus Matrix | 5 questions in 15 minutes | Mock test for Electrical Engineering (EE) preparation | Free important questions MCQ to study for Electrical Engineering (EE) Exam | Download free PDF with solutions
Test: Z Bus Matrix - Question 1

Z-bus matrix of 3 bus power system is given below, due to fault at bus-3 ( as shown). Find the final voltage at bus1 and bus-2. Consider the all bus voltage as 1 p.u. prior to the fault. Bus impedances are in p.u. values.

Detailed Solution for Test: Z Bus Matrix - Question 1

Fault current at bus 3 is given by If3

= -j 2.1762 p.u (Vp = voltage of the bus prior to fault).
Due to fault at bus-3 its voltage becomes 0 V and the voltage of Bus-1 and Bus-2 will also reduce.
Changes in voltage can be found with the help of the Z-bus matrix as.

ΔV1 = (j0.3243)(j2.1762)  = - 0.7057
ΔV2 = (j0.2297)(j2.1762) = - 0.4998
Final voltage at Bus-1: Vf1 = Vp1 + ΔV1 = 1 - 0.7057 = 0.2943 p.u
Final voltage at Bus-2: Vf2 = Vp2 + ΔV2 = 1 - 0.4998 = 0.5002 p.u

Test: Z Bus Matrix - Question 2

Which one of the following statement is normally correct for a Z bus matrix?

Detailed Solution for Test: Z Bus Matrix - Question 2

Z bus matrix:

  • The Z bus matrix or Bus impedance matrix is an important tool for the fault analysis of the power system.
  • Z bus matrix can be formed by either inverting the Y bus matrix or by the Z bus building algorithm.
  • The diagonal elements of the Z bus are referred to as driving point impedances of the buses and the off-diagonal elements are called transfer impedances.
  •  The impedance between two far-away buses becomes very large, so there are no zero elements.
  • As most of the elements in the Z bus matrix are non zero elements, hence Z bus matrix usually considered as a full matrix or dense matrix.
  • The Z bus matrix is also a symmetric matrix.
  • Z bus matrix is not preferred for load flow analysis since it requires more time to compute when the number of buses are more than three, and also more memory is required.

Y bus matrix:

  • The Y bus or admittance matrix is the most preferred tool for the load flow analysis of the power systems.
  • Y bus represents the nodal admittance of the buses in a power system, so it is also called a nodal admittance matrix.
  • The admittance between two far-away buses becomes negligible, so most of the elements are zero.
  • More than 80% of elements of the Y bus matrix are zero, hence it can be considered as a sparse matrix.
  • The Y bus matrix is also a symmetric matrix.
  • As most of the elements are zero, the computational time and memory required for load flow analysis are low.
1 Crore+ students have signed up on EduRev. Have you? Download the App
Test: Z Bus Matrix - Question 3

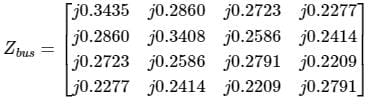

The bus impedance matrix of a 4 – bus power system is given by

A branch having an impedance of j 0.2 Ω is connected between bus 2 and the reference Then the values of Z22,new and Z23,new of the bus impedance matrix of the modified network are respectively.

Detailed Solution for Test: Z Bus Matrix - Question 3

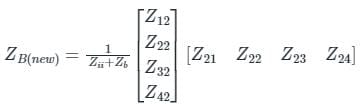

New element Zb = j0.2Ω is connected in ith bus and reference bus i = 2, n = 4 so


Given that we are required to find only Z22, Z23

= j 0.1260

= j 0.0956

Test: Z Bus Matrix - Question 4

For a power system network with n nodes, Z33 of its bus impedance matrix is j0.5 per unit. The voltage at node 3 is 1.3∠-10° per unit. If a capacitor having reactance of –j3.5 per unit is now added to the network between node 3 and the reference node, the current drawn by the capacitor per unit is

Detailed Solution for Test: Z Bus Matrix - Question 4




Power system having n nodes.
Z33 = j 0.5 PU
V3 = 1.3∠ -10° PU
A capacitor having a reactance of -j 3.5 PU is now added to the network

IC = 0.433∠ 80°

Test: Z Bus Matrix - Question 5

The line reactances of a power network are as follows:

The bus impedance matrix with ‘0’ as reference bus is

Detailed Solution for Test: Z Bus Matrix - Question 5

By considering line - 1,

Here ZBUS is formed between new bus & reference bus, so type - 1 formation
∴  ZBus = [j 0.2]
By adding line - 2 to the above Bus

Here ZBUS is formed between new bus & old bus, so type - 2 formation
