Gate Mock Test Civil Engineering (CE)- 9 - Civil Engineering (CE) MCQ


Test Description

30 Questions MCQ Test - Gate Mock Test Civil Engineering (CE)- 9

Gate Mock Test Civil Engineering (CE)- 9 for Civil Engineering (CE) 2024 is part of Civil Engineering (CE) preparation. The Gate Mock Test Civil Engineering (CE)- 9 questions and answers have been prepared according to the Civil Engineering (CE) exam syllabus.The Gate Mock Test Civil Engineering (CE)- 9 MCQs are made for Civil Engineering (CE) 2024 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for Gate Mock Test Civil Engineering (CE)- 9 below.
Solutions of Gate Mock Test Civil Engineering (CE)- 9 questions in English are available as part of our course for Civil Engineering (CE) & Gate Mock Test Civil Engineering (CE)- 9 solutions in Hindi for Civil Engineering (CE) course. Download more important topics, notes, lectures and mock test series for Civil Engineering (CE) Exam by signing up for free. Attempt Gate Mock Test Civil Engineering (CE)- 9 | 65 questions in 180 minutes | Mock test for Civil Engineering (CE) preparation | Free important questions MCQ to study for Civil Engineering (CE) Exam | Download free PDF with solutions
Gate Mock Test Civil Engineering (CE)- 9 - Question 1

Directions: In the following question, a set of three figures X, Y and Z shows a sequence in which a piece of paper is folded and finally cut from a particular section. Below these figures, a set of answer figures marked (a), (b), (c) and (d) shows the design which the paper actually acquires when it is unfolded. You have to select the answer figure which most closely resembles the unfolded piece of paper.

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 1

Gate Mock Test Civil Engineering (CE)- 9 - Question 2

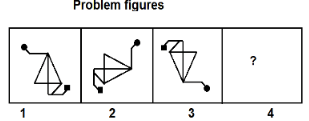

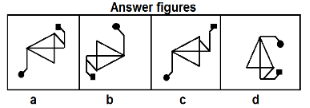

Directions: This problem consists of four 'Question Figures' followed by four 'Answer Figures' (a, b, c and d). Select the Answer Figure which continues the same pattern as established by the Question Figures.

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 2
The small shaded star moves clockwise by one side in the first step, by two sides in the second step, by three sides in the third step, and by four sides in the next step. The larger star rotates 90° anti-clockwise in each step. So, figure (d) is correct.
1 Crore+ students have signed up on EduRev. Have you? Download the App
Gate Mock Test Civil Engineering (CE)- 9 - Question 3

Directions: In the following question, choose the word which best fills the blank from the four options given.

Even when his reputation was in _______, almost everyone was willing to acknowledge the qualities of his leadership

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 3
The word 'jeopardy', which refers to 'in danger', is the best option to indicate that the reputation is at risk.
Gate Mock Test Civil Engineering (CE)- 9 - Question 4

Find the sentence that has a mistake in grammar or usage. If you find no mistakes, mark option 4.

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 4

There are no errors.

Gate Mock Test Civil Engineering (CE)- 9 - Question 5

If f (n) - f (n - 1) = g (n), f (1) = 0, g (n) = + 256, where n is a natural number greater than 1 and f(n - 1), f (n), g (n) are all integers, what is the maximum value of f(n)?

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 5
f (n) - f (n - 1) = f(n)/5 + 256

∴ f (n) = 5/4 (f (n - 1)+ 256)

We get f (2) = 320, f (3) = 720, f (4) = 1220, f (5) = 1845, f (6) = 5/4 (1845 + 256) : f (6) is not an integer.

Answer = 1845

Gate Mock Test Civil Engineering (CE)- 9 - Question 6

There are eight bags of rice, which look alike. Seven of those bags have equal weights and one bag is slightly heavier. The weighing balance is of unlimited capacity. Using this balance, the minimum number of weighings required to identify the heavier bag is

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 6
Keep two bags aside and consider two lots of three bags each and weigh them.

Case - I:

Unequal weighing results in identifying that the odd bag is in those six bags. Then, we will be left with three bags in which one is the odd bag. Then, keeping one bag aside and considering two lots of one bag each and weighing them will give us the final answer. So, this involves two stages of weighing.

Case - II:

Unequal weighing results in identifying that the odd bag is in those two bags, which are kept aside. Then, we will proceed with weighing those two bags and to get the final answer. So, this involves two stages of weighing only.

Gate Mock Test Civil Engineering (CE)- 9 - Question 7

Directions: In the following question, a set of three figures X, Y and Z shows a sequence in which a piece pf paper is folded and finally cut from a particular section. Below these figures, a set of answer figures marked (a), (b), (c) and (d) shows the design which the paper actually acquires when it is unfolded. You have to select the answer figure which most closely resembles the unfolded piece of paper.

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 7
Option (3) is correct.

Gate Mock Test Civil Engineering (CE)- 9 - Question 8

Directions: In the following question, the second figure of the problem figures bears a certain relationship to the first figure. Similarly, one of the figures in the answer figures bears the same relationship to the third figure. You have to select the figure from the set of answer figures that would replace the sign of question mark (?).

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 8
First figure has been rotated by 90° in clockwise direction to get the next figure. Similarly, if we rotate the figure 3, then the resultant figure will be same as figure 'a'.
Gate Mock Test Civil Engineering (CE)- 9 - Question 9

Directions: The question given below is followed by two statements I and II. Read the question carefully and determine which statement(s) is/are are sufficient/necessary to answer the question.

How is the person in the photograph related to Komal?

I. Komal says, 'Mother of the person in the photograph is the paternal grandmother of my father's son.'

II. Komal says, 'Person in the photograph is the daughter of the mother-in-law of my brother's mother.'

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 9
Using statement I

Father's son = brother of Komal

Paternal grandmother of father's son = paternal grandmother of Komal

Mother of the person in the photograph is the paternal grandmother of Komal.

Child of the paternal grandmother would be uncle, aunt, or father of Komal.

We cannot determine the exact relation using statement I.

Using statement II:

Brother's mother = mother of Komal

Mother-in-law of brother's mother = paternal grandmother of Komal

That person is the daughter of the paternal grandmother of Komal.

Therefore, the person in the photograph is the paternal aunt of Komal.

Hence, statement II alone is sufficient to answer the question.

Gate Mock Test Civil Engineering (CE)- 9 - Question 10

Directions: In the question, a statement is followed by courses of action, numbered I, II and III. Assume everything in the statement to be true, and decide which of the suggested courses of action logically follow(s).

Statement: The school dropout rate in many districts in the state has increased sharply during the last few years as the parents of these children make them work in the fields owned by others to earn enough for them to get at least one meal a day.

Courses of action:

(I) The government should put up a mechanism to provide food grains to the poor people in these districts through public distribution system to encourage the parents to send their wards to school.

(II) The government should close down some of these schools in the district and deploy the teachers of these schools to nearby schools and also ask the remaining students to join these schools.

(III) The government should issue arrest warrants for all the parents who force their children to work in fields instead of attending classes.

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 10
(I) would be a step in the right direction, it would ensure that hunger does not deprive children of education. (II) is escapism. (III) is absurd.
Gate Mock Test Civil Engineering (CE)- 9 - Question 11

Tickets numbered from 1 to 20 are mixed up together and then a ticket is drawn at random. What is the probability that the drawn ticket has a number which is a multiple of 3 or 7?

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 11

Number of favourable cases = 3, 6, 9, 12, 15, 18, 7, 14 = 8 cases

Required Probability =

Gate Mock Test Civil Engineering (CE)- 9 - Question 12

If P = and Q = , then QTPT

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 12

*Answer can only contain numeric values
Gate Mock Test Civil Engineering (CE)- 9 - Question 13

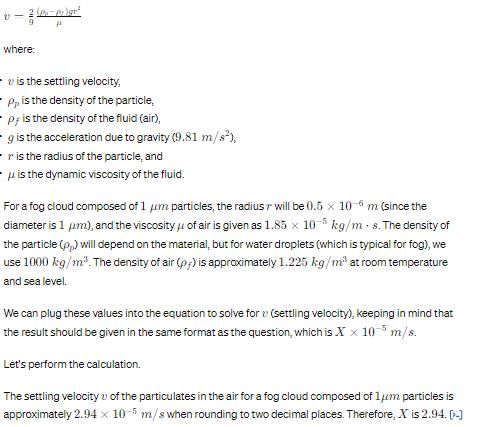

The settling velocities of particulates in the air for a fog cloud composed of 1μ m particles and viscosity of air 1.85 × 10–5 kg/m.s is X × 10-5 m/s, then X is _____. (Answer up to two decimal places)

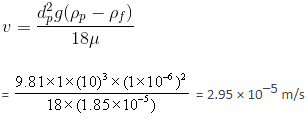

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 13

Gate Mock Test Civil Engineering (CE)- 9 - Question 14

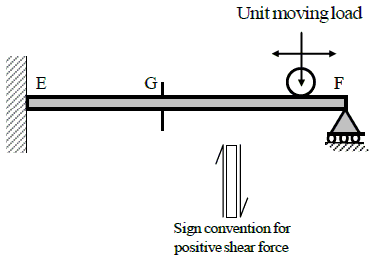

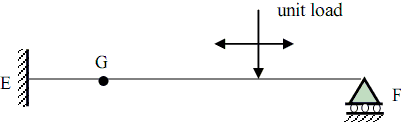

A propped cantilever beam EF is subjected to a unit moving load as shown in the figure (not to scale). The sign convention for positive shear force at the left and right sides of my section is also shown:

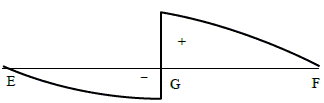

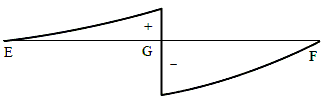

The CORRECT qualitative nature of the influence line diagram for shear force at G is

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 14

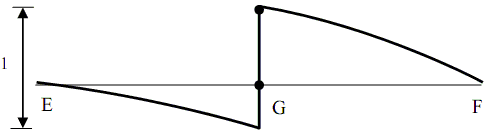

As per Mullers Breslauce principle,

*Answer can only contain numeric values
Gate Mock Test Civil Engineering (CE)- 9 - Question 15

A curve passes through points given by the following table:

By trapezoidal rule, the area bounded by the curve, the x-axis and the lines x = 1, x = 5 is

(Answer up to the nearest integer)


Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 15

Here, h = 1

Gate Mock Test Civil Engineering (CE)- 9 - Question 16

The direct and indirect costs estimated by a contractor for bidding a project are Rs. 1,60,000 and Rs. 20,000, respectively, If the mark up applied is 10% of the bid price, the quoted price (in Rs.) of the contactor is

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 16

Direct costs Rs. 1,60,000

Indirect costs Rs. 20,000

Mark up applied is 10% of the Bidprice

Bid price = Direct cost + Indirect cost + Markup

Bid price = direct cost + Indirect cost + 10/100 × Bid price

Bid price (1 - 10/100) = DC + IC

BP =

= = Rs. 2,00,000

Gate Mock Test Civil Engineering (CE)- 9 - Question 17

A steel frame is shown in the given figure.

If joint O of the frame is rigid, the rotational stiffness of the frame at point O is given by

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 17

Rotational stiffness is the ratio of moment and rotation at O. In other words, rotational stiffness is the moment required for unit rotation at O.

Gate Mock Test Civil Engineering (CE)- 9 - Question 18

A partially saturated soil sample has natural moisture content of 25% and bulk unit weight of 18.5 kN/m3. The specific gravity of soil solids is 2.65 and unit weight of water is 9.81 kN/m3. The unit weight of the soil sample on full saturation is

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 18

*Answer can only contain numeric values
Gate Mock Test Civil Engineering (CE)- 9 - Question 19

Let A be a 3 * 3 matrix with eigenvalues, 1, - 1, 0. What will be the determinant of I + A100? (Answer up to the nearest integer)


Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 19

Eigenvalues of A are 1, - 1, 0.

Eigenvalues of A100 are 1100, (- 1)100, (0)100, i.e. 1, 1, 0.

Eigenvalues of I + A100 are 1 + 1, 1 + 1, 1 + 0, i.e. 2, 2, 1.

or |I + A100| = 2 * 2 * 1 = 4

Gate Mock Test Civil Engineering (CE)- 9 - Question 20

'Kinematic viscosity' is dimensionally represented as

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 20

Gate Mock Test Civil Engineering (CE)- 9 - Question 21

Which one of the following pairs in not correctly matched?

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 21
Check valve also called non-return valve and it automatically prevent the reversal of flow in a pipe line.
Gate Mock Test Civil Engineering (CE)- 9 - Question 22

Which one of the following is correct?

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 22

Chemoheterotrophs are the organisms which live off the organic matter by consuming them. Animals and fungi are the best examples. Thus, chemoheterotrophs are the most important of the species that degrade the organic matter.

is the oxygen demand of the effluent for the first five days, while the ultimate BOD is total oxygen demand to degrade all the organic matter and it may take infinite time; hence, the ratio must be between 0 and 1. Hence, (2) is incorrect.

Eutrophic lakes are contrary to what is mentioned in option (3). They are old, very high in nutrient contents.

Gate Mock Test Civil Engineering (CE)- 9 - Question 23

Pick up the correct statement:

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 23
An artesian aquifer is a confined aquifer containing groundwater under positive pressure. An artesian aquifer has trapped water, surrounded by layers of impermeable rock or clay which apply positive pressure to the water contained within the aquifer.
Gate Mock Test Civil Engineering (CE)- 9 - Question 24

The shape of the most commonly designed highway vertical curve is

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 24

Concept:

  • The ideal vertical curve is a 2° parabola.

  • The most preferred curve for vertical alignment is parabolic.

Important Points:

1. Square parabola is generally preferred due to best riding quality, simplicity of calculation, and uniform rate of change of gradient.

2. In a circular curve, sight distance is available throughout the curve is constant.

3. Cubic parabola is generally preferred in the valley curve.

*Answer can only contain numeric values
Gate Mock Test Civil Engineering (CE)- 9 - Question 25

In Chezy's formula, V = C is used for calculating the velocity of flow in circular sewer running full. The value of hydraulic mean radius may be taken as n × D. Then the value of n is (Answer up to two decimal places)


Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 25
Hydraulic mean radius = D/4 = 0.25 D
Gate Mock Test Civil Engineering (CE)- 9 - Question 26

Which of the following is NOT a correct statement?

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 26

The first reading from a level station is known as 'back sight' not 'fore sight'.

All the other statements are correct.

Gate Mock Test Civil Engineering (CE)- 9 - Question 27

If during a permeability test on a soil sample with a falling head permeameter, equal time intervals are noted for drop of head of from h1 to h2 and again from h2 to h3 then which one of the following relations would hold good?

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 27

⇒ h 2 2 =h1 h3

*Answer can only contain numeric values
Gate Mock Test Civil Engineering (CE)- 9 - Question 28

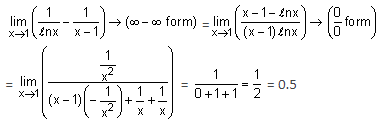

Consider the limit:

The limit (correct up to one decimal place) is ______________.


Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 28

Gate Mock Test Civil Engineering (CE)- 9 - Question 29

Consider the following statements in regard to the critical flow:

  1. Specific energy is maximum for a given discharge.
  2. Specific force is maximum for a given discharge.
  3. Discharge is maximum for a given specific force.
  4. Discharge is maximum for a given specific energy.

Which of the above statements are correct?

Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 29

Flow is maximum for a given specific energy, when it is in critical state. Which is essentially equation representing the critical flow. Thus critical flow connotes not only minimum specific energy for a given discharge per unit width, but also maximum discharge per unit width for given specific energy.
Flow is maximum for a given specific energy, when it is in critical state. Thus critical flow connotes not only minimum specific energy for a given discharge per unit width, but also maximum discharge per unit width for given specific energy.
So, the answer is 3 and 4.

*Answer can only contain numeric values
Gate Mock Test Civil Engineering (CE)- 9 - Question 30

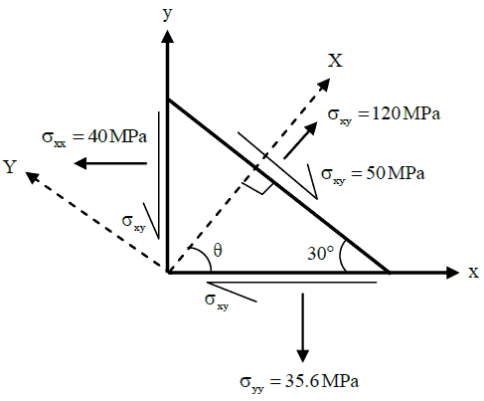

The state of stress in a deformable body is shown in the figure. Consider transformation of the stress from the x-y coordinate system to the X-Y coordinate system. The angle, , locating the X-axis is assumed to be positive when measured from the x-axis in counter-clockwise direction.

The absolute magnitude of the shear stress component (in MPa, rounded off to one decimal place) in x-y coordinate system is ________.


Detailed Solution for Gate Mock Test Civil Engineering (CE)- 9 - Question 30

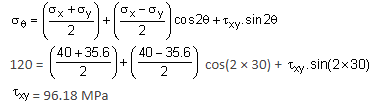

Resultant stress at angle is
