Test: Electronic Devices & Circuits - 7 - Question 1

Lowest resistivity of the following is

Test: Electronic Devices & Circuits - 7 - Question 2

Peak inverse voltage will be highest for

1 Crore+ students have signed up on EduRev. Have you? Download the App
Test: Electronic Devices & Circuits - 7 - Question 3

In CE configuration, the output characteristics of a bipolar junction transistor is drawn between

Test: Electronic Devices & Circuits - 7 - Question 4

Assertion (A): The reverse current in a p-n junction is nearly constant.

Reason (R): The reverse breakdown voltage of a p-n diode depends on the extent of doping.

Test: Electronic Devices & Circuits - 7 - Question 5

An n type semiconductor is illuminated by a steady flux of photons with energy greater than the band gap energy. The change in conductivity Δσ obeys which relation?
[ Here, e is the electron charge, μn electron mobility, μp hole mobility, Δnp) is the excess electron (hole) density ].

Test: Electronic Devices & Circuits - 7 - Question 6

Resistivity of metals is expressed in terms of

Test: Electronic Devices & Circuits - 7 - Question 7

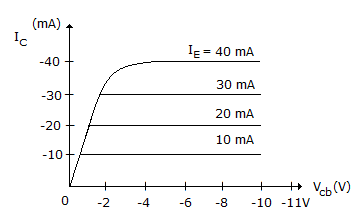

Figure shows characteristics curves for bipolar transistor. These curves are

Test: Electronic Devices & Circuits - 7 - Question 8

Zener diode is invariably used with

Test: Electronic Devices & Circuits - 7 - Question 9

The relation between plate current and plate voltage of a vacuum diode is called

Test: Electronic Devices & Circuits - 7 - Question 10

Given that the band gap of cadmium sulphide is 2.5 eV, the maximum photon wavelength, for e--hole pair generation will be

Test: Electronic Devices & Circuits - 7 - Question 11

The maximum rectification efficiency in case of full wave rectifier is

Test: Electronic Devices & Circuits - 7 - Question 12

For a full wave bridge rectifier supplied with 50 Hz a.c., the lowest ripple frequency will be

Test: Electronic Devices & Circuits - 7 - Question 13

When an electron rises through a potential of 100 V it will acquired an energy of

Test: Electronic Devices & Circuits - 7 - Question 14

Which one of the following gain equations is correct for a MOSFET common-source amplifier?
(gm is mutual conductance, and RD is load resistance at the drain)

Test: Electronic Devices & Circuits - 7 - Question 15

If 1 kVA transformer is used for all of the following rectifiers, the d.c. power availability will be least in case of

Test: Electronic Devices & Circuits - 7 - Question 16

Which of the following is the ferric electric material?

Test: Electronic Devices & Circuits - 7 - Question 17

The amount of time between the creation and disappearance of a hole in an intrinsic semiconductor material is called

Test: Electronic Devices & Circuits - 7 - Question 18

In photo electric emission, the threshold frequency f0, work function Uw, and Planck's constant h are related as

Test: Electronic Devices & Circuits - 7 - Question 19

In which n type device does p substrate extend upto silicon dioxide layer?

Test: Electronic Devices & Circuits - 7 - Question 20

In a N-type semi-conductor, the concentration of minority carriers is mainly depends on

Test: Electronic Devices & Circuits - 7 - Question 21

The band gap of Si at room temperature is

Test: Electronic Devices & Circuits - 7 - Question 22

Spot the odd one out

Test: Electronic Devices & Circuits - 7 - Question 23

Transition capacitance is associated with __________ and depletion capacitance is associated with __________ diodes.

Test: Electronic Devices & Circuits - 7 - Question 24

Figure represents a

Test: Electronic Devices & Circuits - 7 - Question 25

If the energy gap of a semiconductor is 1.1 eV, then it would be.
