Insulation Resistance of High Voltage Circuit Breakers
Insulation resistance is an important parameter in high voltage circuit breakers to ensure the safe and reliable operation of the equipment. It is a measure of the resistance offered by the insulation material to the flow of current through it. A high insulation resistance value indicates good insulation integrity.

Importance of Insulation Resistance
- Insulation resistance helps in identifying any insulation degradation or leakage current that can lead to equipment failure or electrical hazards.
- It helps in determining the health of the insulation system and predicts potential faults before they occur.
- Regular insulation resistance testing is necessary to maintain the operational reliability of high voltage circuit breakers.

Recommended Insulation Resistance Value

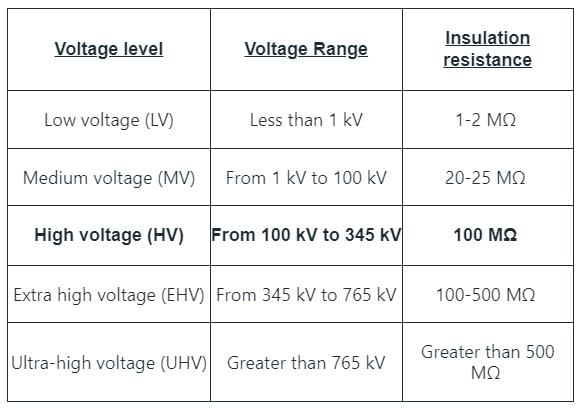

- The recommended insulation resistance value for high voltage circuit breakers is typically above 100 M ohm.
- A value of 100 M ohm or higher indicates that the insulation system is in good condition and can withstand the high voltage stresses during operation.

Testing and Maintenance
- Insulation resistance testing is usually performed using a megohmmeter or insulation resistance tester.
- Regular maintenance and testing of insulation resistance help in preventing breakdowns and ensuring the safety of the equipment and personnel.
- Any deviation from the recommended insulation resistance value should be investigated, and necessary actions should be taken to rectify the issue.
In conclusion, maintaining a high insulation resistance value in high voltage circuit breakers is crucial for ensuring the reliability and safety of the equipment. Regular testing and maintenance practices play a key role in achieving this goal.
