Introduction

  • For determinate structures, the force method allows us to find internal forces (using equilibrium i.e. based on Statics) irrespective of the material information. Material (stress-strain) relationships are needed only to calculate deflections.
  • However, for indeterminate structures , Statics (equilibrium) alone is not sufficient to conduct structural analysis. Compatibility and material information are essential.
  • The flexibility method is based upon the solution of "equilibrium equations and compatibility equations". There will always be as many compatibility equations as redundants. It is called the flexibility method because flexibilities appear in the equations of compatibility. Another name for the method is the force method because forces are the unknown quantities in equations of compatibility.

The force method is used to calculate the response of statically indeterminate structures to loads and/or imposed deformations. The method is based on transforming a given structure into a statically determinate primary system and calculating the magnitude of statically redundant forces required to restore the geometric boundary conditions of the original structure.
The basic steps in the force method are as follows:

  1. Determine the degree of static indeterminacy, n of the structure.

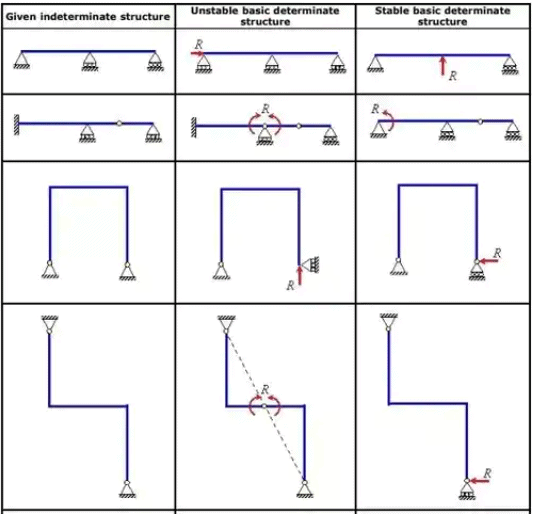

  2. Transform the structure into a statically determinate system by releasing a number of static constraints equal to the degree of static indeterminacy, n. This is accomplished by releasing external support conditions or by creating internal hinges. The system thus formed is called the basic determinate structure.
  3. For a given released constraint j, introduce an unknown redundant force Rf corresponding to the type and direction of the released constraint.
  4. Apply the given loading or imposed deformation to the basic determinate structure. Use suitable method (given in Chapter 4) to calculate displacements at each of the released constraints in the basic determinate structure.
  5. Solve for redundant forces Rf ( j =1 to n ) by imposing the compatibility conditions of the original structure. These conditions transform the basic determinate structure back to the original structure by finding the combination of redundant forces that make displacement at each of the released constraints equal to zero.

Force Methods/Flexibility Method Notes | EduRev

Types of Force Method/Flexibility Method/Compatibility Methods

  1. Virtual work/Unit load Method
  2. Method of consistent deformation
  3. Three-moment theorem
  4. Castigliano's theorem of minimium strain energy
  5. Maxwell-Mohr's equation
  6. Column Analogy Method
Strain Energy Method
  1. Strain energy stored due to axial load
    Force Methods/Flexibility Method Notes | EduRev
    where, P = Axial load
    dx = Elemental length
    AE = Axial rigidity
  2. Strain energy stored due to bending
    Force Methods/Flexibility Method Notes | EduRev
    where, MX = Bending moment at section x-x
    ds = Elemental length
    El = Flexural rigidity
    or E = Modulus of elasticity
    l = Moment of inertia
  3. Strain energy stored due to shear
    Force Methods/Flexibility Method Notes | EduRev
    where, q = Shear stress
    G = Modulus of rigidity
    dv = Elemental volume
  4. Strain energy stored due to shear force
    Force Methods/Flexibility Method Notes | EduRev
    where, AS = Area of shear
    S = Shear force
    G = Modulus of rigidity
    ds = Elemental length
  5. Strain energy stored due to torsion
    Force Methods/Flexibility Method Notes | EduRev
    where, T = Torque acting on circular bar
    dx = Elemental length
    G = Modulus of rigidity
    lP = Polar moment of inertia
  6. Strain energy stored in terms of maximum shear stress
    Force Methods/Flexibility Method Notes | EduRev
    where, Maximum shear stress at the surface of rod under twisting.
    G = Modulus of rigidity
    V = Volume
  7. Strain energy stored in hollow circular shaft is,
    Force Methods/Flexibility Method Notes | EduRev
    Where, D = External dia of hollow circular shafts
    d = Internal dia of hollow circular shaft
    τmax = Maximum shear stress
  8. Castigliano's first Theorem
    Force Methods/Flexibility Method Notes | EduRev
    where, U = Total strain energy
    Δ = Displacement in the direction of force P.
    θ = Rotation in the direction of moment M.
  9. Castiglianos Second Theorem
    Force Methods/Flexibility Method Notes | EduRev
Betti's Law

Force Methods/Flexibility Method Notes | EduRev

where, Pm = Load applied in the direction m.
Pn = Load applied in the direction n.
δmn = Deflection in the direction 'm' due to load applied in the direction 'n'.
δnm = Deflection in the direction 'n' due to load applied in the direction 'm'.

Maxwells Reciprocal Theorem

δ21 = δ12

Force Methods/Flexibility Method Notes | EduRev

where, δ21 = deflection in the direction (2) due to applied load in the direction (1).
δ12 = Deflection in the direction (1) due to applied load in the direction (2).

Some Solved Examples

Example 1: Analyze the continuous beam shown below using the force method. Also, draw the bending moment diagram. EI is constant for entire beam.

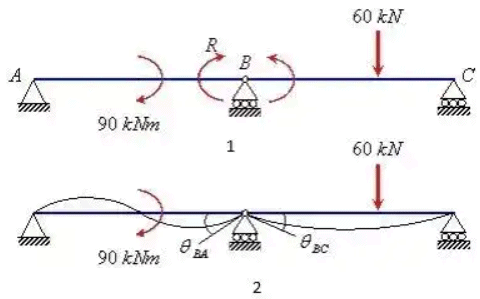

Force Methods/Flexibility Method Notes | EduRevSolution: The degree of static indeterminacy = 3–2 =1. The moment at B is taken as redundant R and the basic determinate structure will be then two simply supported beams as shown below

Force Methods/Flexibility Method Notes | EduRevForce Methods/Flexibility Method Notes | EduRev

Rotation of point B due to applied loads
Force Methods/Flexibility Method Notes | EduRev

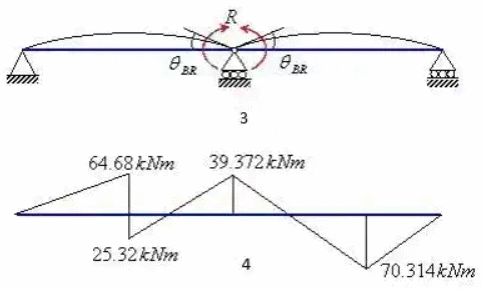

Rotation of point B due to R

Force Methods/Flexibility Method Notes | EduRev

Equating the rotation of point 8 due to applied loads and R i.e.
4R/El = 315/2E1
or R = 39.375 kNm
The reaction at A is given by
Force Methods/Flexibility Method Notes | EduRev

The vertical reaction at C Is given by
Force Methods/Flexibility Method Notes | EduRev

The vertical reaction at B is

VB = 60 + 21.5625 - 23.4375 = 58.125 kN
The bending moment diagram of the beam is shown in Figure 4.

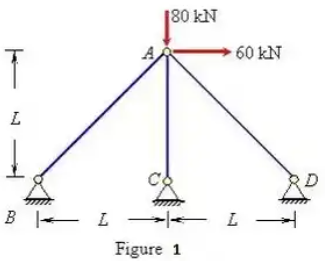

Example 2: Find the force in various members of the pin-jointed frame shown in figure below. AE is constant for all members.

Force Methods/Flexibility Method Notes | EduRevForce Methods/Flexibility Method Notes | EduRev Basic determinate structure under the applied load and unknown R

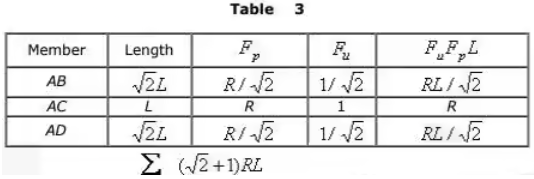

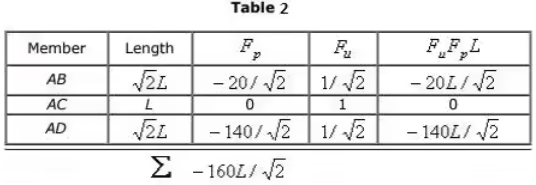

Solution: The static indeterminacy of the pin-jointed frame = 1. The vertical reaction at C is taken as unknown force R . The computation of deflection of point C due to applied loading and R are shown in Tables 2 and 3, respectively.

Force Methods/Flexibility Method Notes | EduRev

The vertical displacement of joint C due to applied loading = - 160L/√2AE (↓)
Force Methods/Flexibility Method Notes | EduRev

The vertical displacement of Joint C due to R = Force Methods/Flexibility Method Notes | EduRev

Adding the displacement of point C due to applied loading and R and equating It to zero i.e.

Force Methods/Flexibility Method Notes | EduRev

The force in various members of the frame are as follows

Force Methods/Flexibility Method Notes | EduRev

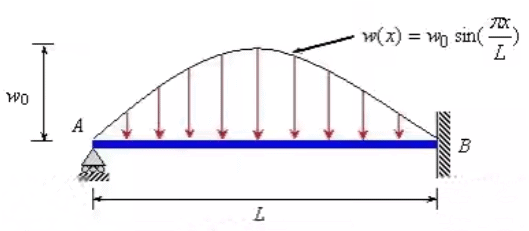

Example 3: Find the expression for the prop reaction in the propped cantilever beam shown in the figure below.
Force Methods/Flexibility Method Notes | EduRev

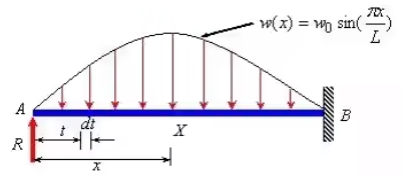

Solution: Let reaction at support A be R . According to the Castigliano's theorem
∂U/∂R = 0
Force Methods/Flexibility Method Notes | EduRev

The bending moment at any point X at a distance x from A is given by

Force Methods/Flexibility Method Notes | EduRev

Force Methods/Flexibility Method Notes | EduRev
Force Methods/Flexibility Method Notes | EduRev

Example 4: Analyze the continuous beam shown in figure shown beolw by the three moment equation. Draw the shear force and bending moment diagram.

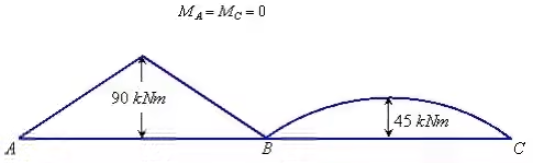

Force Methods/Flexibility Method Notes | EduRevSolution: The simply supported bending moment diagram on AB and AC are shown below. Since supports A and C are simply supported

Force Methods/Flexibility Method Notes | EduRev

Applying the three moment equation to span AEI and BC (Δ= Δ2 = Δ3 = 0)
Force Methods/Flexibility Method Notes | EduRev
or Mb = -56.25 kN.m
The reactions at support A, B and C are given as

Force Methods/Flexibility Method Notes | EduRev
VB = 120 + 40 x 3 - 41.25 - 41.25 =157.5 kN

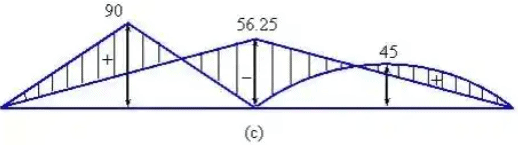

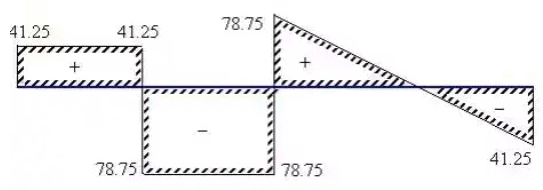

The bending moment and shear force diagram are shown below in figure.

Force Methods/Flexibility Method Notes | EduRev

Force Methods/Flexibility Method Notes | EduRev
