Plane Table Surveying
Plane table surveying is a graphical method of surveying in which the field works and the plotting is done simultaneously. It is particularly adopting in small areas mapping. Plane table surveying is used for locating the field computation of area of field.

Merits

  • It is most suitable for preparing small scale map or surveying small area.
  • It is most rapid method.
  • Field book is not necessary.
  • No great skill is required for satisfactory map.
  • It is particularly suitable for magnetic area where prismatic compass is not reliable.
  • Contour and irregular object may be represented accurately.
  • It is less costly.

Demerits

  • Plane Table Essentially a tropical instruments.
  • It is not suitable to work in wet climate.
  • There are several accessories  to be carried out and therefore they are likely to be lost.
  • It is not suitable for accurate work.

Plane Table essentially consists of a Drawing board mounted on tripod stand  and Alidade.

1. Drawing board mounted on tripod: A sheet of drawing paper, called plane table sheet is fastened to the  board. Board is made up of well seasoned wood such as teak of size 40x30 to 75x60cm. it had plane and smooth top. It is mounted on a tripod in manner that it can be leveled. Leveling up of the table is done by shifting the legs of tripod. Some tripod provided with leveling screw or by ball and socket head for accurate leveling.

2. Alidade: Alidade consists of two vertical sight vane fitted at end the end of straightedge. The straight edge ruler usually made of brass or teak wood graduated beloved edge. One of the sight veins is provided with narrow slit and the other with a central vertical wire or hair. Beveled working edge alidade is called fiducial edge.

 Agricultural Engineering Notes | EduRev

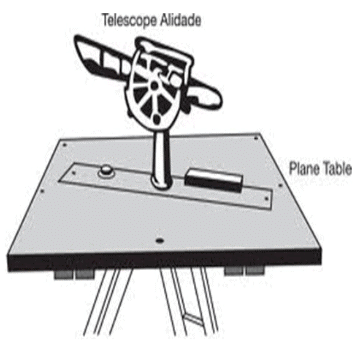

Fig. 6.1 Plane table with Alidade

Accessories used in Plane Table surveying are

  • Trough compass
  • U – frame or plumbing fork
  • Water proof cover.
  • Spirit level or level tube
  • Drawing sheet
  • Pencil or eraser

 Agricultural Engineering Notes | EduRev

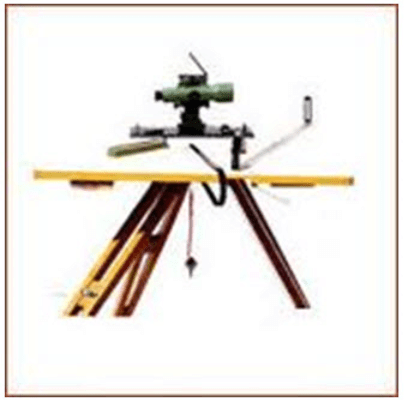

Fig. 6.2 Accessories in Plane Table surveying

  • Trough compass: The compass is used to mark the direction of the meridian on the paper.
  • U- frame or Plumbing fork: U frame with a plumb bob used for centering the table.
  • Water Proof Cover: Water Proof cover protects the sheet from rain.
  • Spirit level or level tube: A level tube is used to level the plane table.
  • Drawing sheet: The drawing sheet is fixed on the top of the drawing board.
  • Pencil and eraser: A pencil is used for constructing lines and eraser is used for erasing lines after completion of the plan.
