In the world of Physics, Sir Isaac Newton is the man who pioneered classical physics with his laws of motion. In these laws, the first law is also known as the Law of Inertia. Law of inertia is the most important and renowned one. In this piece of article, let us discuss the first law of inertia in detail. Before discussing the law of inertia, let us know the Inertia Definition. Inertia is defined as a property of matter by which it remains at the state of rest or in uniform motion in the same straight line unless acted upon by some external force.

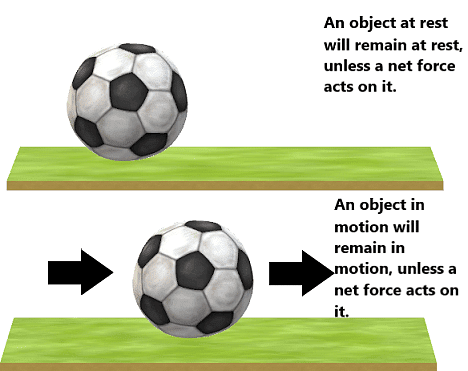

Law of inertia, also known as Newton’s first law of motion states that
An object will continue to be in the state of rest or in a state of motion unless an external force acts on it.
We have read about the Aristotle fallacy, as per which an external force is always required to keep a body in motion. This was proved wrong when the concept of inertia came into the picture. With the following two experiments, Galileo established the concept of inertia.
The most accepted theory of motion in Western philosophy, prior to the Renaissance, was the Aristotelian theory which stated that “In the absence of external power, all objects would come to rest that moving objects only continue to move so long as there is a power inducing them to do so. ” Despite its general acceptance, the Aristotelian theory was discredited by several notable philosophers. Later, Galileo refined the theory of inertia.
Galileo hypothesized that a falling object gains an equal amount of velocity in equal intervals of time. This also means that the speed increases at a constant rate as it falls. But, there was a problem in testing this hypothesis: it was impossible for Galileo to observe the object’s free-falling motion and at the time, technology was unable to record such high speeds. As a result, Galileo attempted to decelerate its motion by replacing the falling object with a ball rolling down an inclined plane. Since free-falling is basically equivalent to a completely vertical ramp, he assumed that a ball rolling down a ramp would speed up in the exact same way as a falling ball would.
Using a water clock, Galileo measured the time it took for the rolling ball to reach a known distance down the inclined plane. After several trials, it was observed that the time it took for the ball to roll the entire length of the ramp was equal to double the amount of time it took for the same ball to only roll a quarter of the distance. In short, if you were to double the amount of distance the ball traveled, it would travel four times as far. Through this experiment, Galileo concluded that
If an object is released from rest and gains speed at a steady rate (as it would in free-fall or when rolling down an inclined plane), then the total distance, s, traveled by the object is proportional to the time squared needed for that travel.
Mathematically, this is expressed as [latex] s α t2 [/latex]

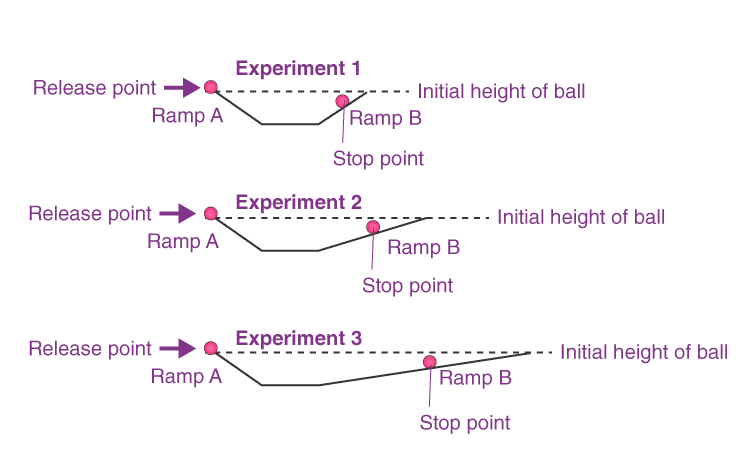

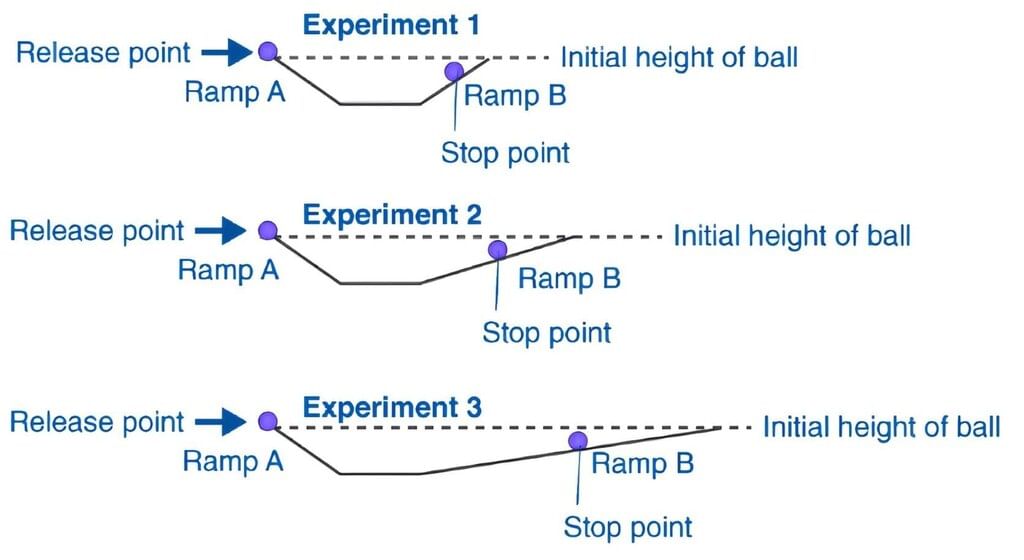

Galileo used two inclined planes, as shown in the figure, and made the ball roll down the first plane and climb up the other. He concluded that, if the planes are smooth, the final height achieved by the ball is nearly the same as the height through which it rolls from the first plane. In the second experiment, the slope of the second inclined plane was decreased and the ball was made to roll again. Here, the ball still reaches the same height, and in doing so, it travels a longer distance. According to the observation, when the slope of the second plane was decreased to zero, that is, the plane was made horizontal, the ball was supposed to travel an infinite distance, that is the motion never ceases.
Although due to the opposing friction of the plane, the object does come to rest after a finite distance but under ideal conditions, when there is no friction, the ball would continue to move with constant velocity on the horizontal plane. With this conclusion, the statements of Aristotle were proved wrong. He concluded that it was incorrect to assume that a net force was needed to keep a body in uniform motion and the state of rest and state of uniform motion as equivalent.

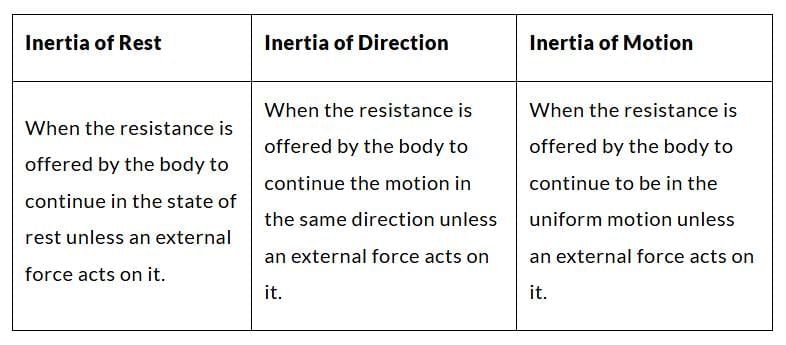

Following are the three types of inertia:

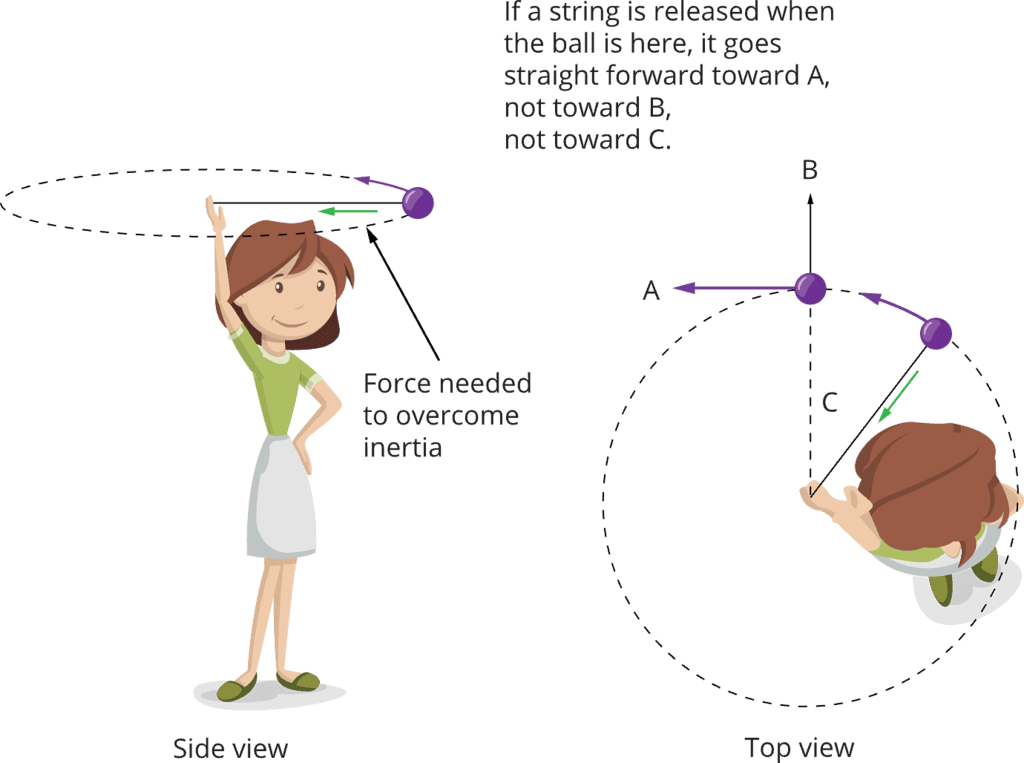

Inertia of Rest | Inertia of Direction | Inertia of Motion |
When the resistance is offered by the body to continue in the state of rest unless an external force act on it. | When the resistance is offered by the body to continue the motion in the same direction unless an external force act on it. | When the resistance is offered by the body to continue to be in the uniform motion unless an external force act on it. |
Sir Isaac Newton published three laws in the 17th century. In this article, we are going to talk about Newton’s 1st law. This law is an introduction to motion of the object and the force acting on it. In other words, it deals with the motion of an object and its relation to force.
Newton’s first law states that
a body remains in the state of rest or uniform motion in a straight line unless and until an external force acts on it.
Putting Newton’s 1st law of motion in simple words, a body will not start moving until and unless an external force acts on it. Once it is set in motion, it will not stop or change its velocity until and unless some force acts upon it once more. The first law of motion is sometimes also known as the law of inertia.
There are two conditions on which the 1st law of motion is dependent:
An external force is defined as the change in the mechanical energy that is either the kinetic energy or the potential energy in an object. These forces are caused by external agents. Examples of external forces are friction, normal force and air resistance.

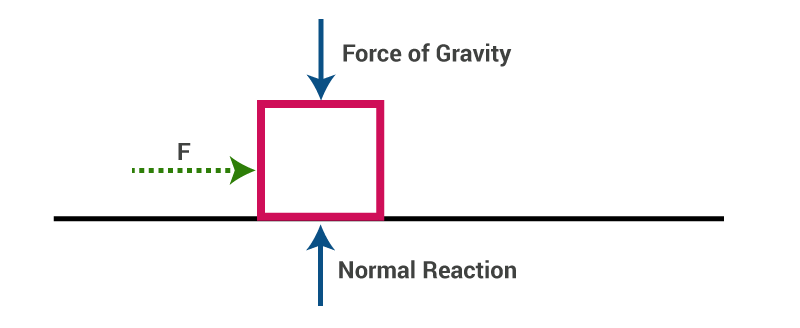

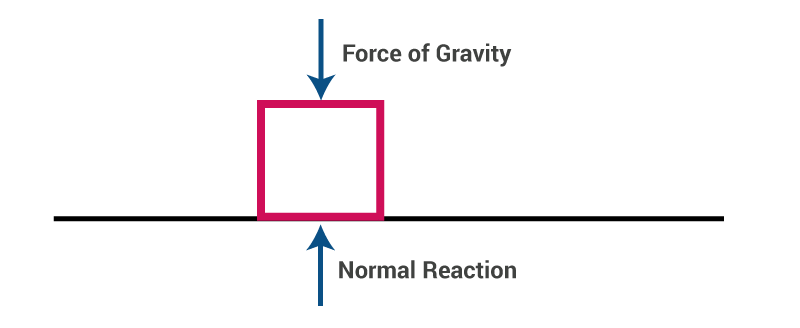

Let us take a block on a smooth surface. By smooth, we mean that there is no friction acting on the surface. The block is at rest, that is, it is not moving. Now, let us examine the forces acting on the block. The only forces acting on the block are the force of gravity and the normal reaction by the surface. There is no force acting on it in the horizontal direction. Since the forces in the vertical direction are equal to each other in magnitude, they cancel each other out, and hence there is no external force on the block. Since this block is at rest, we can say that it confirms Newton’s first law of Motion.

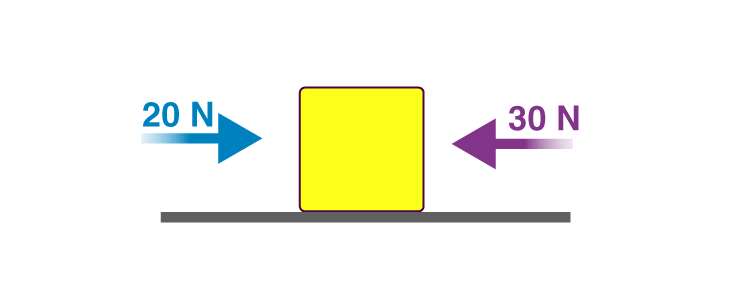

Now, if we apply a constant force F on the block in a horizontal direction, it will start moving with some constant acceleration, in the direction of the applied force.
Thus, the first law of motion is confirmed again.
Note: Newton’s laws are valid only in inertial frames of reference.
Wearing a seat belt in a car while driving is an example of Newton’s 1st law of motion. If an accident occurs, or if brakes are applied to the car suddenly, the body will tend to continue its inertia and move forward, probably proving fatal. To prevent such accidents seat belts are used which stops your body from moving forward in inertia avoiding danger.
What are the major concepts involved in the topic?

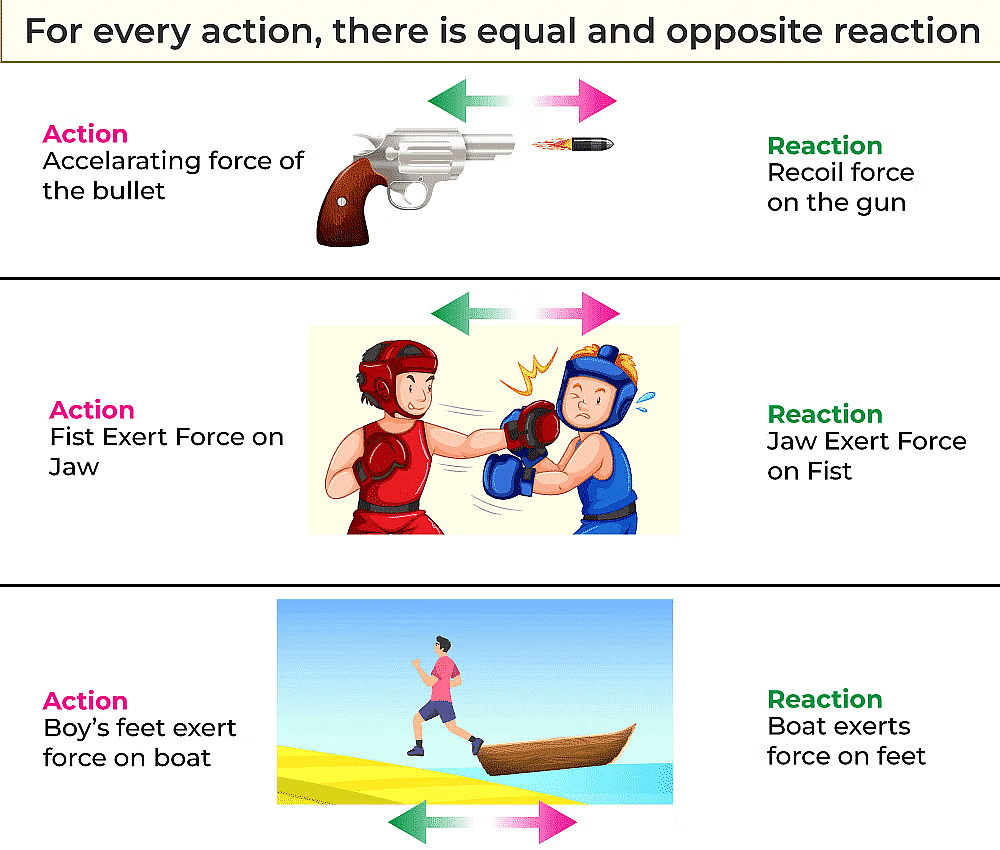

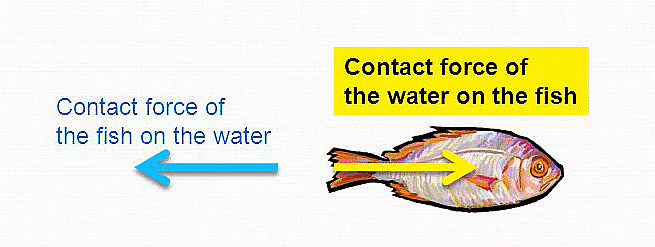

The major concepts involve Frame of reference, Newton’s First law of motion (Law of Inertia), Newton’s Second law of motion, Newton’s Third law of motion (For every action there is an equal and opposite reaction) and constraint equations.

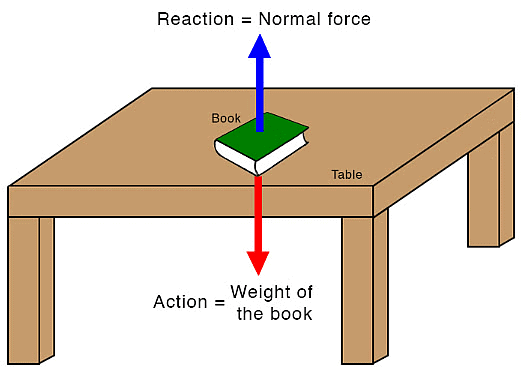

What are the characteristics of normal force?
It is a force that always acts perpendicular to the surface of contact.
What do we understand by a free body diagram?

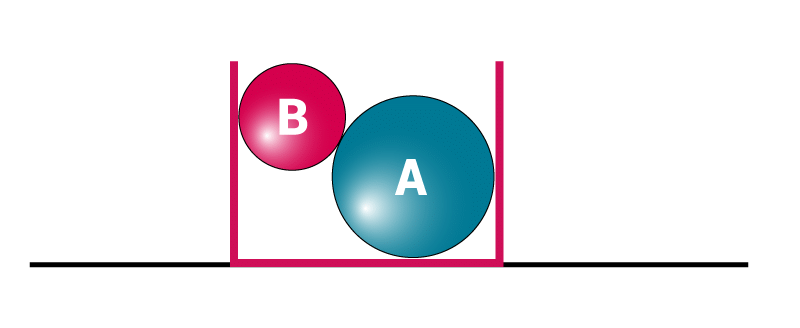

A free body diagram represents all the forces acting on the body. For example,

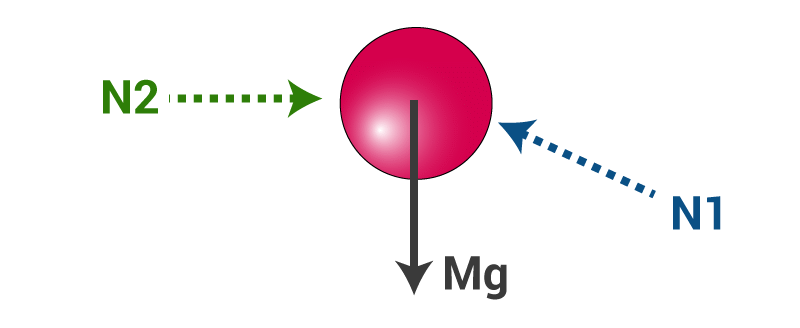

So, the FBD for sphere B will be as shown below,
What are the steps to solve a problem on Newton’s laws of motion?

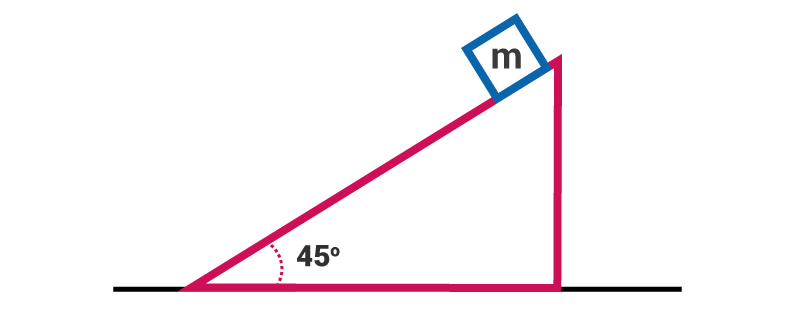

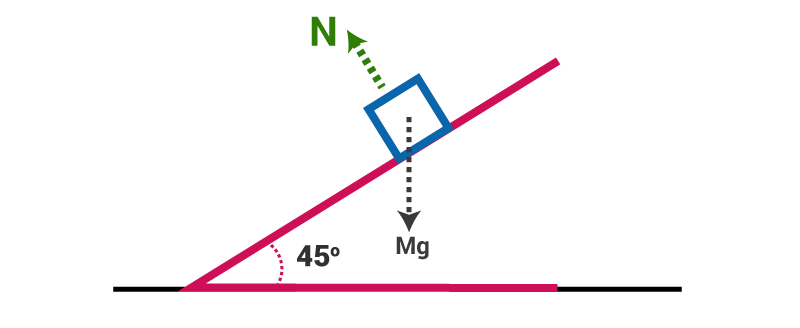

Let us take the following example,
The wedge is fixed, and we need to find the acceleration of the block of mass m along the incline.
Step 1: Draw the F.B.D of the block,
Step 2: Writing the force equation taking our own axis, in this case, we take two axes one along the plane and the other perpendicular to it.
F_{incline} = mg sin45^{∘}
VF_{Normal} = N – mg cos45^{∘}
Step3: Calculating acceleration using the second law of motion mg sin45^{∘} = ma
What is the constraint equation?

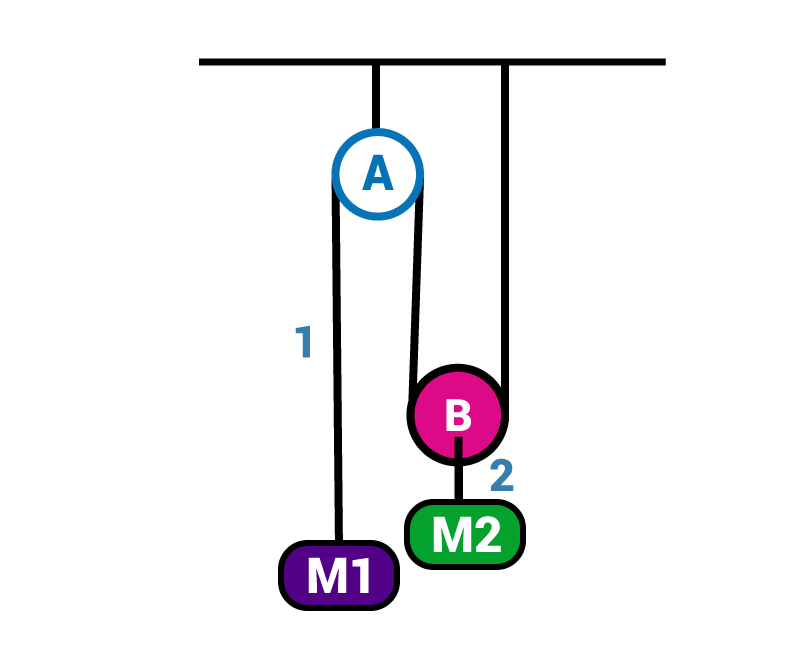

When the motion of one body is governed by another or in other words when the motion of two or more bodies is interlinked. The equation governing such motion is known as the constraint equation. For example:
If we draw the FBD and write equations we will get,
M_{1.g} – T = M_{1}.a_{1}
2T – M_{2}.g = M_{2}.a_{2}
We can see there are two equations and three unknowns: a_{1}, a_{2} and T. So, we need one more equation and that will be the constraint equation.
