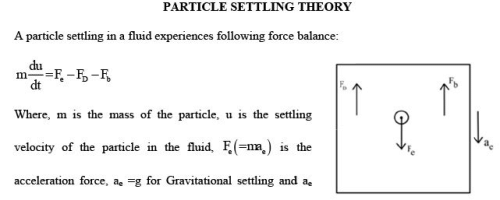

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

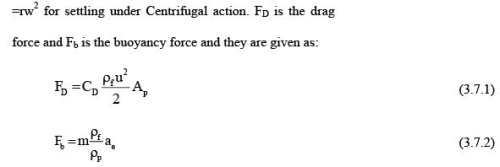

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

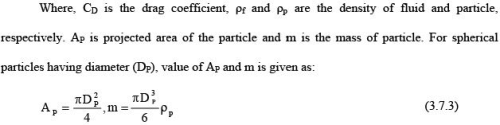

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

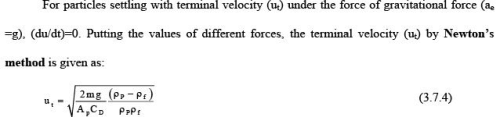

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)



Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)   (3.7.5)


Variation of CD (Drag-coefficient)

In laminar zone, Stoke’s law is applicable

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)  (3.7.6)

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)   (3.7.7)

For transition zone, Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE) (3.7.8)



For turbulent zone, CD is independent of Re and CD=0.4

For non-spherical particles, formula for Reynold number and settling velocity calculation are modified using the shape factor ( φ ) [1]:

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)  (3.7.9)

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)   (3.7.10)

Problem 3.7.1: A sand particle has an average diameter of 1 mm and a shape factor of 0.90 and a specific gravity of 2.1, determine the terminal velocity of the particle settling in water at 20 oC (kinematic viscosity of water=1.003×10-6 m2/s and specific gravity=1). Drag coefficient can be computed using the following equation:

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Solution: kinematic viscosity(V) = Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

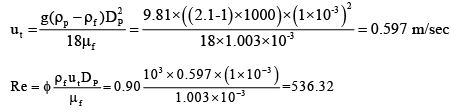

Settling velocity using stokes law is:

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Since Re>1, therefore, Newton’s law should be used for finding terminal velocity in transition zone. For initial assumption of settling velocity, stoke’s law is used. This initially assumed velocity is used to determine the Reynold number which is further used to find settling velocity. This iterative procedure is repeated till initial assumed velocity is approximately equal to settling velocity calculated from Newton’s equation.

Initial drag coefficient is calculated as:

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

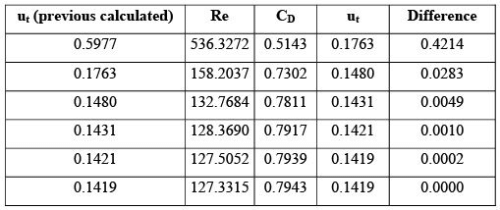

Now, iterative procedure is continued:

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Final settling velocity=0.1419 m/s.


TYPES OF GRAVITATIONAL SETTLING PHENOMENON

(i) Discrete particle settling: Applicable for very low concentration solids

  • Particles settle as individual entities
  • No interaction between particles

(ii) Flocculation settling: Applicable for dilute suspension of particles that coalesce or flocculate

  • By flocculation, particle size increases and terminal velocity increases.
  • Settling can be increased by addition of some ballasting agent such as polymers.

(iii) Hindered settling

  •  For suspension of intermediate settling.
  • In this case, particles are such close together that the inter-particle force due to one hinders the settling of other particle.
  • The particles remain in fixed position with respect to each other and particles settles as a whole

(iv) Compression settling

  • Case in which particles are in such high concentration that a whole structure is formed.
  • Compression takes place due to weight of whole mass which continuously increases.
  • A clear water is formed above compression zone



CLASSIFICATION OF SEDIMENTATION TANKS

  • Grit chamber: For removal of sand, grits, etc.
  • Plain sedimentation tank: For removal of settleable solids.
  • Chemical precipitation tank: for removal of very fine suspended particles by adding coagulants, etc
  • Septic tanks: For doing sedimentation and sludge digestion together in households
  • Secondary settling tanks: After activated sludge or trickling filter treatment systems.


SCOUR VELOCITY

Maximum horizontal velocity though the tank which does not allows resuspension (scouring) of settled particles. It is given as [1]:

 Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE) (3.8.1)
 Where, f is the Darcy–Weisbach friction factor (unit-less) and its value varies in the range 0.02- 0.03; k is cohesion constant that depends upon the type of material being scoured (unit-less). Its value varies in the range of 0.04- 0.06. For sticky interlocking matter k=0.6 whereas for ungrounded sand k=0.4.

Important point in design of sedimentation tank  Assume t is the detention time for which a suspension is detained in the settling tank having height H, length L and width W. Also assume, VH is the horizontal velocity and ut is the terminal settling velocity of the target particle. Now, Cross-sectional area of tank (AC)=H×W Surface area of tank (A)=L×W If Q is the flow rate of wastewater into the tank,

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)  (3.8.2)
 Since the target particle should not re-suspend during its flow along the length of the tank, therefore, detention time

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE) (3.8.3)
 Also, the target particle should settle down before it reaches the outlet, therefore,

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE) (3.8.4)
 Combining,

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE) (3.8.5)

This expression gives following important points:

  • The terminal velocity should be ≥ surface loading of the tank.
  • Surface area is more important than the height of the settling tank.
  • Higher the surface area, higher will be the removal efficiency and more will be the removal of finer particles.
  • All particles having settling velocity ut ≥ vo will be completed removed.
  • For particles having ut < vo, only ut/vo only fraction will be removed.


Problem 3.8.1: A municipal wastewater plant is to be designed to treat maximum flow rate of 60000 m3/d. Target particle for settling has the following characteristics: DP=200×10-6 m, k=0.05, f=0.025, ρP=1.25×103 kg/m3. For a rectangular classifier having ratio of length to width>6, overflow rate is at-least four times the settling velocity and horizontal velocity at-most one-third of the scour velocity.  (a) Find the dimensions of the rectangular tank  (b) Determine detention time

Solution:

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Actual horizontal velocity=VH/3=0.02951 m/s.

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)
Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Overflow rate=3×u= 21 .7 6 x 10 -3 m / s

If W is the width, L is the length and H is the height of the rectangular settling basin,

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Also given: Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)

W=2.305 m,
 L=6×2.305=13.83 m
 H=23.54/2.305=10.21 m
 Volume of tank, V=LWH=325.47 m3

Detention time, Setting & Sedimentation Notes | Study Environmental Engineering - Civil Engineering (CE)
