Parallel Operation of two Generators


When two synchronous generators are connected in parallel, they have an inherent tendency to remain in step, on account of the changes produced in their armature currents by a divergence of phase. Consider identical machines 1 and 2, Fig. 35 in parallel and working on to the same load. With respect to the load, their e.m.fs are normally in phase: with respect to the local circuit formed by the two armature windings, however, their e.m.fs are in phase-opposition.

Suppose there to be no external load. If machine 1 for some reason accelerates, its e.m.f. will draw ahead of that of machine 2. The resulting phase difference 2δ causes e.m.fs to lose phase-opposition in the local circuit so that there is in effect a local e.m.f Es which will circulate a current Is in the local circuit of the two armatures. The current Is flows in the synchronous impedance of the two machines together, so that it lags by θ = arc tan(xs/r) ≈ 90 on Es on account of the preponderance of reactance inZsIs therefore flows out of machine 1 nearly in phase with the e.m.f., and enters 2 in opposition to the e.m.f. Consequently machine 1 produces a power P≈ E1 Is as a generator, and supplies it (I 2R losses excepted) to 2 as a synchronous motor. The synchronizing power Ps tends to retard the faster machine 1 and accelerate the slower, 2, pulling the two back into step.

Within the limits of maximum power, therefore, it is not possible to destroy the synchronous running of two synchronous generators in parallel, for a divergence of their angular positions results in the production of synchronizing power, which loads the forward machine and accelerates the backward machine to return the two to synchronous running.
The development of synchronizing power depends on the fact that the armature impedance is preponderating reactive. If it were not, the machines could not operate stably in parallel: for the circulating current Is would be almost in phase- quandrature with the generated e.m.f.’s, and would not contribute any power to slow the faster or speed up the slower machine.

When both machines are equally loaded pn to an external circuit, the synchronizing power is developed in the same way as on no load, the effect being to reduce the load of the slower machine at the same time as that of the faster machine is increased. The conditions are shown in Fig. 35, where I1, I2 are the equal load currents of the two machines before the occurrence of phase displacement, and I1 , I2 are the currents as changed by the circulation of the synchronizing current Is .
The argument above has been applied to identical machines. Actually, it is not essential for them to be identical, nor to have equal excitations nor power supplies. In

Parallel Operation of Two Generators | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)Parallel Operation of Two Generators | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Parallel Operation of Two Generators | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)Parallel Operation of Two Generators | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

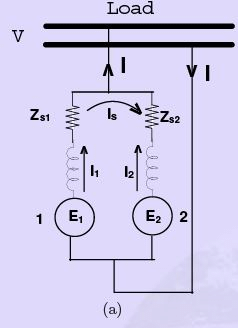

Figure 35: Parallel operation

Parallel Operation of Two Generators | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

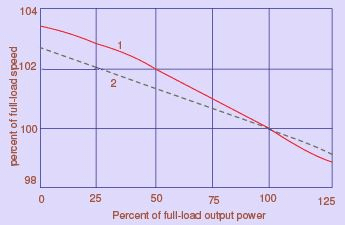

Figure 36: Governer Characteristic

general, the machines will have different synchronous impedance Zs1, Zs2; different e.m.f.’s E1 and Eand different speed regulations. The governors of prime movers are usually arranged so that a reduction of the speed of the prime mover is necessary for the increase of the power developed. Unless the governor speed/load characteristics are identical the machines can never share the total load in accordance with their ratings. The governor characteristics take the form shown in Fig. 36. If the two are not the same, the load will be shared in accordance with the relative load values at the running speed, for synchronous machines must necessarily run at identical speeds.

The document Parallel Operation of Two Generators | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE) is a part of the Electrical Engineering (EE) Course Electrical Engineering SSC JE (Technical).
All you need of Electrical Engineering (EE) at this link: Electrical Engineering (EE)
23 videos|89 docs|42 tests

Top Courses for Electrical Engineering (EE)

FAQs on Parallel Operation of Two Generators - Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

1. What is the purpose of parallel operation of two generators?
Ans. The purpose of parallel operation of two generators is to increase the overall power capacity and reliability of the electrical system. By connecting multiple generators in parallel, they can share the load, ensuring a stable power supply even if one generator fails.
2. How does parallel operation of generators work?
Ans. Parallel operation of generators involves synchronizing the voltage, frequency, and phase sequence of the generators before connecting them together. Once synchronized, the generators can be connected in parallel using appropriate switchgear and control systems. Load sharing between the generators is achieved through automatic load-sharing controllers.
3. What are the benefits of parallel operation of generators?
Ans. There are several benefits of parallel operation of generators. Firstly, it increases the total power capacity of the system, allowing for the addition of more loads. Secondly, it enhances system reliability as the failure of one generator does not lead to a complete loss of power. Lastly, it improves the efficiency of the generators by operating them closer to their rated capacity.
4. What precautions should be taken during parallel operation of generators?
Ans. During parallel operation of generators, it is important to ensure that the voltage, frequency, and phase sequence of the generators are properly synchronized. Additionally, protective devices such as overcurrent, under-voltage, and reverse power relays should be in place to prevent any abnormal conditions. Adequate cooling and ventilation should also be provided to prevent overheating of the generators.
5. Can generators with different power ratings be operated in parallel?
Ans. Generators with different power ratings can be operated in parallel, but it requires additional equipment and careful consideration. In such cases, load sharing between the generators may not be proportional to their power ratings and additional control measures, such as droop control or load sharing controllers, may be needed to ensure proper load sharing. It is generally recommended to operate generators with similar power ratings in parallel for efficient and reliable operation.
