Metallurgy process - JEE PDF Download

Can any one provide me notes of metallurgy?
Ref: https://edurev.in/question/700149/Can-any-one-provide-me-notes-of-metallurgy-

Metallurgy is defined as a process that is used for the extraction of metals in their pure form. The compounds of metals mixed with soil, limestone, sand, and rocks are known as minerals. Metals are commercially extracted from minerals at low cost and minimum effort. These minerals are known as ores. A substance which is added to the charge in the furnace to remove the gangue (impurities) is known as flux. Metallurgy deals with the process of purification of metals and the formation of alloys.

Metallurgy process - JEE

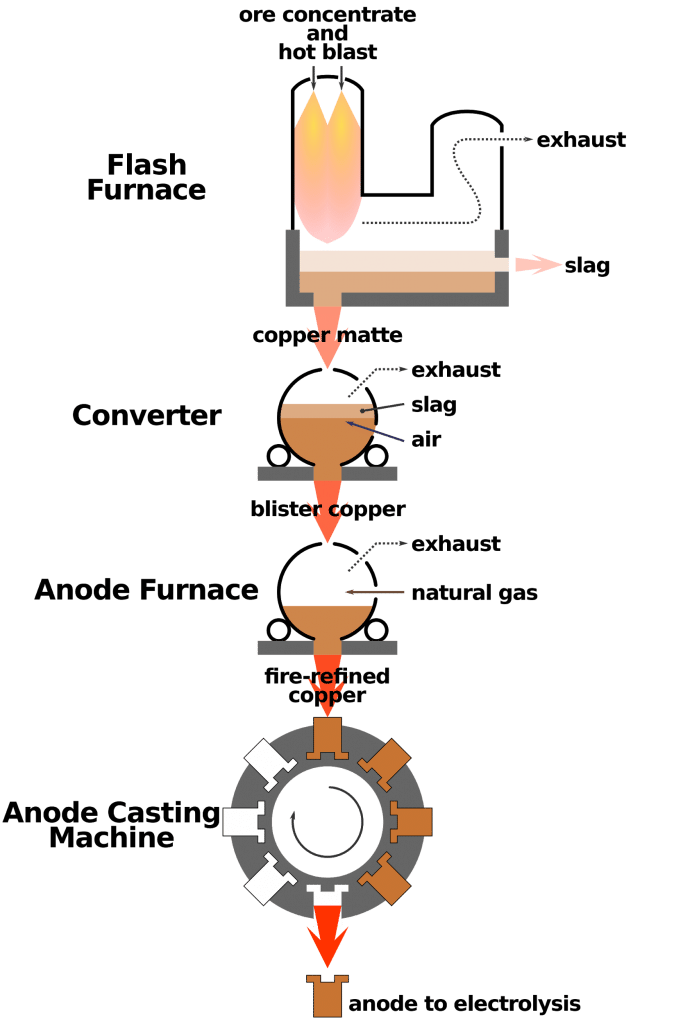

Copper Flash Smelting Process

Principles of Metallurgy:

The metallurgical process can be classified as the following:

1. Crushing and grinding: The first process in metallurgy is crushing of ores into a fine powder in a crusher or ball mill. This process is known as pulverization.

2. The concentration of ores: The process of removing impurities from ore is known as a concentration of minerals or ore dressing. In metallurgy, we concentrate the ores mainly by the following methods.

3. Hydrolytic method: In this method, we pour the ore over a sloping, vibrating corrugated table with grooves. A jet of water is allowed to flow over the surface. The denser ore particles settle in the grooves, and the impurities are washed away by water.

4. Magnetic separation: In this case, the crushed ore is placed on a conveyor belt. This belt rotates around two wheels in which one of the wheels is magnetic, and therefore the magnetic particles get attracted to the magnetic wheel and fall apart from the non-magnetic particles.

5. Froth floatation: In this process, we take the crushed ore in a large tank which contains oil and water. A current of compressed air is passed through it. The ore gets wet by oil and is separated from the impurities in the form of froth. Ore is lighter, and so it comes on the surface and impurities are left behind.

6. Roasting and calcination: In metallurgy, the process of heating a concentrated ore in the presence of oxygen is known as roasting. This process is applied in a case of sulfide ores. For ores containing carbonate or hydrated oxides, heating is done in the absence of air to melt the ores, and this process is known as calcination.

We have briefly seen the process of metallurgy used commercially for the extraction of different elements.

The document Metallurgy process - JEE is a part of JEE category.
All you need of JEE at this link: JEE
Are you preparing for JEE Exam? Then you should check out the best video lectures, notes, free mock test series, crash course and much more provided by EduRev. You also get your detailed analysis and report cards along with 24x7 doubt solving for you to excel in JEE exam. So join EduRev now and revolutionise the way you learn!
Sign up for Free Download App for Free

FAQs on Metallurgy process - JEE

1. What is metallurgy and why is it important in the field of engineering?
Ans. Metallurgy is the science and technology of extracting metals from their ores and modifying their properties for various applications. It is important in engineering because metals play a crucial role in the development of infrastructure, manufacturing of machinery, and construction of various structures.
2. What are the different types of metallurgical processes?
Ans. There are several types of metallurgical processes, including pyrometallurgy, hydrometallurgy, electrometallurgy, and physical metallurgy. Pyrometallurgy involves using high temperatures to extract and refine metals. Hydrometallurgy utilizes aqueous solutions to extract metals. Electrometallurgy involves using electrolysis to obtain pure metals. Physical metallurgy focuses on studying the physical and mechanical properties of metals.
3. How is iron extracted from its ore using metallurgical processes?
Ans. Iron is commonly extracted from its ore, hematite, through a process called smelting. In this process, the ore is heated with carbon in a blast furnace. The carbon reacts with oxygen in the ore, forming carbon dioxide and releasing molten iron. The impurities in the ore combine with the limestone flux to form slag, which is removed from the furnace.
4. What is an alloy and why are they important in metallurgy?
Ans. An alloy is a mixture of two or more metals, or a metal and a non-metal. Alloys are important in metallurgy because they possess superior properties compared to pure metals. By combining different metals, engineers can create alloys with enhanced strength, hardness, corrosion resistance, and other desirable characteristics. Alloys are extensively used in industries such as aerospace, automotive, and construction.
5. What is heat treatment in metallurgy and how does it affect the properties of metals?
Ans. Heat treatment is a metallurgical process that involves heating and cooling a metal to alter its physical and mechanical properties. It can be used to increase the hardness, improve ductility, enhance machinability, and modify other properties of metals. Heat treatment methods include annealing, quenching, tempering, and normalizing. The specific heat treatment process used depends on the desired outcome and the type of metal being treated.
