A shaft is said to be under pure torsion when it is subjected to two equal & opposite couples in a plane perpendicular to the longitudinal axis of the shaft (i.e. twisting couples) in such a way that the magnitude of twisting moment remains constant throughout the length of the shaft.
It’s magnitude is given as the product of the force and the distance between the force.

Torque, T = p x d

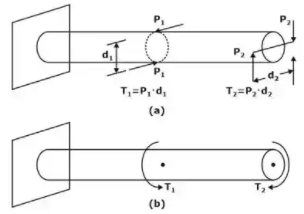

Magnitude and representation of Torque Magnitude and representation of Torque

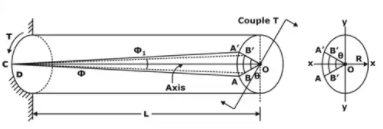

Figure shows a bar or shaft of circular section, subjected to torque T. Such a case is a case of pure torsion,

Shaft is under pure torsionShaft is under pure torsion

Torsion | Strength of Materials (SOM) - Mechanical Engineering
J/R is known as torsional section modulus.,& GJ is known as torsional rigidity of the bar or the shaft.
The above relation states that the intensity of shear stress at any point in the cross-section of a shaft subjected to pure torsion is proportional to its distance from the center and the variation of shear stress with respect to radial distance is linear.

Variation of Torsional Shear Stress Variation of Torsional Shear Stress

Polar moment of inertia

Torsion | Strength of Materials (SOM) - Mechanical Engineering

(a) For a solid shaft of circular section,
Torsional section modulus

Torsion | Strength of Materials (SOM) - Mechanical Engineering

(b) For a hollow circular shaft,

Torsion | Strength of Materials (SOM) - Mechanical Engineering

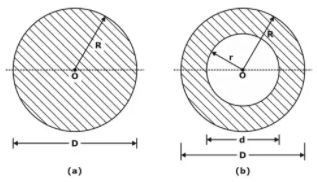

Shear Stress Distribution in Different Sections

It is zero at the center and increases in the radially outward direction and become maximum at the outer periphery And for hollow circular shaft, it is minimum at inner radius and maximum at the outer periphery.

  • Solid circular section

Torsion | Strength of Materials (SOM) - Mechanical Engineering


  • Hollow circular section

Torsion | Strength of Materials (SOM) - Mechanical Engineering

Power Transmitted

Torsion | Strength of Materials (SOM) - Mechanical Engineering

Design of Shaft

While designing a shaft, we calculate the maximum torque that can be transmitted from the shaft.
The resisting couple should be equal to the applied torque. Hence

Torsion | Strength of Materials (SOM) - Mechanical Engineering

Maximum Torque Transmitted by a Circular Shaft

  1. Circular Solid Shaft


    The maximum torque transmitted by a circular solid shaft is obtained from the maximum shear stress-induced at the outer surface of the solid shaft.Torsion | Strength of Materials (SOM) - Mechanical Engineering
  2. Hollow Circular Shafts


    Torque transmitted by a hollow circular shaft Is obtained in the same way as for a solid shaft,
    Torsion | Strength of Materials (SOM) - Mechanical Engineering

Composite Shaft

  • Series connection

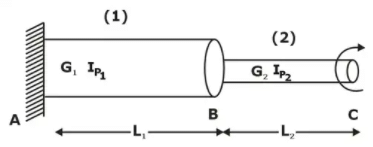

    If two or more shaft of different material, diameter or basic forms are connected together in such a way that each carries the same torque, then the shafts are said to be connected in series & the composite shaft so produced is therefore termed as series connection.

Torsion | Strength of Materials (SOM) - Mechanical Engineeringfor two shafts in series T1 = T2 = T
θAC = θAB + θBC

Torsion | Strength of Materials (SOM) - Mechanical Engineering

  • Parallel connection


    If two shafts are loaded in such a way that angle of twist on both the shaft is the same then this type of connection is known as a parallel connection of shaft.

Torsion | Strength of Materials (SOM) - Mechanical EngineeringFor parallel connection of shaft
Torque is cumulative, T = T1 + Tand θ1 = θ2
T1L1 / G1J1 = T2L2 / G2J2

Strain Energy in Torsion

Consider a solid shaft of length L, under the action of torque T.
The torsional strain energy of shaft is equal to the work done in twisting.

Torsion | Strength of Materials (SOM) - Mechanical Engineering

Torsion | Strength of Materials (SOM) - Mechanical Engineering

Torsion | Strength of Materials (SOM) - Mechanical Engineering

Torsional Stiffness (K)

Torsional stiffness is defined as the amount of torque or twisting couple required to produce a twist of unit radian. And it represented by ‘K’
θ = TL / GJ, K = GJ / L
