Introduction to Trigonometric Ratios of a Triangle

Trigonometry is all about triangles or to be more precise about the relation between the angles and sides of a right-angled triangle. There are three sides of a triangles named as Hypotenuse, Adjacent, and Opposite. The ratio between these sides based on the angle between them are called Trigonometric Ratios.
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10

As given in the figure in a right-angle triangle

  • The side opposite to the right angle is called the hypotenuse
  • The side opposite to an angle is called the opposite side
    (i) For angle C opposite side is AB
    (ii) For angle A opposite side is BC
  • The side adjacent to an angle is called the adjacent side
    (i) For angle C adjacent side is BC
    (ii) For angle A adjacent side is AB

Trigonometric ratios

There are 6 basic trigonometric relations that form the basics of trigonometry. These 6 trigonometric relations are ratios of all the different possible combinations in a right-angled triangle.
These trigonometric ratios are called

  • Sine
  • Cosine
  • Tangent
  • Cosecant
  • Secant
  • Cotangent

The mathematical symbol θ is used to denote the angle.
A. Sine (sin)
Sine of an angle is defined by the ratio of lengths of sides which is opposite to the angle and the hypotenuse. It is represented as sinθ
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10

B. Cosine (cos)
Cosine of an angle is defined by the ratio of lengths of sides which is adjacent to the angle and the hypotenuse. It is represented as cosθ
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10C. Tangent (tan)

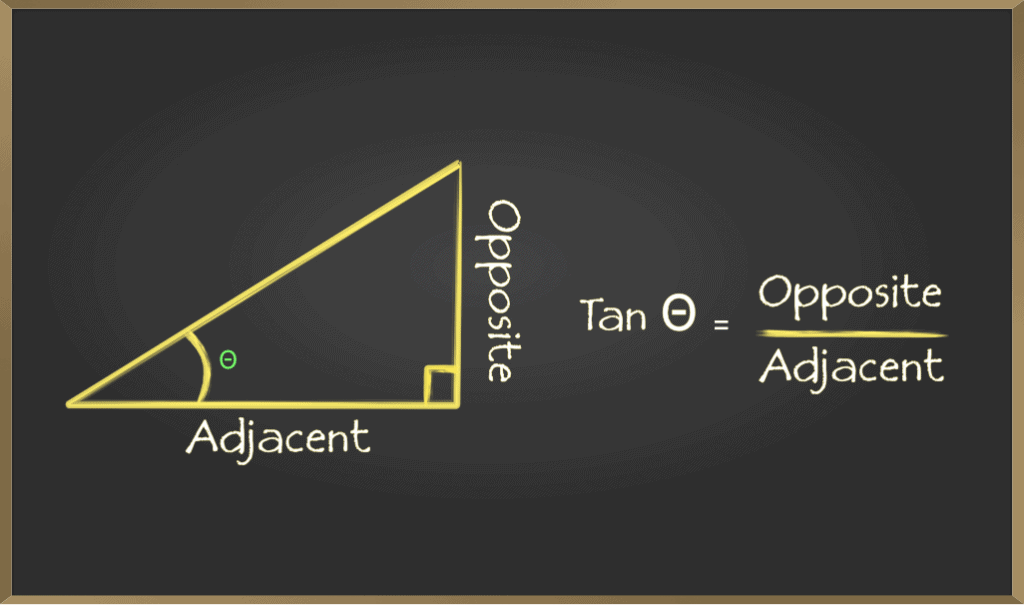

Tangent of an angle is defined by the ratio of length of sides which is opposite to the angle and the side which is adjacent to the angle. It is represented as tanθ
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10D. Cosecant (csc)
Cosecant of an angle is defined by the ratio of length of the hypotenuse and the side opposite the angle. It is represented as cscθ
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10E. Secant(sec)
Secant of an angle is defined by the ratio of length of the hypotenuse and the side and the side adjacent to the angle. It is represented as secθ
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10F. Cotangent(cot)
Cotangent of an angle is defined by the ratio of length of sides which is adjacent to the angle and the side which is opposite to the angle. It is represented as cotθ.
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10

Trigonometric table

Trigonometric Ratio

Abbreviation

Formula

sine

sin

Opposite/Hypotenuse

cosine

cos

Adjacent/Hypotenuse

tangent

tan

Opposite/Adjacent

cosecant

csc

Hypotenuse/Opposite

secant

sec

Hypotenuse/Adjacent

cotangent

cot

Adjacent/Opposite

Solving for a side in right triangles with trigonometry
This is one of the most basic and useful use of trigonometry using the trigonometric ratios mentioned is to find the length of a side of a right-angled triangle but to do, so we must already know the length of the other two sides or an angle and length of one side.

Steps to follow if one side and one angle are known:

  • Choose a trigonometric ratio which contains the given side and the unknown side
  • Use algebra to find the unknown side

Example: In a right angled ΔABC ∠B — 30 length of side A B is 4 find length of BC. given tan30 = 1/√3
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10Solution:Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10

Steps to follow if two sides are known:

  • Mark the known sides as adjacent, opposite or hypotenuse with respective to anyone of the acute angles in the triangle.
  • Decide on which trigonometric ratio can be found out from the above table.
  • Find the angle (X)
  • Use an trigonometric ratio with respect to X which is a ratio of a known side and an unknown side.
  • Use algebra to find the unknown side.

Trigonometric Ratios of Some Specific Angles

Trigonometry is all about triangles or to more precise about the relation between the angles and sides of a right-angled triangle. In this article we will be discussing about the ratio of sides of a right-angled triangle respect to its acute angle called trigonometric ratios of the angle and find the trigonometric ratios of specific angles: 0°, 30°, 45°, 60°, and 90°.

Consider the following triangle:
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10

The side BA is opposite to angle ∠BCA so we call BA the opposite side to ∠C and AC is the hypotenuse, the other side BC is the adjacent side to ∠C.

Trigonometric Ratios of angle C

Sine: Sine of ∠C is the ratio between BA and AC that is the ratio between the side opposite to C and the hypotenuse.
Sin C = BA/AC

Cosine: Cosine of ∠C is the ratio between BC and AC that is the ratio between the side adjacent to C and the hypotenuse.
Cos C = BC/AC

Tangent: Tangent of ∠C is the ratio between BA and BC that is the ratio between the side opposite and adjacent to C
Tan C = BA/BC

Cosecant: Cosecant of ∠C is the reciprocal of sin C that is the ratio between the hypotenuse and the side opposite to C.
csc C = BA/AC

Secant: Secant of ∠C is the reciprocal of cos C that is the ratio between the hypotenuse and the side adjacent to C.
sec C = BA/AC

Cotangent: Cotangent of ∠C is the reciprocal of tan C that is the ratio between the side adjacent to C and side opposite to C.
Cot C = BA/AC

Finding trigonometric ratios for angle 0°, 30°, 45°, 60°, 90°

A. For angles 0° and 90°
If an angle A = 0° then the length of the opposite side would be zero and hypotenuse = adjacent side and if A = 90° then the hypotenuse = opposite side. So by using the above formulas for the trigonometric ratios and if the length of the hypotenuse is a.
if A = 0°Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10if A = 90°Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10Here cosec 0, cot 0, tan 90 and sec 90 are not defined as at the particular angle it is divided by 0 which is undefined.

B. For angles 30° and 60°

Consider an equilateral triangle ABC. Since each angle in an equilateral triangle is 60°, therefore, ∠A = ∠B = ∠C = 60°.
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10∆ABD is a right triangle, right-angled at D with ∠BAD = 30° and ∠ABD = 60°, Here ∆ADB and ∆ADC are similar as they are Corresponding parts of Congruent triangles(CPCT).Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10Now we know the values of AB, BD, and AD, So the trigonometric ratios for angle 30 areIntroduction: Trigonometric Ratios | Mathematics (Maths) Class 10For angle 60°Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10C. For angle 45°
In a right-angled triangle if one angle is 45° then the other angle is also 45° thus making it an isosceles right angle triangle
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10If the length of side BC = a then length of AB = a and Length of AC(hypotenuse) is a√2, thenIntroduction: Trigonometric Ratios | Mathematics (Maths) Class 10Result

Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10

Trigonometric Identities

An equation involving trigonometric ratios of an angle is called trigonometric Identity if it is true for all values of the angle. These are useful whenever trigonometric functions are involved in an expression or an equation. The six basic trigonometric ratios are sine, cosine, tangent, cosecant, secant, and cotangent. All these trigonometric ratios are defined using the sides of the right triangle, such as an adjacent side, opposite side, and hypotenuse side.

Proof of the Trigonometric Identities

For any acute angle θ, prove that
(i) tanθ = sinθ/cosθ
(ii) cotθ = cosθ/sinθ
(iii) tanθ . cotθ = 1
(iv) sin2θ + cos2θ = 1
(v) 1 + tan2θ = sec2θ
(vi) 1 + cot2θ = cosec2θ
Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10

Proof:
Consider a right-angled △ABC (fig. 1) in which ∠B = 90° and ∠A = 0°.
Let AB = x units, BC y units and AC = r units.
Then,
(i) tanθ = y/x = (y/r)/(x/r)     [dividing num. and denom. by r]
∴ tanθ = sinθ/cosθ
(ii) cotθ = x/y = (x/r)/(y/r)     [dividing num. and denom. by r]
∴ cotθ = cosθ/sinθ
(iii) tanθ . cotθ  = (sinθ/cosθ) . (cosθ/sinθ)
tanθ . cotθ = 1
Then, by Pythagoras’ theorem, we have
x2 + y= r2.
Now,
(iv) sin2θ + cos2θ  = (y/r)2 + (x/r)= ( y2/r2 + x2/r2)

= (x+ y2)/r2 = r2/r= 1 [x2+ y2 = r2]
sin2θ + cos2θ = 1
(v) 1 + tan2θ = 1 + (y/x)= 1 + y2/x2 = (y+ x2)/x= r2/x2 [x+ y= r2]
(r/x)= sec2θ
∴ 1 + tan2θ = sec2θ.
(vi) 1 + cot2θ = 1 + (x/y)= 1 + x2/y2 = (x+ y2)/y= r2/y2 [x+ y= r2]
(r2/y2) = cosec2θ
∴ 1 + cot2θ = cosec2θ.

Application of Trigonometric Identites

Application 1: Prove that (1 – sin2θ) sec2θ = 1
Proof:
We have:
LHS = (1 – sin2θ) sec2θ
= cos2θ . sec2θ
= cos2θ . (1/cos2θ)
=1
= RHS.
∴ LHS = RHS.

Application 2: Prove that (1 + tan2θ) cos2θ = 1
Proof:
We have:
LHS = (1 + tan2θ)cos2θ
= sec2θ . cos2θ
= (1/cos2θ) . cos2θ
= 1 = RHS.
∴ LHS=RHS.

Application 3: Prove that (cosec2θ – 1) tan²θ  = 1
Proof:
We have:
LHS = (cosec²θ – 1) tan2θ
= (1 + cot2θ – 1) tan2θ
= cot2θ . tan2θ
= (1/tan2θ) . tan2θ
= 1 = RHS.
∴ LHS=RHS.

Application 4: Prove that (sec4θ – sec2θ) = (tan2θ + tan4θ)
Proof:
We have:
LHS = (sec4θ – sec2θ)
= sec2θ(sec2θ – 1)
= (1 + tan2θ) (1 + tan2θ – 1)
= (1 + tan2θ) tan2θ
= (tan2θ + tan4θ)
= RHS
∴ LHS = RHS.

Application 5: Prove that √(sec2θ + cosec2θ) = (tanθ + cotθ)
Proof:
We have:
LHS = √(sec2θ + cosec2θ ) = √((1 + tan2θ) + (1 + cot2θ))
= √(tan2θ + cot2θ + 2)
= √(tan2θ + cot2θ + 2tanθ.cotθ )         (tanθ . cotθ = 1)
= √(tanθ + cotθ)2
= tanθ + cotθ = RHS
∴ LHS = RHS.

The document Introduction: Trigonometric Ratios | Mathematics (Maths) Class 10 is a part of the Class 10 Course Mathematics (Maths) Class 10.
All you need of Class 10 at this link: Class 10
124 videos|457 docs|77 tests

Top Courses for Class 10

FAQs on Introduction: Trigonometric Ratios - Mathematics (Maths) Class 10

1. What are the basic trigonometric ratios and how are they defined in a right triangle?
Ans.The basic trigonometric ratios are sine (sin), cosine (cos), and tangent (tan). They are defined in a right triangle as follows: - Sine of an angle (θ) is the ratio of the length of the opposite side to the length of the hypotenuse: \( \sin(θ) = \frac{\text{Opposite}}{\text{Hypotenuse}} \). - Cosine of an angle (θ) is the ratio of the length of the adjacent side to the length of the hypotenuse: \( \cos(θ) = \frac{\text{Adjacent}}{\text{Hypotenuse}} \). - Tangent of an angle (θ) is the ratio of the length of the opposite side to the length of the adjacent side: \( \tan(θ) = \frac{\text{Opposite}}{\text{Adjacent}} \).
2. What are the trigonometric ratios for the angles 30°, 45°, and 60°?
Ans.The trigonometric ratios for the angles 30°, 45°, and 60° are: - For 30°: \( \sin(30°) = \frac{1}{2} \), \( \cos(30°) = \frac{\sqrt{3}}{2} \), \( \tan(30°) = \frac{1}{\sqrt{3}} \). - For 45°: \( \sin(45°) = \frac{\sqrt{2}}{2} \), \( \cos(45°) = \frac{\sqrt{2}}{2} \), \( \tan(45°) = 1 \). - For 60°: \( \sin(60°) = \frac{\sqrt{3}}{2} \), \( \cos(60°) = \frac{1}{2} \), \( \tan(60°) = \sqrt{3} \).
3. How can trigonometric identities be useful in solving problems?
Ans.Trigonometric identities are useful in solving problems because they allow us to simplify complex trigonometric expressions and equations. For example, identities such as the Pythagorean identity (\( \sin^2(θ) + \cos^2(θ) = 1 \)) can help in transforming one function into another, making it easier to solve for unknown values. Additionally, identities like angle sum and difference identities help in calculating the trigonometric functions of angles that are not standard angles.
4. What are some common trigonometric identities to remember?
Ans.Some common trigonometric identities to remember include: - Pythagorean identities: \( \sin^2(θ) + \cos^2(θ) = 1 \), \( 1 + \tan^2(θ) = \sec^2(θ) \), \( 1 + \cot^2(θ) = \csc^2(θ) \). - Angle sum identities: \( \sin(a + b) = \sin(a)\cos(b) + \cos(a)\sin(b) \) and \( \cos(a + b) = \cos(a)\cos(b) - \sin(a)\sin(b) \). - Double angle identities: \( \sin(2θ) = 2\sin(θ)\cos(θ) \) and \( \cos(2θ) = \cos^2(θ) - \sin^2(θ) \).
5. How do you find the values of trigonometric ratios using a right triangle?
Ans.To find the values of trigonometric ratios using a right triangle, follow these steps: 1. Identify the angle for which you want to calculate the trigonometric ratios. 2. Label the sides of the triangle: opposite (the side opposite the angle), adjacent (the side next to the angle), and hypotenuse (the longest side). 3. Use the definitions of the trigonometric ratios: - For sine, divide the length of the opposite side by the hypotenuse. - For cosine, divide the length of the adjacent side by the hypotenuse. - For tangent, divide the length of the opposite side by the adjacent side. 4. Calculate the ratios using the side lengths to find the values.
