Introduction

  • Georg Ohm found that, at a constant temperature, the electrical current flowing through a fixed linear resistance is directly proportional to the voltage applied across it, and also inversely proportional to the resistance. This relationship between the Voltage, Current and Resistance forms the basis of Ohms Law and is shown below.

Ohms Law Relationship
Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)

By knowing any two values of the Voltage, Current or Resistance quantities we can use Ohms Law to find the third missing value. Ohms Law is used extensively in electronics formulas and calculations so it is “very important to understand and accurately remember these formulas”.

  • To find the Voltage, (V)
    [ V = I x R ]      V (volts) = I (amps) x R (Ω)
  • To find the Current, ( I )
    [ I = V ÷ R ]      I (amps) = V (volts) ÷ R (Ω)
  • To find the Resistance, ( R )
    [ R = V ÷ I ]      R (Ω) = V (volts) ÷ I (amps)

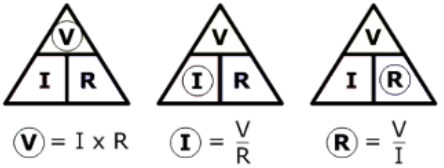

It is sometimes easier to remember this Ohms law relationship by using pictures. Here the three quantities of V, I and R have been superimposed into a triangle (affectionately called the Ohms Law Triangle) giving voltage at the top with current and resistance below. This arrangement represents the actual position of each quantity within the Ohms law formulas.

Ohms Law Triangle
Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)

Transposing the standard Ohms Law equation above will give us the following combinations of the same equation:
Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)

Then by using Ohms Law we can see that a voltage of 1V applied to a resistor of 1Ω will cause a current of 1A to flow and the greater the resistance value, the less current that will flow for a given applied voltage. Any Electrical device or component that obeys “Ohms Law” that is, the current flowing through it is proportional to the voltage across it (I α V), such as resistors or cables, are said to be “Ohmic” in nature, and devices that do not, such as transistors or diodes, are said to be “Non-ohmic” devices.

Electrical Power in Circuits

  • Electrical Power, (P) in a circuit is the rate at which energy is absorbed or produced within a circuit. A source of energy such as a voltage will produce or deliver power while the connected load absorbs it. Light bulbs and heaters for example, absorb electrical power and convert it into either heat, or light, or both. The higher their value or rating in watts the more electrical power they are likely to consume.
  • The quantity symbol for power is P and is the product of voltage multiplied by the current with the unit of measurement being the Watt (W). Prefixes are used to denote the various multiples or sub-multiples of a watt, such as: milliwatts (mW = 10-3W) or kilowatts (kW = 103W).
  • Then by using Ohm’s law and substituting for the values of V, I and R the formula for electrical power can be found as:

To find the Power (P)

[ P = V x I ]      P (watts) = V (volts) x I (amps)

Also:
[ P = V2 ÷ R ]      P (watts) = V2 (volts) ÷ R (Ω)

Also:
[ P = I2 x R ]      P (watts) = I2 (amps) x R (Ω)
Again, the three quantities have been superimposed into a triangle this time called a Power Triangle with power at the top and current and voltage at the bottom. Again, this arrangement represents the actual position of each quantity within the Ohms law power formulas.

The Power Triangle

Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)

  • and again, transposing the basic Ohms Law equation above for power gives us the following combinations of the same equation to find the various individual quantities:

Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)

  • So we can see that there are three possible formulas for calculating electrical power in a circuit. If the calculated power is positive, (+P) in value for any formula the component absorbs the power, that is it is consuming or using power. But if the calculated power is negative, (–P) in value the component produces or generates power, in other words it is a source of electrical power such as batteries and generators.

Electrical Power Rating

  • Electrical components are given a “power rating” in watts that indicates the maximum rate at which the component converts the electrical power into other forms of energy such as heat, light or motion. For example, a 1/4W resistor, a 100W light bulb etc.
  • Electrical devices convert one form of power into another. So for example, an electrical motor will covert electrical energy into a mechanical force, while an electrical generator converts mechanical force into electrical energy. A light bulb converts electrical energy into both light and heat.
  • Also, we now know that the unit of power is the WATT, but some electrical devices such as electric motors have a power rating in the old measurement of “Horsepower” or hp. The relationship between horsepower and watts is given as: 1hp = 746W. So for example, a two-horsepower motor has a rating of 1492W, (2 x 746) or 1.5kW.

Ohms Law Pie Chart

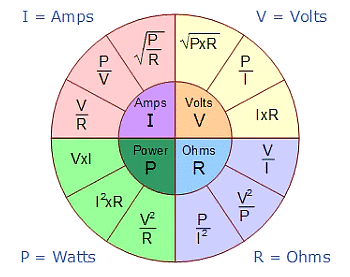

  • The relationship between the various values a little further, we can take all of the Ohm’s Law equations from above for finding Voltage, Current, Resistance and of course Power and condense them into a simple Ohms Law pie chart for use in AC and DC circuits and calculations as shown.
    Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)

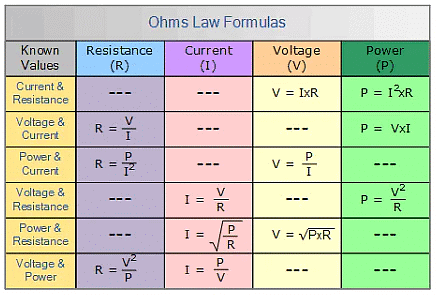

  • As well as using the Ohm’s Law Pie Chart shown above, we can also put the individual Ohm’s Law equations into a simple matrix table as shown for easy reference when calculating an unknown value.

Ohms Law Matrix Table

Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)

Ohms Law Example

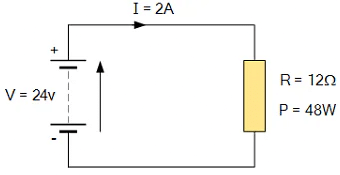

  • For the circuit shown below find the Voltage (V), the Current (I), the Resistance (R) and the Power (P).
    Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)
  • Voltage   [ V = I x R ] = 2 x 12Ω = 24V
    Current   [ I = V ÷ R ] = 24 ÷ 12Ω = 2A
    Resistance   [ R = V ÷ I ] = 24 ÷ 2 = 12 Ω
    Power   [ P = V x I ] = 24 x 2 = 48W
  • Power within an electrical circuit is only present when BOTH voltage and current are present. For example, in an open-circuit condition, voltage is present but there is no current flow I = 0 (zero), therefore V*0 is 0 so the power dissipated within the circuit must also be 0. Likewise, if we have a short-circuit condition, current flow is present but there is no voltage V = 0, therefore 0*I = 0 so again the power dissipated within the circuit is 0.
  • As electrical power is the product of V*I, the power dissipated in a circuit is the same whether the circuit contains high voltage and low current or low voltage and high current flow. Generally, electrical power is dissipated in the form of Heat (heaters), Mechanical Work such as motors, Energy in the form of radiated (Lamps) or as stored energy (Batteries).

Electrical Energy in Circuits

  • Electrical Energy is the capacity to do work, and the unit of work or energy is the joule ( J ). Electrical energy is the product of power multiplied by the length of time it was consumed. So if we know how much power, in Watts is being consumed and the time, in seconds for which it is used, we can find the total energy used in watt-seconds. In other words, Energy = power x time and Power = voltage x current. Therefore electrical power is related to energy and the unit given for electrical energy is the watt-seconds or joules.
    Electrical Energy = Power (W) x Time (s)
  • Electrical power can also be defined as the rate of by which energy is transferred. If one joule of work is either absorbed or delivered at a constant rate of one second, then the corresponding power will be equivalent to one watt so power can be defined as “1Joule/sec = 1Watt”. Then we can say that one watt is equal to one joule per second and electrical power can be defined as the rate of doing work or the transferring of energy.

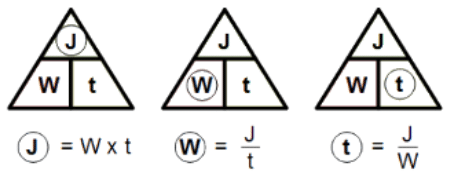

Electrical Power and Energy Triangle

Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)

  • or to find the various individual quantities:

Ohm`s Law & Power | Network Theory (Electric Circuits) - Electrical Engineering (EE)

  • We said previously that electrical energy is defined as being watts per second or joules. Although electrical energy is measured in Joules it can become a very large value when used to calculate the energy consumed by a component.
  • For example, if a 100 watt light bulb is left-“ON” for 24 hours, the energy consumed will be 8,640,000 Joules (100W x 86,400 seconds), so prefixes such as kilojoules (kJ = 103J) or megajoules (MJ = 106J) are used instead and in this simple example, the energy consumed will be 8.64MJ (mega-joules).
  • But dealing with joules, kilojoules or megajoules to express electrical energy, the maths involved can end up with some big numbers and lots of zero’s, so it is much more easier to express electrical energy consumed in Kilowatt-hours.
  • If the electrical power consumed (or generated) is measured in watts or kilowatts (thousands of watts) and the time is measure in hours not seconds, then the unit of electrical energy will be the kilowatt-hours,(kWhr). Then our 100 watt light bulb above will consume 2,400 watt hours or 2.4kWhr, which is much easier to understand the 8,640,000 joules.
  • 1 kWhr is the amount of electricity used by a device rated at 1000 watts in one hour and is commonly called a “Unit of Electricity”. This is what is measured by the utility meter and is what we as consumers purchase from our electricity suppliers when we receive our bills.
  • Kilowatt-hours are the standard units of energy used by the electricity meter in our homes to calculate the amount of electrical energy we use and therefore how much we pay. So if you switch ON an electric fire with a heating element rated at 1000 watts and left it on for 1 hour you will have consumed 1 kWhr of electricity. If you switched on two electric fires each with 1000 watt elements for half an hour the total consumption would be exactly the same amount of electricity – 1kWhr.
  • So, consuming 1000 watts for one hour uses the same amount of power as 2000 watts (twice as much) for half an hour (half the time). Then for a 100 watt light bulb to use 1 kWhr or one unit of electrical energy it would need to be switched on for a total of 10 hours (10 x 100 = 1000 = 1kWhr).
