What Is Electrostatic Potential?

The electrostatic potential, also known as the electric field potential, electric potential, or potential drop is defined as

The amount of work done to move a unit charge from a reference point to a specific point inside the field without producing an acceleration.

Clear all your JEE doubts with EduRev Join for Free

Join for Free

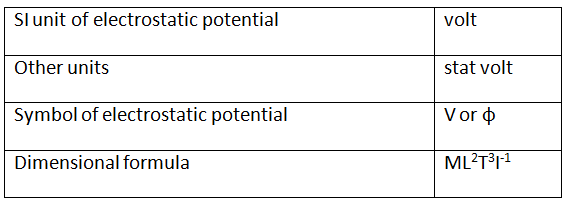

SI Unit of Electrostatic Potential

The SI unit of electrostatic potential is volt.

Electric Potential Formula

The following formula gives the electric potential energy of the system:

Where q₁ and q₂ are the two charges that are separated by the distance d.

Download the notes Electrostatic Potential: Definition, SI Unit and Formula

Download as PDF

Download as PDF

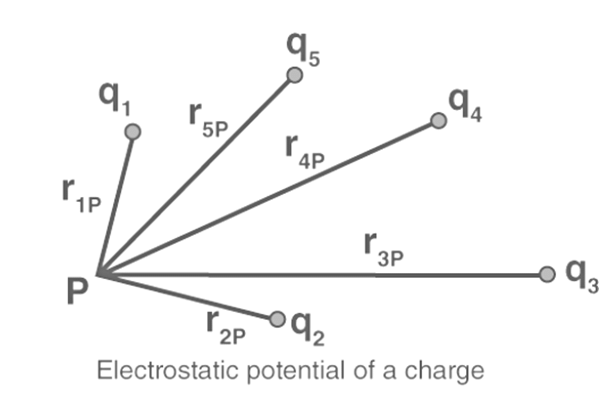

Electrostatic Potential of A Charge

Let us consider a system of charges consisting of static charges, that is, charges fixed at a position that does not undergo any type of motion. In this system, we define the potential energy of a charge in terms of the work done on the charge.
As we know, when a charge, say q, is placed in an electric field E (the electric field at any point due to the charge configuration of the system), it experiences a force proportional to the magnitude of its charge equal to q×E. If we divide the resultant work done by the magnitude of charge, it becomes independent of the charge. This is how we calculate the electrostatic potential of a charge. In this section, we will learn about the electrostatic potential of a charge.

Taking an example of a charged particle being brought from a point A to a point B in the electric field, the work done by an external force in bringing this unit positive charge from point A to B is given by,

Where V_A and V_B is the electrostatic potential of the particle at points A and B, respectively, U_A and U_B are the potential energy of the particle at points A and B. Q is the magnitude of the charge.
As we know, the actual value of the potential at any point holds no significance, and we would rather calculate the potential difference between two points for any given system of charges.
Now, as we know, the potential energy of a charged particle at infinity is assumed to be zero, so the electrostatic potential of an object is calculated for a particle with infinity reference.
Electrostatic potential in the electric field region, at any point, is defined as the work done in bringing a unit charge from infinity to that point such that the particle undergoes no acceleration.
