Carboxylic Acids

Carboxylic acids are carbon compounds that have a special part called a carboxyl group (–COOH). This carboxyl group is made up of a carbonyl group and a hydroxyl group, which is why it's called "carboxyl."

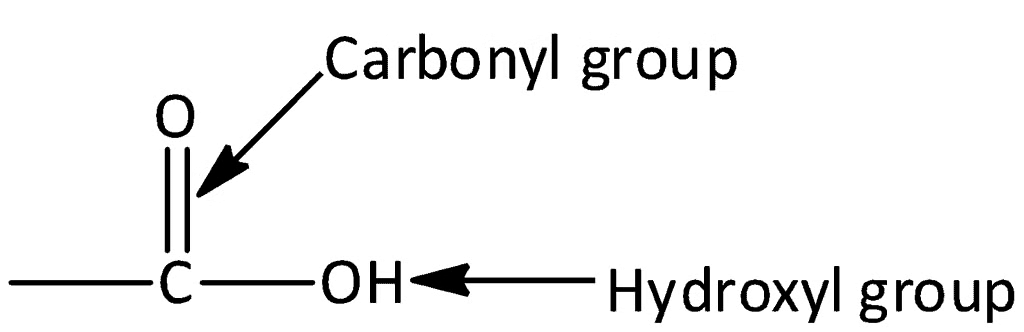

Representation of Carboxylic Acid

Classification of Carboxylic Acids

1. Monocarboxylic Acids:

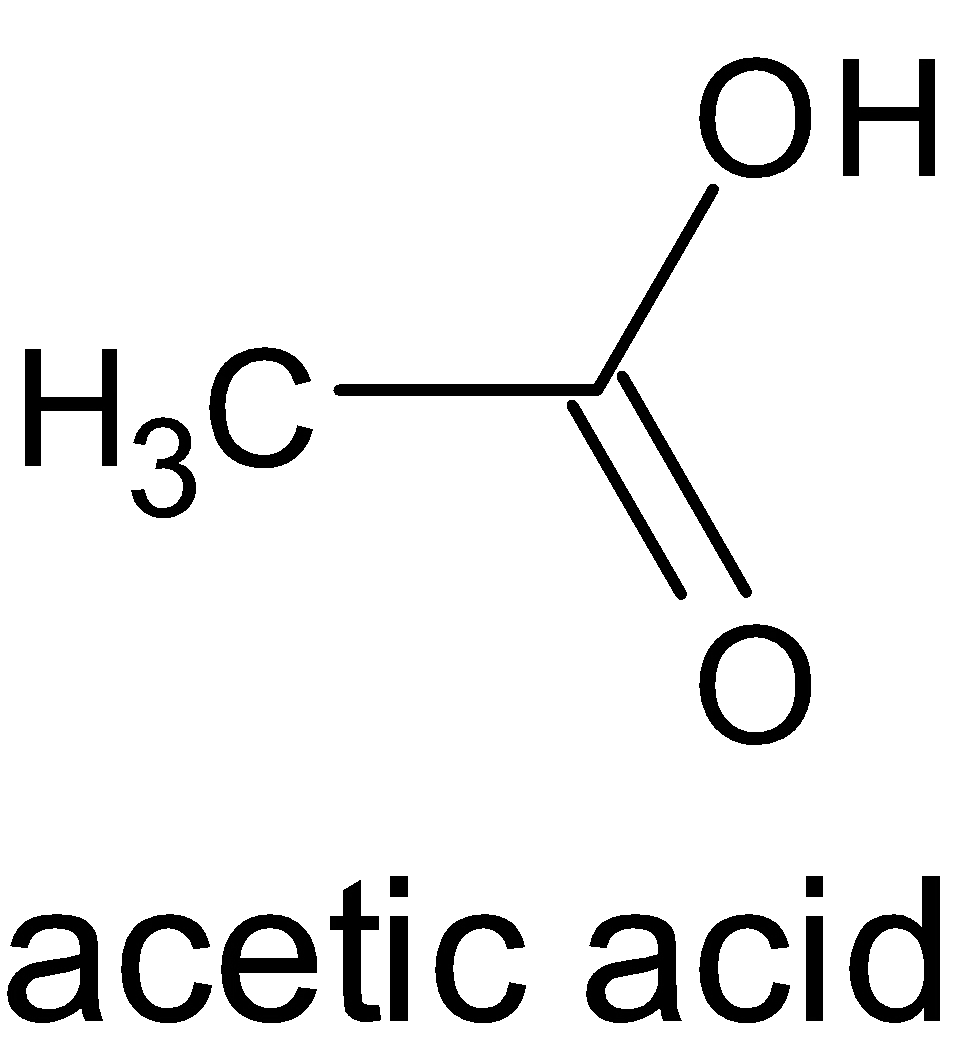

These acids have only one carboxyl group in their molecular structure. Example: Formic acid (HCOOH- obtained from red ants), acetic acid (CH₃COOH-obtained from vinegar).

Example of Monocarboxylic Acid

2. Dicarboxylic Acids:

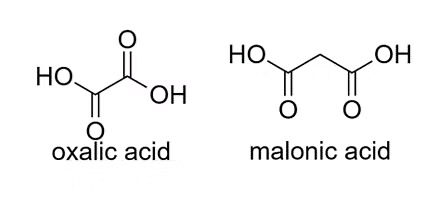

These acids contain two carboxyl groups in their molecular structure. Example: Oxalic acid (H₂C₂O₄), malonic acid (CH₂(COOH)₂).

Examples of Dicarboxylic Acids

3. Tricarboxylic Acids:

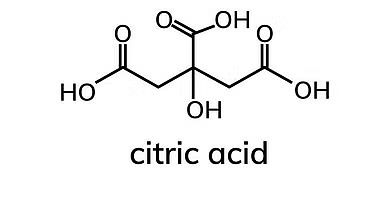

These acids have three carboxyl groups in their molecular structure. Example: Citric Acid

Example of Tricarboxylic Acids

Structure of Carboxyl Group

Resonance Structures of Carboxylic Acids

Nomenclature of Carboxylic Acids

Carboxylic acids are usually called by simple names, like acetic acid (CH₃COOH). In IUPAC naming, they get a different name by changing the ending to "oic acid."

Here are the rules:

1. Replace the "e" at the end of the alkane name with "oic acid."
2. If there's only one carboxyl group, the carbon with it is always numbered as one. For example, CH₃COOH becomes ethanoic acid.
3. If there's more than one carboxyl group, count all the carbon atoms and use Greek numeral prefixes like "di-", "tri-", etc. to show how many carboxyl groups there are.
4. Put together the alkyl chain name, numeral prefixes, and "oic acid" to name the carboxylic acid. Use Arabic numerals to show where the carboxyl groups are.
5. If a carboxyl group is a substituent on a carbon chain, you can call it "carboxylic acid" or "carboxy." For example, 2-furoic acid can be called 2-carboxyfuran.

Carboxylic Acid Derivatives

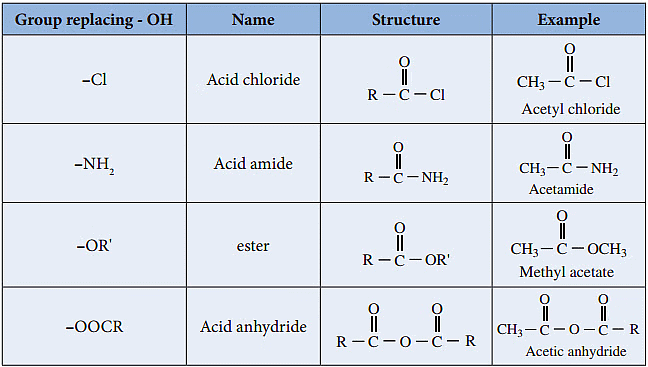

Closely related to the carboxylic acids and to each other are several chemical families known as functional derivatives of carboxylic acids: acid chloride, anhydrides, amides, and esters.

These derivatives are compounds in which the -OH of a carboxyl group has been replaced by–Cl, -OOCR, -NR_2, or –OR.

Carboxylic Acid DerivativesThey all contain the acyl group,

Acyl Group

[Question: 957284]

Acid halides

Methods of preparation of Acyl halides:

(i) RCOOH + PCl₅  → RCOCl + POCl₃  + HCl

(ii) 3RCOOH + PCl₃ → 3RCOCl + H₃PO₃

(iii) RCOOH + SOCl₂ RCOCl +SO₂  + HCl

Ex.

Ex.

Chemical Reactions:

1. Reaction with carboxylic acids:

2. Reaction with alcohols:

Acyl chlorides react with alcohols to form esters. The reaction is typically carried out in the presence of pyridine.

Reaction of Acid Chlorides with Alcohols

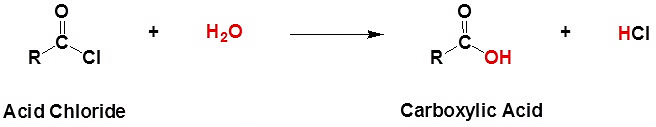

3) Hydrolysis:

 Hydrolysis of Acid Chloride

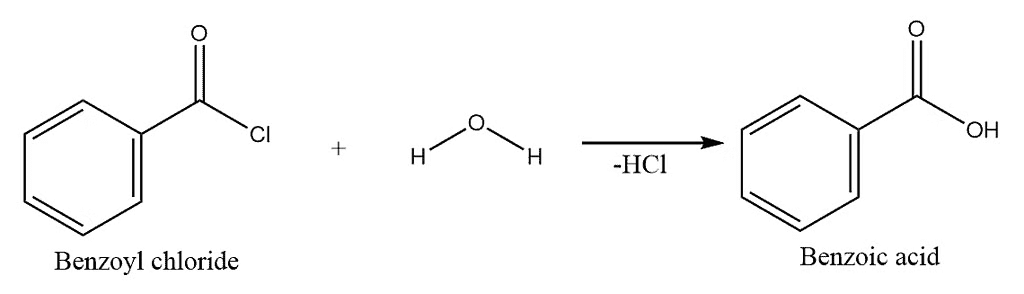

Hydrolysis of Benzoyl Chloride

4) Reaction of acid halide with organometallic compounds:

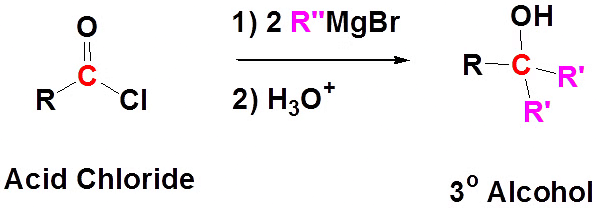

(a) With Grignard's Reagent:

Reaction of Acid Chloride with Grignard Reagent

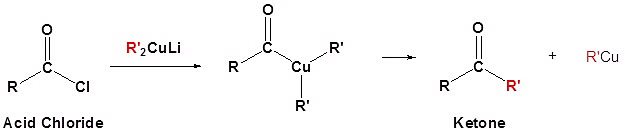

(b) Reaction with Gillman's Reagent:

5) Reduction of acid halide:

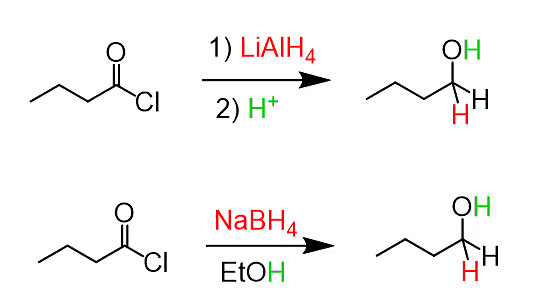

(a) Reduction with LiAlH₄/NaBH_4:

Reduction of Acid Halide with LiAlH₄/NaBH₄

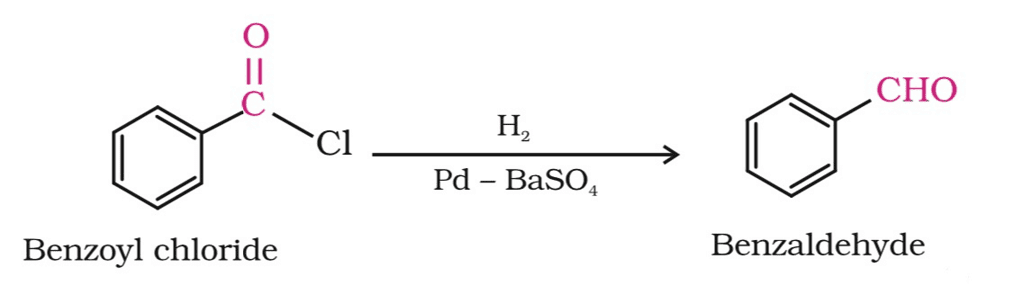

(b) Reduction with H₂/Pd/BaSO₄  (Rosenmund reduction):

Rosenmund Reduction

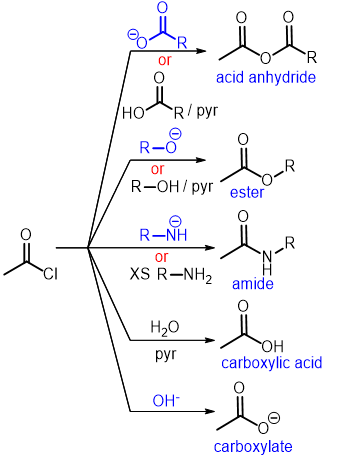

Summary of Reaction of Acid Chlorides:
Summary of Reaction of Acid Chlorides

[Question: 957281]

Acid amides:

Methods of preparation of acids amides:

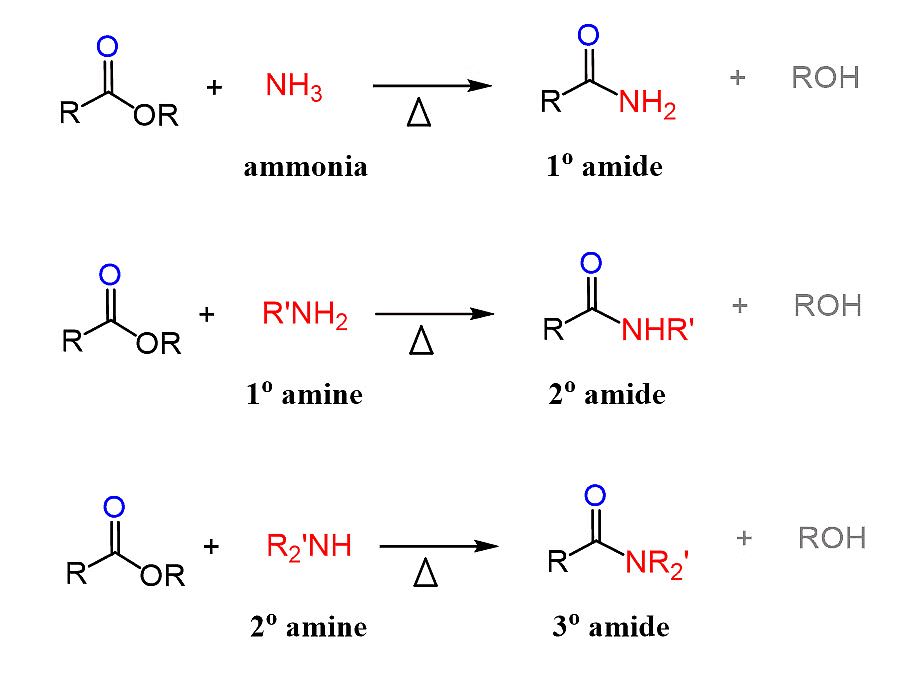

1. By the reaction of Esters with Ammonia and Amines.

Reaction of Esters with Ammonia and Amines

Ammonia is more nucleophilic than water, making it possible to carry out this reaction using aqueous ammonia.

Ex.

2. From acid halides:

RCOCl + 2NH₃ → RCONH₂ + NH₄Cl

3. From anhydride:

(RCO)₂O + 2NH₃ → RCONH₂  + RCOO NH₄

4. From esters:

RCOOR + NH₃ → RCONH₂  + R’OH

 5. From ammonium salt of carboxylic acid:

RCOONH₄ RCONH₂ + H₂O

CH₃ COONH₄ CH₃CONH₂

6. From cyanides:

7.

Chemical Reactions:

1. Hoffmann rearrangement:

General reaction

Hoffmann Rearrangement

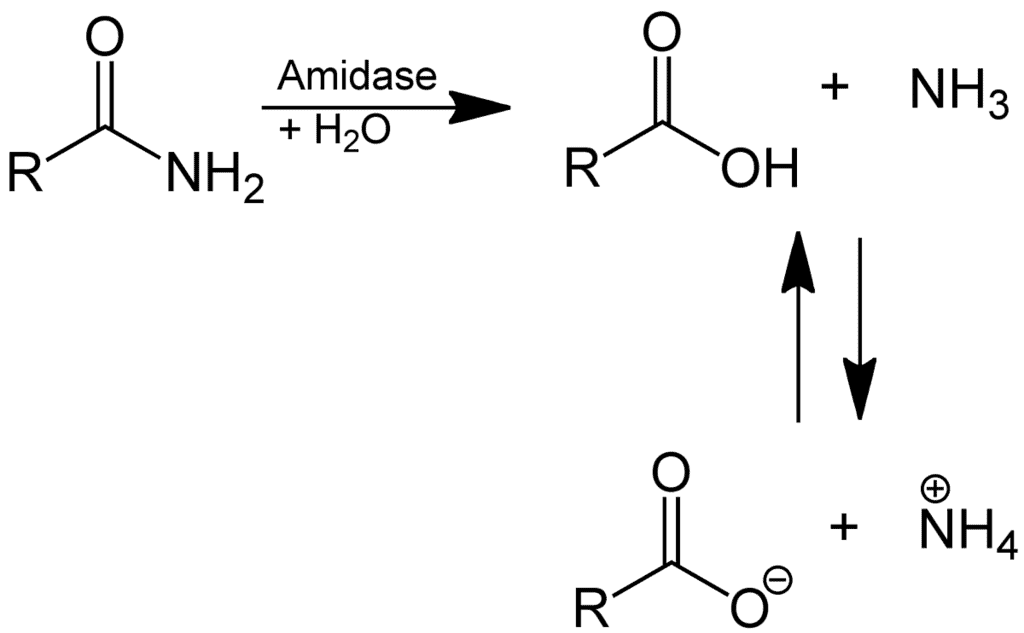

(2) Hydrolysis of amides:

Hydrolysis of Amides

In acid, however, the amine is protonated, giving an ammonium ion, R₂’

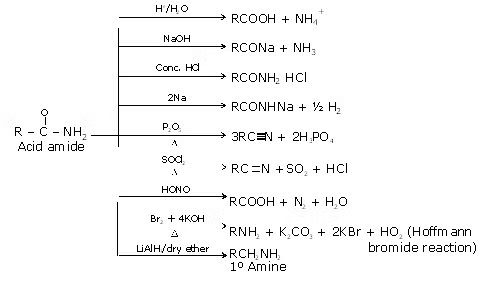

Summary of Reaction of Amide:

Summary of Reactions of Amides

Esters

Methods of Preparation:

(i) CH₃ COOH + C₂H₅OH CH₃COOC₂ H₅  + H₂O
Acetic acid

C₆H₅COOH + CH₃OH C₆H₅ COOCH₃  + H₂O

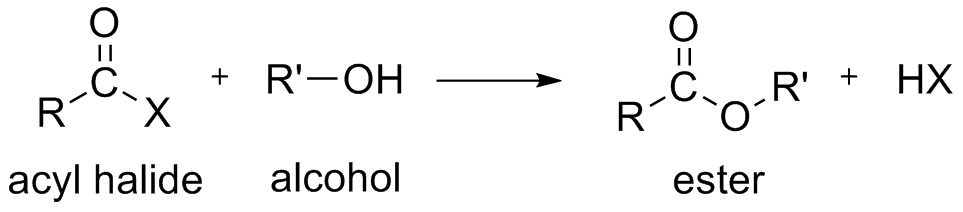

(ii) CH₃COCl + C₂H₅OH CH₃COOC₂H₅  + HCl

Alcohols react with acyl chlorides by nucleophilic acyl substitution to yield esters. These reactions are typically performed in the presence of a weak base such as pyridine.

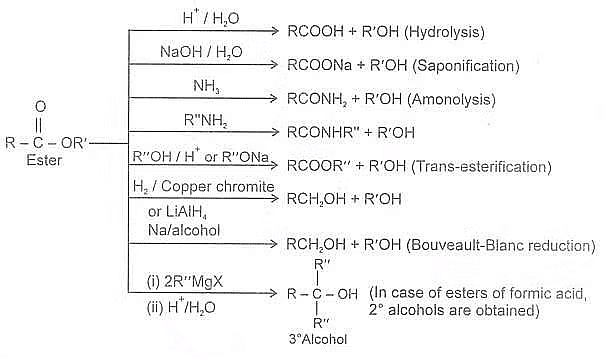

Summary of Chemical reaction of esters:

Summary of Reactions of Esters

Acid anhydrides

Methods of Preparation of acid anhydrides:

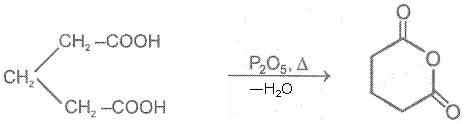

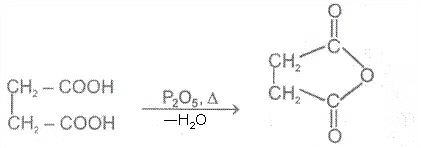

1. From carboxylic acids

Ex.

Ex.

2. From acid and acid halide

Ex.      CH₃COOH + CH₃COCl CH₃ CO.O.COCH₃ + HCl

Ex.      CH₃COCl + CH₃COONa CH₃CO.O.COCH₃  + NaCl

[Question: 957280]

Chemical Reaction:

1. Reaction with aromatic compounds (Friedel crafts acylation):

Friedel Crafts Acylation

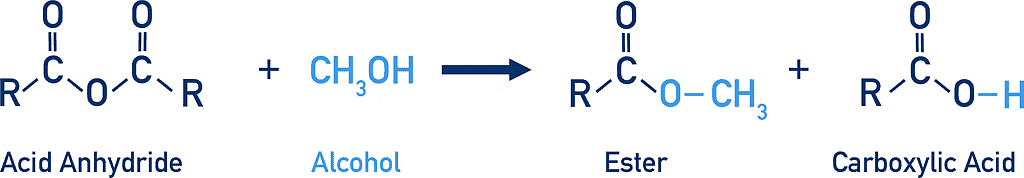

2. Reaction with alcohols:

Reaction of Acid Anhydride with Alcohols

3. Reaction with Ammonia and Amines:

Reaction of Acid Anhydride with Amines

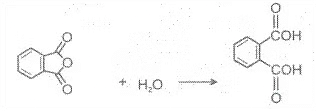

4. Hydrolysis:

 Acid anhydrides react with water to yield two carboxylic acids. Cyclic anhydrides yield dicarboxylic acids.

Preparation of Carboxylic Acids

Oxidation of Primary Alcohols

• Primary alcohols and aldehydes can turn into carboxylic acids through an oxidation reaction using substances like potassium permanganate (KMnO₄ in neutral, acidic, or alkaline media), chromium trioxide (CrO₃^– H₂SO₄^– Jones reagent), and potassium dichromate (K₂Cr₂O₇^– in acidic media).
• When primary alcohols react with these oxidizing agents, they form aldehydes. Subsequently, another oxidation step transforms these aldehydes into carboxylic acids. Potassium dichromate, potassium permanganate, and chromium trioxide being strong oxidizers, can efficiently convert aldehydes to carboxylic acids.

On the other hand, milder oxidizing agents, such as manganese dioxide (MnO₂) and Tollen’s reagent [Ag(NH₃)₂⁺ OH⁻], can only carry out one oxidation step, converting primary alcohols to aldehydes. As a result, these mild agents are used specifically for converting aldehydes into carboxylic acids.

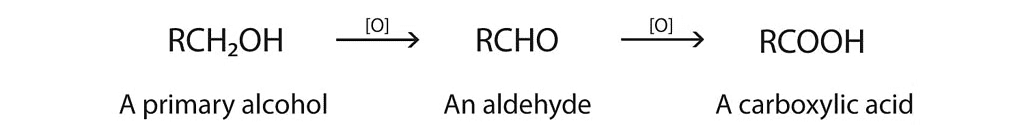

General Reaction Depicting Oxidation of Alcohols

Oxidation of Aldehydes

Carboxylic acids can be produced using both typical strong oxidizing agents and gentler ones like Tollen’s reagent [Ag(NH₃)₂⁺OH⁻] and manganese dioxide (MnO₂).

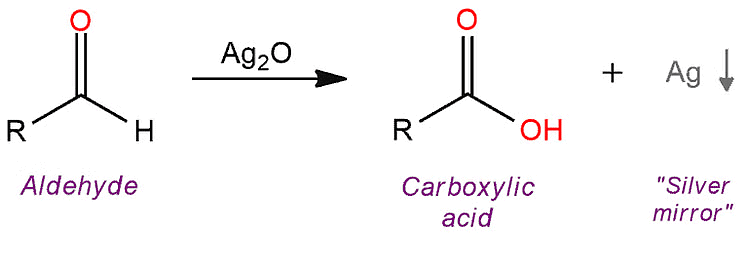

Oxidation of Aldehydes

The above reaction serves as the silver mirror test. This test is based on the formation of a silver mirror on the inner surface of a test tube when Tollen's reagent [Ag(NH₃)₂⁺OH⁻] reacts with an aldehyde. The silver mirror formation is indicative of the presence of aldehydes, making it a valuable tool in qualitative analysis for identifying these functional groups in organic compounds.

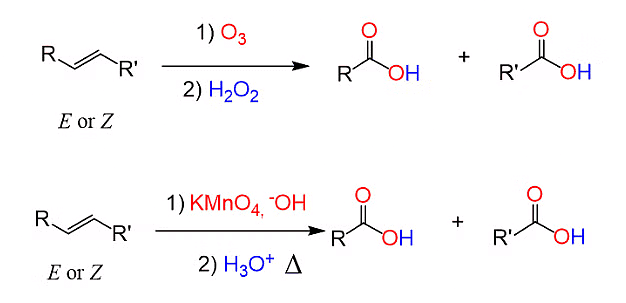

Oxidation of Alkenes

• The oxidation of alkenes to carboxylic acids involves the introduction of oxygen to the carbon-carbon double bond in the alkene structure.
• This reaction is typically carried out using strong oxidizing agents such as potassium permanganate (KMnO₄) or ozone (O₃).
• The double bond in the alkene is cleaved, and each carbon atom involved in the double bond is bonded to an oxygen atom, forming carboxylic acid functional groups. This process transforms the alkene into a carboxylic acid through oxidative cleavage of the double bond.

Oxidation of Alkenes

Carboxylation of Grignard Reagent

• The carboxylation of a Grignard reagent involves the reaction of a Grignard reagent (an organomagnesium compound) with carbon dioxide (CO₂) to yield a carboxylic acid. This reaction is a useful method for synthesizing carboxylic acids.
• The general reaction is:

Carboxylation of Grignard's Reagent

• The Grignard reagent, RMgX, acts as a nucleophile and attacks the electrophilic carbon atom of carbon dioxide. The intermediate formed undergoes further reactions, ultimately resulting in the formation of a carboxylic acid.
• This method is valuable in organic synthesis for introducing carboxylic acid functional groups into organic compounds.

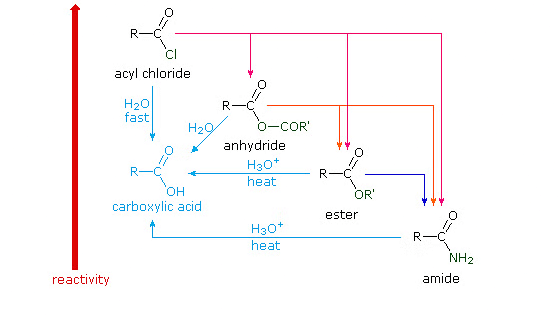

Hydrolysis of Acyl Derivatives of Carboxylic Acids

Hydrolysis of acyl derivatives of carboxylic acids involves breaking these compounds with water, producing carboxylic acids or derivatives. It's a key process in chemical synthesis.

Hydrolysis of acyl derivatives of carboxylic acids

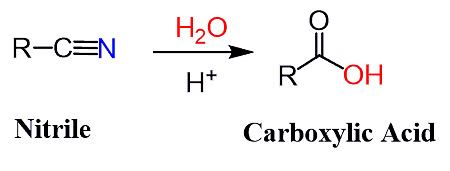

Cyanide Hydrolysis with Dilute Acids

• Cyanide hydrolysis with dilute acids involves the reaction of cyanide ions (CN^-) with an acid, leading to the formation of carboxylic acids.
• This process, known as hydrolysis, results in the conversion of the highly toxic cyanide into less harmful carboxylic acids.
• The acidic conditions facilitate the nucleophilic attack of water molecules on the cyanide ion, breaking the carbon-nitrogen bond and forming carboxylic acid functional groups.

Cyanide hydrolysis with dilute acids

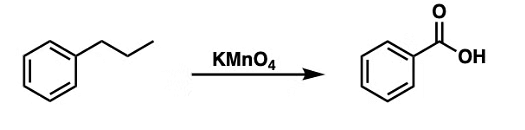

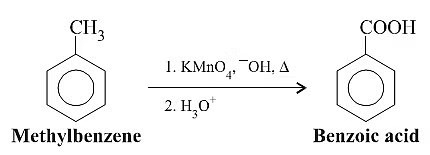

Oxidation of Alkyl Benzene

Oxidation of Alkyl Benzene

The position directly adjacent to an aromatic group is called the “benzylic” position.

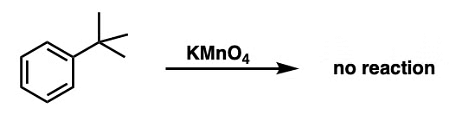

The reaction only works if there is hydrogen attached to the carbon.

The order of benzoic acid formation by oxidation of alkyl benzene:

Methyl Benzene > 1^o alkyl benzene > 2^o alkyl benzene
