Infographic: Moving Charges and Magnetism | Physics for JEE Main & Advanced PDF Download

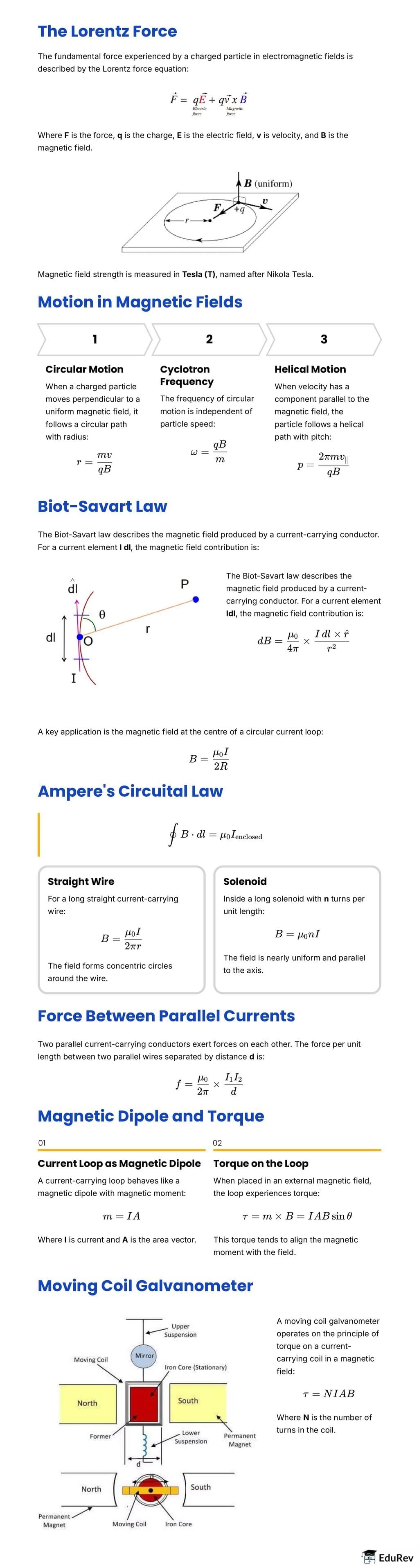

Infographic: Moving Charges and Magnetism | Physics for JEE Main & Advanced

The document Infographic: Moving Charges and Magnetism | Physics for JEE Main & Advanced is a part of the JEE Course Physics for JEE Main & Advanced.
All you need of JEE at this link: JEE
320 videos|971 docs|172 tests

FAQs on Infographic: Moving Charges and Magnetism - Physics for JEE Main & Advanced

1. What is the relationship between moving charges and magnetic fields?
Ans. Moving charges create magnetic fields around them. According to Ampère's law, the magnetic field generated by a current-carrying conductor depends on the amount of current flowing and the distance from the conductor. The direction of the magnetic field can be determined using the right-hand rule, which states that if you point your thumb in the direction of the current, your curled fingers will show the direction of the magnetic field lines.
2. How do magnetic fields affect charged particles?
Ans. Magnetic fields exert a force on moving charged particles, known as the Lorentz force. This force is perpendicular to both the velocity of the particle and the magnetic field direction. The formula for the magnetic force (F) on a charge (q) moving at a velocity (v) in a magnetic field (B) is given by F = q(v × B). This results in circular or helical motion of charged particles in magnetic fields, as seen in cyclotrons and particle accelerators.
3. What is electromagnetic induction and its significance in moving charges and magnetism?
Ans. Electromagnetic induction is the process by which a changing magnetic field induces an electromotive force (EMF) in a conductor. This phenomenon, discovered by Michael Faraday, is fundamental to many electrical devices, including generators and transformers. Faraday's law states that the induced EMF in a circuit is proportional to the rate of change of the magnetic flux through the circuit. This principle is crucial for understanding how electric power is generated and transmitted.
4. How can the motion of charges in a magnetic field be applied in technology?
Ans. The motion of charges in magnetic fields is utilized in various technologies, such as electric motors, generators, and magnetic resonance imaging (MRI). In electric motors, electric current through coils creates a magnetic field that interacts with a permanent magnet, causing rotation. In generators, mechanical energy is converted into electrical energy through electromagnetic induction. MRI uses magnetic fields to manipulate the behavior of charged particles in the body for imaging purposes.
5. What are the different ways to visualize magnetic fields created by moving charges?
Ans. Magnetic fields created by moving charges can be visualized using magnetic field lines, which indicate the direction and strength of the field. Iron filings can be sprinkled around a current-carrying wire to observe the pattern of the magnetic field lines. Additionally, using a magnetic compass can help visualize the field direction, as the compass needle aligns itself with the magnetic field lines. Magnetic field mapping software and visual simulations can also be used for a more detailed representation.
