In the power system (at no load) shown each generator has positive and negative sequence reactance of 10% and zero sequence reactance of 4%. The transmission line is having reactance of 8%. The generators are star connected with neutral solidly grounded. Assume that zero sequence reactance of line is 250% of its positive sequence.
The magnitude of pu fault current feed to ground for LG fault at F is ____________ pu.
Correct answer is '17.1'. Can you explain this answer?
Verified Answer
In the power system (at no load) shown each generator has positive an...
Given: Generators G1, G2, G3:
Positive sequence network,
Similarly, negative sequence network,
Zero sequence Network,

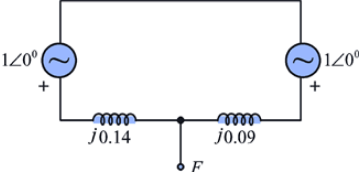

For LG Fault, sequence diagram is given by,
Hence, the fault current feed to ground for LG fault at F is 17.1 pu.
View all questions of this test
Most Upvoted Answer
In the power system (at no load) shown each generator has positive an...
Given: Generators G1, G2, G3:
Positive sequence network,
Similarly, negative sequence network,
Zero sequence Network,
For LG Fault, sequence diagram is given by,
Hence, the fault current feed to ground for LG fault at F is 17.1 pu.
