What is Digital Electronics?

Digital electronics is defined as

Digital Electronics & Logic Gates | Physics Class 12 - NEET  View Answer

The branch of electronics that deals with digital data in the form of codes. There are only two codes in digital electronics, and they are 0 and 1. 0 is considered to be low logic while 1 is considered to be high logic.

Components of Digital Electronics

Digital electronics or the digital circuit comprises various components that perform specific functions. These components are divided into two categories:

  • Active components
  • Passive components

The active components are the transistors and diodes while the passive components are the capacitors, resistors, inductors, etc.

Question for Digital Electronics & Logic Gates
Try yourself:
What are the two codes used in digital electronics?
View Solution

Active Components

  1. Diodes:
    Diodes are manufactured using semiconductor materials. They are used for allowing the flow of current in a particular direction. Different types of diodes are used in the construction of the digital circuit.
  2. Transistors:
    A semiconductor device with three terminals is known as a transistor. The main function of the transistor is to amplify the signal, and it is also used as a switching device.

Passive Components

  1. Capacitors and Inductors:
    The main function of the capacitor is to store electrical energy. A capacitor is made using two conducting plates and between these plates, an insulator is placed. The change in the current is resisted with the help of an inductor. They are used for storing electric energy in the magnetic field.
  2. Battery and Switch:
    The conversion of chemical energy into electric energy takes place because of the battery. It is used as a source of energy. The flow of electric current is controlled by using a switch.
  3. Resistors:
    The flow of current in the circuit is opposed by the resistor. The fixed resistor and variable resistor are the two types of resistors. All the resistors work on the basis of Ohm’s law.

Advantages of Digital System Over Analog System

  • The transmission of data in digital systems takes place without degradation due to noise when compared to an analog system.
  • The digital system comes with noise-immunity, which makes the storage of data easier. Whereas the analog system undergoes wear and tear, which degrades the information in storage.
  • The digital system comes with an interface with computers which makes it easy to control the data. The system can be kept bug free by updating the software. This feature is not available in the analog system.

Disadvantages of Digital System

Though the digital system has noise-immunity and better storage it does have disadvantages too:

  • The energy consumed by the digital system is more compared to the analog system. This energy is consumed in calculations and signal processing which results in the generation of heat.
  • These systems are expensive.
  • The digital systems are fragile, that is if one of the digital data is misinterpreted, the final data will change completely.
  • Taking care of analog issues in digital systems could be demanding as analog components are used in designing the digital system.

Question for Digital Electronics & Logic Gates
Try yourself:
What is the main function of a diode?
View Solution

Applications of Digital Circuits

Digital electronics or digital circuits are an integral part of electronic devices and here are the uses of digital circuits:

  • The display of digital watches is designed based on digital circuits.
  • Rocket science and quantum computing use digital electronics.
  • The automatic doors work on the principle of digital electronics.
  • Everyday encounters with traffic lights are based on digital circuits.

Logic Gate

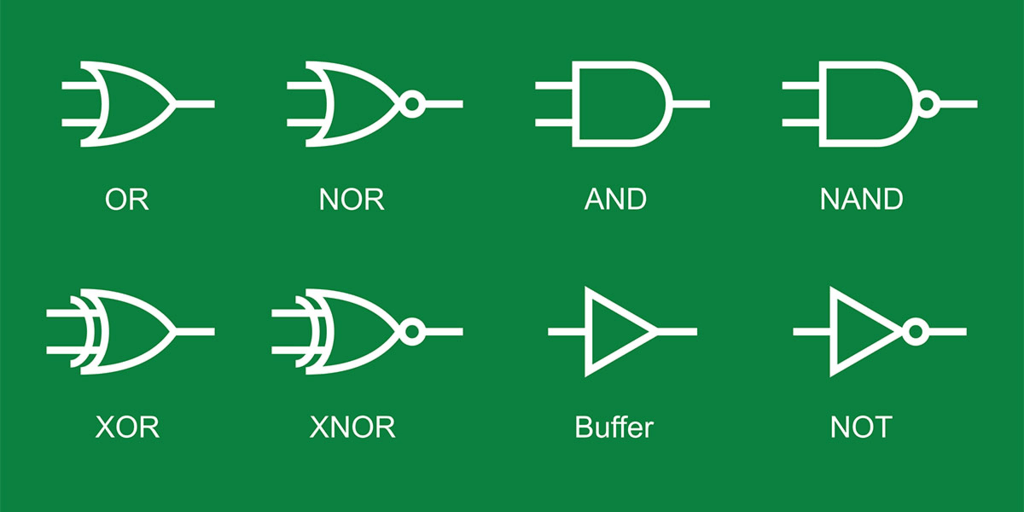

A digital circuit that allows a signal to pass through it, only when few logical relations are satisfied, is called a logic gate.

Digital Electronics & Logic Gates | Physics Class 12 - NEET

Truth Table

A table that shows all possible input and output combinations is called a truth table.

Basic Logic Gates

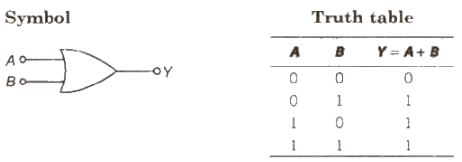

(i) OR Gate It is a two input and one output logic gate.

Digital Electronics & Logic Gates | Physics Class 12 - NEET

Boolean expression Y = A + B (Y equals A OR B)

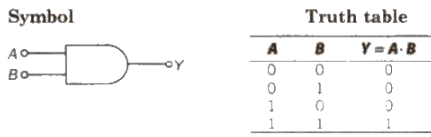

(ii) AND Gate It is a two input and one output logic gate

Digital Electronics & Logic Gates | Physics Class 12 - NEET

Boolean expression Y = A . B (Y equals A AND B)

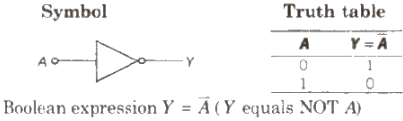

(iii) NOT Gate It is a one input and one output logic gate.

Digital Electronics & Logic Gates | Physics Class 12 - NEET

Combination of Gates

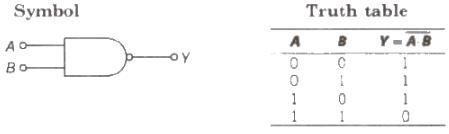

(i) NAND Gate When output of AND gate is applied as input to a NOT gate, then it is called a NAND gate.

Digital Electronics & Logic Gates | Physics Class 12 - NEET

Boolean expression Y = A * B (Y equals negated of A AND B)

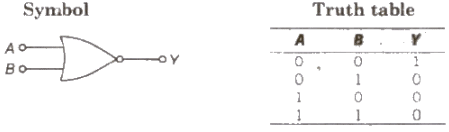

(ii) NOR Gate When output of OR gate is applied as input to a NOT gate, then it is called a NOR gate.

Digital Electronics & Logic Gates | Physics Class 12 - NEET

Boolean expression Y = A + B ( Y equals negated of A OR B)

  • The Boolean expression obey commutative law associative law as well as distributive law.
  1. A + B = B+ A
  2. A· B = B· A
  3. A + (B + C) = (A + B) + C
  • Demorgan’s theorems
    Digital Electronics & Logic Gates | Physics Class 12 - NEET
The document Digital Electronics & Logic Gates | Physics Class 12 - NEET is a part of the NEET Course Physics Class 12.
All you need of NEET at this link: NEET
105 videos|425 docs|114 tests

Top Courses for NEET

FAQs on Digital Electronics & Logic Gates - Physics Class 12 - NEET

1. What is digital electronics?
Ans. Digital electronics refers to the branch of electronics that deals with the manipulation and control of digital signals. It involves the use of logic gates and other digital circuits to process and transmit information in the form of binary digits (0s and 1s).
2. What are the components of digital electronics?
Ans. The components of digital electronics include logic gates, flip-flops, registers, counters, multiplexers, and demultiplexers. These components are used to perform various digital operations and create complex digital systems.
3. What is a logic gate in digital electronics?
Ans. A logic gate is a fundamental building block of digital electronics. It is an electronic circuit that operates on one or more input signals to produce an output signal based on a specific logic function. Examples of logic gates include AND gate, OR gate, NOT gate, and XOR gate.
4. How do logic gates work in digital electronics?
Ans. Logic gates work by using transistors to control the flow of electric current. Each logic gate has a specific truth table that defines the output based on the input conditions. The input signals are processed according to the logic function of the gate, and the resulting output signal is determined accordingly.
5. What are some applications of digital electronics?
Ans. Digital electronics find applications in various fields, including computer systems, telecommunications, consumer electronics, industrial automation, and robotics. Some specific applications include digital data processing, signal transmission and encoding, digital memory, and control systems.
