Fluid Mechanics

  • Fluid mechanics deals with the behaviour of fluids at rest and in motion. A fluid is a substance that deforms continuously under the application of a shear (tangential) stress no matter how small the shear stress may be.
  • Thus, fluids comprise the liquid and gas (or vapor) phase of the physical forms in which matter exists.

FluidFluid

Density (r):

Mass of unit volume, Called density

Density at a point of liquid described by

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

density is a positive scalar quantity

SI unit = Kg/m3

CGS unit = gm/cm3

Dimension = [ML-3]

Relative Density:

It is the ratio of density of the given liquid to the density of pure water at 4°C

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Relative density or specific gravity is unitless, dimensionless. It is a positive scalar physical Quantity.

Value of R.D. is same in SI and CGS system due to dimensionless/unitless

Specific Gravity:

It is the ratio of the weight of given liquid to the weight of pure water at 4°C

Specific Gravity = Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET = Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET = Relative density of liquid i.e. than the specific gravity of a liquid is approximately equal to the relative density. For calculation, they can be interchanged

Question for Mechanical Properties of Fluids: Part 1
Try yourself:
What is the definition of fluid?
View Solution


Pressure in a Fluid

  • When a fluid (either liquid or gas) is at rest, it exerts a force perpendicular to any surface in contacts with it, such as a container wall or a body immersed in the fluid.
  • While the fluid as a whole is at rest, the molecules that make up the fluid are in motion, the force exerted by the fluid is due to molecules colliding with their surroundings.
  • If we think of an imaginary surface within the fluid, the fluid on the two sides of the surface exerts equal and opposite forces on the surface, otherwise, the surface would accelerate and the fluid would not remain at rest.
  • Consider a small surface of area dA centered on a point on the fluid, the normal force exerted by the fluid on each side is Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET. The pressure P is defined at that point as the normal force per unit area, i.e.,
    Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET
  • If the pressure is the same at all points of a finite plane surface with area A, then
    Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET
  • where Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET is the normal force on one side of the surface. The SI unit of pressure is the pascal, where
    1 pascal = 1 Pa = 1.0 N/m2
  • One unit used principally in meteorology is the Bar which is equal to 105 Pa.
    1 Bar = 105 Pa

Atmospheric Pressure (P0)

It is the pressure of the earth's atmosphere. This changes with weather and elevation. Normal atmospheric pressure at sea level (an average value) is 1.013 × 105 Pa. Thus

1 atm = 1.013 × 105 Pa

Note: Fluid pressure acts perpendicular to any surface in the fluid no matter how that surface is oriented. Hence, pressure has no intrinsic direction of its own, its a scalar. By contrast, force is a vector with a definite direction.

Pascal's Law

  • According to Pascal's Law, the external static pressure applied to a confined liquid is distributed evenly throughout the liquid in all directions.
  • The static pressure acts at right angles to any surface that comes into contact with the fluid.
  • Pascal discovered that the pressure at a specific point in a static fluid remains the same across all planes that pass through that point within the fluid.
  • Pascal's law is also referred to as Pascal's principle or the principle of transmission of fluid-pressure
  •  This law was first articulated by the French mathematician Blaise Pascal in 1653.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Pascal Law Formula

Following is the formula of Pascal law: F = PA

Where,

 F is the force applied,
P is the pressure transmitted, and
A is the cross-sectional area.

Example of Pascal's Law

Let's explore how Pascal's law works with an example.

  • A pressure of 2000 Pa is applied to a liquid column because of a force on a piston.
  • If the piston area is 0.1 m2, we can find the force applied using Pascal's Law formula:
    • F = PA
  • In this formula:
    • P = 2000 Pa = N/m2
    • A = 0.1 m2
  • By putting the values into the formula, we get:
    • F = 200 N

Applications of Pascal's Law

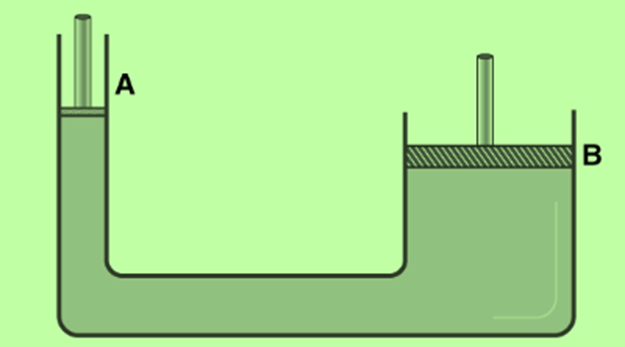

  • Hydraulic Lift: The first image in this article shows a basic diagram of a hydraulic lift. This device operates based on the principle of equal pressure transmission in a fluid, as stated by Pascal's Law.
  • The lift consists of a narrow cylinder (Cylinder A) connected to a wider cylinder (Cylinder B). Both ends are fitted with airtight pistons.
  • These cylinders are filled with an incompressible fluid.
  • When pressure is applied to piston A, it is transmitted equally to piston B without losing any fluid. This allows piston B to lift heavy objects, such as large machines or vehicles.
  • Other uses of Pascal's Law include:
    • Hydraulic Jack
    • Hydraulic Press
    • Braking Systems in most cars use forced amplification based on this principle.

Pascal's Law Derivation

  • Consider a right-angled prismatic triangle located in a liquid with a density of rho.
  • Because the prismatic shape is very small, every point within it can be regarded as being at the same level as the surface of the liquid.
  • As a result, the pressure T is uniform at all these points.
  • The influence of gravity is also consistent across these points due to the small size of the prismatic element.
  • This uniformity of pressure and gravitational effect is crucial for understanding the principles of Pascal's Law.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

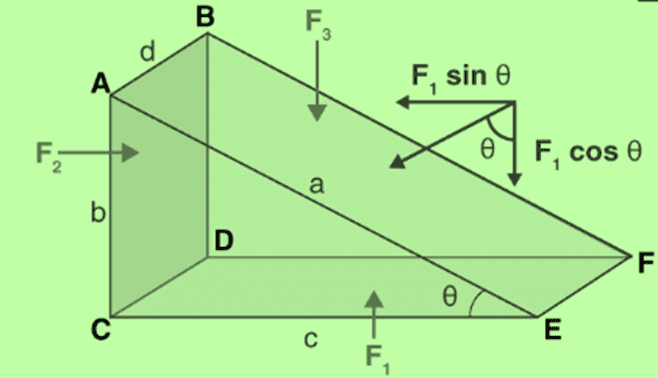

 Let ad, bd, and cd represent the area of the faces ABFE, ABDC, and CDFE, respectively.

 Let P1, P2, and P3 denote the pressure acting on the faces ABFE, ABDC, and CDFE

Pressure creates a force that acts perpendicular to the surface.
Let P1 create a force F1 on the surface ABFE.
Let P2 create a force F2 on the surface ABDC
Let P3 create a force F3 on the surface CDFE

Therefore, the forces can be expressed as:

  • F1 = P1 × area of ABFE = P1ad
  • F2 = P2 × area of ABDC = P2bd
  • F3 = P3 × area of CDFE = P3cd

Also, Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Additionally, the total force on the prism will be zero because the prism is stable.

  • The relationships between the forces are:
    • F1 sin θ = F2
    • F1 cos θ = F3
  • From these equations, we find:
    • Pad b/a = Pbd (equation 1)
    • P1ad c/a = Pcd (equation 2)
  • By solving equations 1 and 2, we conclude that:
    • P1 = P2
    • P1 = P3
  •  Thus, it follows that P1 = P2 = P3

Variation in Pressure with depth

  • If the weight of the fluid can be neglected, the pressure in a fluid is the same throughout its volume. But often the fluid's weight is not negligible and under such condition, pressure increases with increasing depth below the surface.
  • Let us now derive a general relation between the pressure P at any point in a fluid at rest and the elevation y of that point. We will assume that the density r and the acceleration due to gravity g are the same throughout the fluid. If the fluid is in equilibrium, every volume element is in equilibrium.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

  • Consider a thin element of fluid with height dy. The bottom and top surfaces each have area A, and they are at elevations y and y + dy above some reference level where y = 0. The weight of the fluid element is
    dW = (volume) (density) (g) = (A dy) (r) (g)
    or dW = rg A dy
  • What are the other forces in y-direction of this fluid element? Call the pressure at the bottom surface P, the total y component of upward force is PA. The pressure at the top surface is P dP and the total y-component of downward force on the top surface is (P dP) A. The fluid element is in equilibrium, so the total y-component of force including the weight and the forces at the bottom and top surfaces must be zero.
    åFy = 0
    PA -(P + dP) A -rgAdy = 0
    or Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET ...(i)
    This equation shows that when y increases, P decreases, i.e., as we move upward in the fluid, pressure decreases.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

  • If P1 and P2 be the pressures at elevations y1 and y2 and if r and g are constant, then integrating Eq.(i), we get
    Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET
    or P2 -P1 = -rg (y2 -y1) ...(ii)
  • It's often convenient to express Eq. (ii) in terms of the depth below the surface of a fluid. Take point 1 at depth h below the surface of fluid and let P represents pressure at this point. Take point 2 at the surface of the fluid, where the pressure is P0 (subscript zero for zero depth). The depth of point 1 below the surface is,
    h = y2 -y1
    and Eq. (ii) becomes
    P0 -P = -rg (y2 -y1) = -rgh
    P = P0 rgh ...(iii)

Thus, pressure increases linearly with depth, if r and g are uniform, A graph between P and h is shown below.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEETMechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Further, the pressure is the same at any two points at the same level in the fluid. The shape of the container does not matter.

Question for Mechanical Properties of Fluids: Part 1
Try yourself:
What is the SI unit of pressure?
View Solution

Barometer

It is a device used to measure atmospheric pressure.

In principle, any liquid can be used to fill the barometer, but mercury is the substance of choice because its great density makes possible an instrument of reasonable size.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

P1 = P2
Here,    P1 = atompsheric pressure (P0)
and   P2 = 0 + pgh = pgh
Here,   p = density of mercury
p0 = pgh

Thus, the mercury barometer reads the atmosphereic pressure (P0) directly from the height of the mercury column.

For example if the height of mercury in a barometer is 760 mm, then atmospheric pressure will be,

P0 = rgh = (13.6 × 103) (9.8) (0.760)= 1.01 × 105 N/m2

BarometerBarometer

Force on Side Wall of Vessel

Force on the sidewall of the vessel can not be directly determined as at different depths pressures are different. To find this we consider a strip of width dx at a depth x from the surface of the liquid as shown in figure,

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

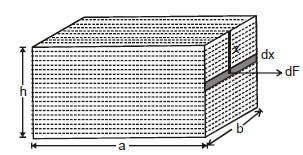

and on this strip the force due to the liquid is given as:

dF = xrg × bdx

This force is acting in the direction normal to the sidewall.

Net force can be evaluated by integrating equation

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEETMechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET ...(2.4)

Average Pressure on Side Wall

The absolute pressure on the sidewall cannot be evaluated because at different depths on this wall pressure is different. The average pressure on the wall can be given as :

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET = Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET ...(2.5)

Equation (2.5) shows that the average pressure on side vertical wall is half of the net pressure at the bottom of the vessel.

Torque on the Side Wall due to Fluid Pressure

As shown in figure, due to the force dF, the sidewall experiences a torque about the bottom edge of the side which is given as

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET = xrgb dx (h -x)

This net torque is       Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEETMechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Manometer

It is a device used to measure the pressure of a gas inside a container.

ManometerManometer

The U-shaped tube often contains mercury.

P1 = P2

Here, P1 = pressure of the gas in the container (P)

and P2 = atmospheric pressure (P0) +  rgh

P = P0 hrg

This can also be written as

P -P0 = gauge pressure = hrg

Here, r is the density of the liquid used in U - tube

Thus by measuring h we can find absolute (or gauge) pressure in the vessel.

Example 1. Two liquid which do not react chemically are placed in a bent tube as shown in figure. Find out the displacement of the liquid in equilibrium position.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Sol. The pressure at the interface must be same, calculated via either tube. Since both tube all open to the atmosphere, we must have.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Example 2. Three liquid which do not react chemically are placed in a bent tube as shown in figure (initially) then fluid out the displacement of the liquid in equilibrium position.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

 Sol. Let us assume that level of liquid having density 3r displaced below by x as shown in figure below.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Pressure Distribution in an Accelerated Frame

We've already discussed that when a liquid is filled in a container, generally its free surface remains horizontal as shown in figure (a) as for its equilibrium its free surface must be normal to gravity i.e. horizontal. Due to the same reason we said that pressure at every point of a liquid layer parallel to its free surface remains constant. Similar situation exist when liquid is in an accelerated frame as shown in figure (b). Due to acceleration of container, liquid filled in it experiences a pseudo force relative to container and due to this the free surface of liquid which normal to the gravity now is filled as:

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET ...(2.22)

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEETMechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Now from equilibrium of liquid we can state that pressure at every point in a liquid layer parallel to the free surface (which is not horizontal), remains same for example if we find pressure at a point A in the accelerated container as shown in figure (a) is given as

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Where h is the depth of the point A below the free surface of liquid along effective gravity and P0 is the atmospheric pressure acting on free surface of the liquid.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEETMechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

The pressure at point A can also obtained in an another way as shown in figure (b). If l1 and l2 are the vertical and horizontal distances of point A from the surface of liquid then pressure at point A can also be given as

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Here l1rg is the pressure at A due to the vertical height of liquid above A and according to Pascal's Law pressure at A is given as

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET   ...(2.25)

Here we can write l1 as  Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

or from equation (2.25)  Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Similarly if we consider the horizontal distance of point A from free surface of liquid, which is l2 then due to pseudo acceleration of container the pressure at point A is given as

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET     ...(2.26)

Here l2 is given as Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET
From equation (2.24), we have  Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Here students should note that while evaluating pressure at point A from vertical direction we haven't mentioned any thing about pseudo acceleration as along vertical length l1, due to pseudo acceleration at every point pressure must be constant similarly in horizontal direction at every point due to gravity pressure remains constant.

Example 3. Figure shows a tube in which liquid is filled at the level. It is now rotated at an angular frequency w about an axis passing through arm A find out pressure difference at the liquid interfaces.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Sol. To solve the problem we take a small mass dm from the axis at `a' distance x in displaced condition.

Net inward force = (P +dP) A -PA

= AdP

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

This force is balanced by centripetal force in equilibrium

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Example 4. A liquid of density r is in a bucket that spins with angular velocity w as shown in figure.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Show that the pressure at a radial distance r from the axis is

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

where P0 is the atmospheric pressure.

Sol. Consider a fluid particle P of mass m at coordinates

(x, y). From a non-inertial rotating frame of reference two forces are acting on it,

(i) pseudo force (mxw2)
(ii) weight (mg)

in the directions shown in figure.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

The net force on it should be perpendicular to the free surface (in equilibrium). Hence.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET or Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

This is the equation of the free surface of the liquid, which is a parabola.

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET  Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

The document Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET is a part of the NEET Course Physics Class 11.
All you need of NEET at this link: NEET
102 videos|411 docs|121 tests

Top Courses for NEET

FAQs on Mechanical Properties of Fluids: Part 1 - Physics Class 11 - NEET

1. What is atmospheric pressure and how is it measured?
Ans. Atmospheric pressure is the pressure exerted by the weight of air in the atmosphere above a given point. It is measured using a barometer, which can be of different types, such as mercury or aneroid barometers. The standard atmospheric pressure at sea level is approximately 101.3 kPa (kilopascals) or 1 atm (atmosphere).
2. How does pressure vary with depth in a fluid?
Ans. Pressure in a fluid increases with depth due to the weight of the fluid above. This can be described by the hydrostatic pressure equation: P = P0 + ρgh, where P is the pressure at depth, P0 is the atmospheric pressure on the surface, ρ is the fluid density, g is the acceleration due to gravity, and h is the depth. As depth increases, pressure increases linearly.
3. What is a manometer and how is it used to measure pressure?
Ans. A manometer is a device used to measure the pressure of a fluid by balancing it against a column of liquid, typically mercury or water. It can be used to measure pressure differences between two points in a system or the absolute pressure of a fluid. The height difference in the liquid column correlates to the pressure difference according to the equation ΔP = ρgh.
4. What is the force exerted on the side walls of a vessel containing fluid?
Ans. The force exerted on the side walls of a vessel containing fluid is due to the pressure acting on the walls. This force can be calculated using the formula F = P × A, where F is the force, P is the pressure at the depth of interest, and A is the area of the wall in contact with the fluid. The total force on the wall can vary depending on the depth and shape of the vessel.
5. How does pressure distribution behave in an accelerated frame?
Ans. In an accelerated frame, the pressure distribution in a fluid can change due to the effects of acceleration. For example, if a fluid-filled container is accelerating horizontally, the pressure will increase in the direction of the acceleration. This can be described using the modified hydrostatic equation, where an effective gravitational force is considered, affecting the pressure distribution in the fluid.
102 videos|411 docs|121 tests
Download as PDF
Explore Courses for NEET exam

Top Courses for NEET

Signup for Free!
Signup to see your scores go up within 7 days! Learn & Practice with 1000+ FREE Notes, Videos & Tests.
10M+ students study on EduRev
Related Searches

Summary

,

Sample Paper

,

past year papers

,

shortcuts and tricks

,

Semester Notes

,

Objective type Questions

,

pdf

,

Free

,

practice quizzes

,

MCQs

,

video lectures

,

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

,

Exam

,

ppt

,

mock tests for examination

,

Important questions

,

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

,

Mechanical Properties of Fluids: Part 1 | Physics Class 11 - NEET

,

Previous Year Questions with Solutions

,

Extra Questions

,

study material

,

Viva Questions

;
