NCERT Solutions for Class 10 Maths Chapter 12 - Surface Areas and Volumes (Exercise 12.1)

Exercise 12.1

Q1. 2 cubes each of volume 64 cm³ are joined end to end. Find the surface area of the resulting cuboid.
Sol.  Volume of each cube = 64 cm³
∴ Total volume of the two cubes = 2 × 64 cm³ = 128 cm³
Let the edge of each cube = x
∴ x³ = 64 = 4³
⇒ x =4 cm
⇒ Now, the Length of the resulting cuboid 'l' = 2x cm = 8cm
⇒ Breadth of the resulting cuboid 'b' = x cm = 4 cm
⇒ Height of the resulting cuboid 'h' = x cm = 4 cm
∴ Surface area of the cuboid = 2 (lb + bh + hl)
= 2 [(8 × 4) + (4 × 4) + (4 × 8)]
= 2 [32 + 16 + 32] cm² = 2 [80] cm² = 160 cm².

Q2. A vessel is in the form of a hollow hemisphere mounted by a hollow cylinder. The diameter of the hemisphere is 14 cm and the total height of the vessel is 13 cm. Find the inner surface area of the vessel.
Sol.  For the cylindrical part
 Radius (r) = 7 cm
 Height (h) = 6 cm
∴ Curved surface area
= 2πrh
= 2 × 227 × 7 × 6 cm² = 264 cm²

For hemispherical part
  Radius (r) = 7 cm
∴ Surface area = 2πr²
= 2 × 227 × 7 × 7 cm² = 308 cm²
∴ Total surface area = CSA of cylinder + CSA of hemisphere
= (264 + 308) cm² = 572 cm².

Q3. A toy is in the form of a cone of radius 3.5 cm mounted on a hemisphere of the same radius. The total height of the toy is 15.5 cm. Find the total surface area of the toy.
Sol. Here, r = 3.5 cm
∴ h = (15.5 − 3.5) cm = 12.0 cm
⇒ Surface area of the conical part = πrl
⇒ Surface area of the hemispherical part = 2πr²

∴ l² = (12)² + (3.5)²
l² = 144 + 12.25 = 156.25
⇒ l = 12.5 cm

∴ Total surface area of the toy
= πr² + 2πr² = πr (l + 2r) cm²
= 227 × 3510 (12.5 + 2 × 3.5) cm²
= 11 × (12.5 + 7) cm²
= 11 × 19.5 cm² = 214.5 cm²

Q4. A cubical block of side 7 cm is surmounted by a hemisphere. What is the greatest diameter the hemisphere can have? Find the surface area of the solid.
Sol. Side of the block = 7 cm
⇒ The greatest diameter of the hemisphere = 7 cm
Surface area of the solid:
= [Total S.A. of the cubical block] + [S.A. of the hemisphere] − [Base area of the hemisphere]
= (6 × l²) + 2πr² − πr²

= [6(7)]² + 2π(3.5)² − π(3.5)² cm²
= 6(7)² + π(3.5)²
= 6 × 497 + 22 × 7 × 72 × 2 cm²
= 294 + 777 cm²
= 332.5 cm²


Q5. A hemispherical depression is cut out from one face of a cubical wooden block such that the diameter l of the hemisphere is equal to the edge of the cube. Determine the surface area of the remaining solid.
Sol. Let ‘l’ be the side of the cube.

Now, the diameter of the hemisphere = Edge of the cube = l

So, the radius of the hemisphere = l/2

∴ The total surface area of solid = surface area of cube + CSA of the hemisphere – Area of the base of the hemisphere

The surface area of the remaining solid = 6 (edge)²+2πr²-πr²

= 6l² + πr²

= 6l²+π(l/2)²

= 6l²+πl²/4

= l²/4 (24+π) sq. units

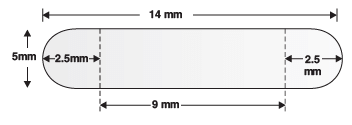

Q6. A medicine capsule is in the shape of a cylinder with two hemispheres stuck to each of its ends (see Fig.). The length of the entire capsule is 14 mm and the diameter of the capsule is 5 mm. Find its surface area.

Sol. Radius of the hemispherical part

= 5/2 mm = 2.5 mm

∴ Surface area of one hemispherical part = 2πr²

⇒ Surface area of both hemispherical parts
= 2 (2πr²) = 4 × 227 × 2510 ² mm²
= 4 × 227 × 2510 × 2510 mm²
Area of cylindrical part = 2πrh = 2 × 227 × 2.5 × 9 mm² = 2 × 227 × 2510 × 9 mm²
.∴ Total surface area
= 2 × 22 × 25 × 10 × 97 + 4 × 22 × 25 × 25 × 107 mm²
= 2 × 22 × 25 × 107 × 9 + 5070 mm² = 44 × 2510 mm² = 44 × 52 cm²
= 220 mm²

Q7. A tent is in the shape of a cylinder surmounted by a conical top. If the height and diameter of the cylindrical part are 2.1 m and 4 m respectively, and the slant height of the top is 2.8 m, find the area of the canvas used for making the tent. Also, find the cost of the canvas of the tent at the rate of Rs 500 per m². (Note that the base of the tent will not be covered with canvas.)
Sol.

For cylindrical part:
 Radius (r) = 4/2 m = 2 m
 Height (h) = 2.1 m
∴ Curved surface area = 2πrh = 2 × 227 × 2 × 2110 m²
For conical part:
Slant height (l) = 2.8 m
Base radius (r) = 2 m
.∴ Curved surface area = πrl = 227 × 2 × 2810 m²
.∴ Total surface area
= [Surface area of the cylindrical part] + [Surface area of conical part]
= 2 × 22 × 2 × 217 × 10 + 22 × 2 × 287 × 10 m²
= 2 × 22 × 2 × 217 × 10 × 42 + 2810 m²
= 2 × 22 × 257 × 10 m² = 22 × 7010 m² = 44 m²

Cost of the canvas used
Cost of 1 m² of canvas = Rs 500
∴ Cost of 44 m² of canvas = Rs 500 × 44 = Rs. 22000

Q8. From a solid cylinder whose height is 2.4 cm and diameter 1.4 cm, a conical cavity of the same height and same diameter is hollowed out. Find the total surface area of the remaining solid to the nearest cm².
Sol.

For cylindrical part:
 Height = 2.4 cm
 Diameter = 1.4 cm
⇒ Radius (r) = 0.7 cm
For conical part:
 Base area (r) = 0.7 cm
 Height (h) = 2.4 cm
∴ Slant height (l) = √r² + h²√(0.7)² + (2.4)² = √(0.49 + 5.76) = √6.25 = 2.5 cm
∴ Curved surface area of the conical part = πrl = 227 × 0.7 × 2.5 cm² = 22 × 7 × 25100 cm² = 550100 cm²
Base area of the conical part = πr² = 227 × 710² cm² = 22 × 7100 cm² = 154100 cm²
∴ Total surface area of the remaining solid:
= [Total SA of cylindrical part] + [Curved surface area of conical part] − [Base area of conical part]
= 1364 + 550100 + 154100 cm²
= 1914100 − 154100 = 1760100 cm² = 17.6 cm²

Q9. A wooden article was made by scooping out a hemisphere from each end of a solid cylinder, as shown in Fig. If the height of the cylinder is 10 cm, and its base is of radius 3.5 cm, find the total surface area of the article.

Sol. Radius of the cylinder (r) = 3.5 cm
Height of the cylinder (h) = 10 cm
∴ Total surface area = 2πrh + 2πr² = 2πr (h + r)

= 2 × 227 × 3510 (10 + 3510) cm²
= 22 × 13510 cm² = 297 cm²

Curved surface area of a hemisphere = 2πr²
.∴ Curved surface area of both hemispheres
= 2 × 2πr² = 4 × 227 × 3510 × 3510 cm² = 154 cm²

Base area of a hemisphere = πr²
.∴ Base area of both hemispheres = 2πr²
= 2 × 227 × (3.5)² = 2 × 22 × 35 × 357 × 100 cm² = 77 cm²

∴ Total surface area of the remaining solid
= 297 cm² + 154 cm² − 77 cm²
= (451 − 77) cm² = 374 cm².

Exercise 12.2

[Unless stated otherwise, take π = 22/7]
Q1. A solid is in the shape of a cone standing on a hemisphere with both their radii being equal to 1 cm and the height of the cone is equal to its radius. Find the volume of the solid in terms of π.
Sol. Here, r = 1 cm and h = 1 cm.
∵ Volume of the conical part = 1/3 πr²h
Volume of the hemispherical part =2/3 πr³
∴ Volume of the solid shape
= 13 πr²h + 23 πr³ = 13 πr² [h + 2r]
= 13 π (1)² [1 + 2 (1)] cm³ = 13 π × 1 × [3] cm³
= 3π3 cm³ = π cm³

Q2. Rachel, an engineering student, was asked to make a model shaped like a cylinder with two cones attached at its two ends by using a thin aluminium sheet. The diameter of the model is 3 cm and its length is 12 cm. If each cone has a height of 2 cm, find the volume of air contained in the model that Rachel made. (Assume the outer and inner dimensions of the model to be nearly the same.)
Sol. Here, diameter = 3 cm
⇒ Radius (r)= 3/2 cm
Total height = 12 cm
Height of a cone (h₁) = 2 cm
∴ Height of both cones = 2 × 2 = 4 cm
⇒ Height of the cylinder (h₂) = (12 − 4) cm = 8 cm.
Now, volume of the cylindrical part = πr²h₂
Volume of both conical parts = 2 [ 13 πr²h₁]
.∴ Volume of the whole model
= πr²h₂ + 23 πr²h₁ = π² [h₂ + 23 h₁]
= 227 × (3/2)³ × 8 + 23 cm³ = 227 × 94 × 24 + 43 cm³
= 227 × 34 × 28 cm³ = 223 cm³ = 66 cm³

Q3. A gulab jamun contains sugar syrup up to about 30% of its volume. Find approximately how much syrup would be found in 45 gulab jamuns, each shaped like a cylinder with two hemispherical ends with length 5 cm and diameter 2.8 cm (see figure).

Sol. Since a gulab jamun is like a cylinder with hemispherical ends.
Total height of the gulab jamun = 5 cm.
Diameter = 2.8 cm
⇒ Radius = 1.4 cm
∴ Length (height) of the cylindrical part = 5 cm − (1.4 + 1.4) cm
= 5 cm − 2.8 cm = 2.2 cm
Now, volume of the cylindrical part
= πr²h
Volume of a hemispherical end = 2/3 πr³
Volume of both the hemispherical ends

∴ Volume of a gulab jamun

= πr²h + 43 πr³
= πr² [h + 43]
= 227 × (1.4)² [2.2 + 43 (1.4)] cm³
= 227 × 1.96 [2.2 + 43 (1.4)] cm³
= 22 × 2 × 147 × 10 [66 + 56] cm³
= 44 × 14100 cm³ = 122 cm³

⇒ Volume of 45 gulab jamuns = 45 × 44 × 14 × 14 × 122100 × 30 cm³ = 15 × 44 × 14 × 14 × 1221000 cm³
Since the quantity of syrup in gulab jamuns
= 30% of [volume] = 30% of 15 × 44 × 14 × 14 × 1221000 cm³ = 338.184 cm³
= 338 cm³ (approx.)

Q4. A pen stand made of wood is in the shape of a cuboid with four conical depressions to hold pens. The dimensions of the cuboid are 15 cm by 10 cm by 3.5 cm. The radius of each of the depressions is 0.5 cm and the depth is 1.4 cm. Find the volume of wood in the entire stand (see Fig.).

Sol. Dimensions of the cuboid are 15 cm, 10 cm and 3.5 cm.
∴ Volume of the cuboid = 15 × 10 × 3510 cm³ = 525 cm³
Since each depression is conical with base radius (r) = 0.5 cm and depth (h) = 1.4 cm,
.∴ Volume of each depression (cone)
= 13 πr²h = 13 × 227 × 510² × 1410 cm³
Since there are 4 depressions,
.∴ Total volume of 4 depressions
= 4 × 1 × 22 × 5 × 5 × 143 × 7 × 10 × 10 × 10 cm³
= 4 × 1130 cm³ = 4430 cm³
Now, volume of the wood in the entire stand
= [Volume of the wooden cuboid] − [Volume of 4 depressions]
= 525 − 4430 cm³
= 15750 − 4430 cm³ = 1570630 cm³
= 523.53 cm³

Q5. A vessel is in the form of an inverted cone. Its height is 8 cm and the radius of its top, which is open, is 5 cm. It is filled with water up to the brim. When lead shots, each of which is a sphere of radius 0.5 cm are dropped into the vessel, one-fourth of the water flows out. Find the number of lead shots dropped in the vessel.

Sol. Height of the conical vessel (h) = 8 cm
Base radius (r) = 5 cm
∴ Volume of the cone = 1/3 πr²h
= 13 × 227 × (5)² × 8 cm³
= 440021 cm³
Since Volume of the cone = [Volume of water in the cone]
.∴ [Volume of water in the cone] = 440021 cm³
Now, Total volume of lead shots = 14 of [Volume of water in the cone]
= 14 × 440021 cm³ = 110021 cm³
Since, radius of a lead shot (sphere) (r) = 0.5 cm,
.∴ Volume of 1 lead shot = 43 πr³ = 43 × 227 × 510 × 510 × 510 cm³
.∴ Number of lead shots = Total volume of lead shotsVolume of 1 lead shot
= 110021 ÷ 4 × 22 × 5 × 5 × 53 × 7 × 1000
= 100
Thus, the required number of lead shots = 100.

Q6. A solid iron pole consists of a cylinder of height 220 cm and base diameter 24 cm, which is surmounted by another cylinder of height 60 cm and radius 8 cm. Find the mass of the pole, given that 1 cm³ of iron has approximately 8 g mass. (Use π = 3.14)

Sol. Height of the big cylinder (h) = 220 cm
Base radius (r) = 24/2 cm = = 12 cm
∴ Volume of the big cylinder = πr²h = π (12)2 × 220 cm³
Also, height of smaller cylinder (h₁) = 60 cm
Base radius (r₁) = 8 cm
∴ Volume of the smaller cylinder πr₁²h₁ = π (8)2 × 60 cm³
∴ Volume of iron
= [Volume of big cylinder] + [Volume of the smaller cylinder]
= π × 220 × 122 + π × 60 × 8² cm³
= 3.14 [220 × 12 × 12 + 60 × 8 × 8] cm³ = 314/100 [20 × 144 + 60 × 64] cm³

= 314100 × [31680 + 3840] cm³ = 314100 × 35520 cm³
Mass of iron = 8 × 314 × 35520100 g = 89226240100 g = 892262410000 g
= 892.2624 kg
= 892.26 kg.

Q7. A solid consisting of a right circular cone of height 120 cm and radius 60 cm standing on a hemisphere of radius 60 cm is placed upright in a right circular cylinder full of water such that it touches the bottom. Find the volume of water left in the cylinder, if the radius of the cylinder is 60 cm and its height is 180 cm.
Sol. Height of the conical part = 120 cm.
Base radius of the conical part = 60 cm.
∴ Volume of the conical part = 13 × 227 × 60² × 120 cm³
Radius of the hemispherical part = 60 cm.
.∴ Volume of the hemispherical part = 23 × 227 × 60³ cm³
.∴ Volume of the solid
= [Volume of conical part] + [Volume of hemispherical part]
= 13 × 227 × 60² × 120 + 23 × 227 × 60³ cm³
= 2 × 22 × 60 × 60 × 407 cm³ = 63360007 cm³
Volume of the cylinder = πr²h
= 227 × 60² × 180 cm³ = 22 × 60 × 60 × 1807 cm³
= 142560007 cm³

⇒ Volume of water in the cylinder = 142560007 cm³
.∴ Volume of the water left in the cylinder
= 142560007 − 63360007 cm³
= 79200007 cm³
= 1131428.57142 cm³
= 1131428.571421000000 m³ [∵ 1000000 cm³ = 1 m³]
= 1.13142857142 m³ = 1.131 m³ (approx.)

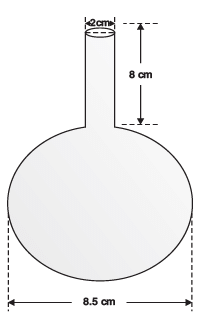

Q8. A spherical glass vessel has a cylindrical neck 8 cm long, 2 cm in diameter; the diameter of the spherical part is 8.5 cm. By measuring the amount of water it holds, a child finds its volume to be 345 cm³. Check whether she is correct, taking the above as the inside measurements, and π = 3.14.
Sol. Volume of the cylindrical part
= πr²h = 3.14 × 1² × 8 cm³ [∵ Radius = 2/3 = 1 cm, height (h) = 8 cm]
= 314100 × 8 cm³
Volume of the spherical part
= 43 πr₁³   | Here r₁ = 8.52 cm
= 43 × 314100 × 8520 × 8520 × 8520 cm³
Total volume of the glass-vessel
= 314100 × 8 + 314100 × 43 × 85 × 85 × 858000
= 314100 [8 + 4 × 85 × 85 × 8524000] cm³
= 314100 [8 + 6141256000] cm³
= 314100 × 48000 + 6141256000 cm³
= 314100 × 6621256000 cm³
= 314100 × 529724 cm³
= 157100 × 529724 cm³ = 8316292400 cm³
≈ 346.51 cm³ (approx.)
⇒ Volume of water in the vessel = 346.51 cm³

Since the child finds the volume as 345 cm³
∴ The child’s answer is not correct
⇒ The correct answer is 346.51 cm³.
