The earth’s radius is 6,370 km. As no one can reach the center of the earth, most of our knowledge about the interior of the earth is largely based on estimates and inferences.
Sources of Information about The Interior

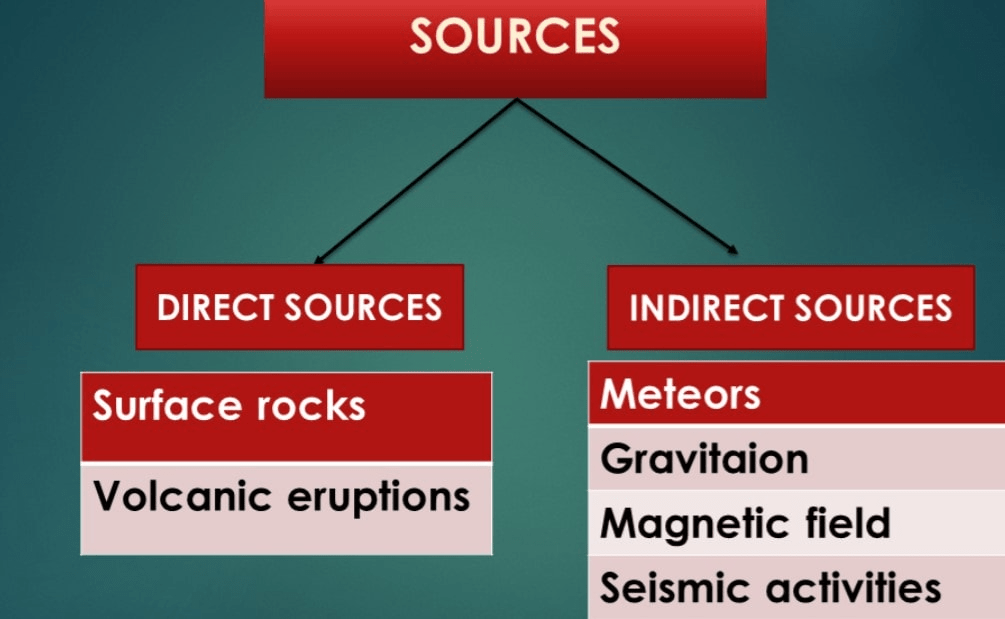

There are two sources for information about the interior of the earth:
a) Direct Sources
b) Indirect SourcesDirect Sources
Direct sources include rock materials from mining areas and molten magma from volcanic eruptions.
- Surface rock or the rocks we get from mining areas.
Example- Gold mines in South Africa are as deep as 3 - 4 km.
- Scientists have taken up a number of projects to penetrate deeper depths to explore the conditions in the crustal portions.
Example- Scientists world over are working on two major projects such as “Deep Ocean Drilling Project” and “Integrated Ocean Drilling Project”.
- The deepest drill at Kola, in the Arctic Ocean, has so far reached a depth of 12 km
- Volcanic eruption forms another source of obtaining direct information.
- As and when the molten material (magma) is thrown onto the surface of the earth, during volcanic eruption it becomes available for laboratory analysis.
- This and many deep drilling projects have provided a large volume of information through the analysis of materials collected at different depths.
Indirect sources include meteors that at times reach the earth, gravitation, magnetic field, and seismic activity.
- We know through the mining activity that temperature and pressure increase with the increasing distance from the surface towards the interior in deeper depths.
- Moreover, it is also known that the density of the material also increases with depth.
- It is possible to find the rate of change of these characteristics.
- Knowing the total thickness of the earth, scientists have estimated the values of temperature, pressure, and the density of materials at different depths.
- Another source of information is the meteors that at times reach the earth.
- However, it may be noted that the material that becomes available for analysis from meteors, is not from the interior of the earth.
- The material and the structure observed in the meteors are similar to that of the earth.
- They are solid bodies developed out of materials same as, or similar to, our planet.
- The other indirect sources include gravitation, magnetic field, and seismic activity.
- The gravitation force (g) is not the same at different latitudes on the surface.
- It is greater near the poles and less at the equator.
- This is because of the distance from the center at the equator being greater than that at the poles. The gravity values also differ according to the mass of the material.
- The reading of gravity at different places is influenced by many other factors. These readings differ from the expected values. Such a difference is called gravity anomaly.
- Gravity anomalies give us information about the distribution of mass of the material in the crust of the earth.
- Magnetic surveys also provide information about the distribution of magnetic materials in the crustal portion, and thus, provide information about the distribution of materials in this part.
- Seismic activity is one of the most important sources of information about the interior of the earth.
It is the shaking of the earth, natural event. It is caused due to release of energy which generates waves that travel to all directions.
- The study of seismic waves provides a complete picture of the layered interior.
- An earthquake in simple words is shaking of the earth. It is a natural event.
- It is caused due to release of energy, which generates waves that travel in all directions. The release of energy occurs along a fault.
- A fault is a sharp break in the crustal rocks. Rocks along a fault tend to move in opposite directions. (as in case of Indian and Eurasia plate happen during Nepal earth quack)
- As the overlying rock strata press them, the friction locks them together. However, their tendency to move apart at some point of time overcomes the friction.
- As a result, the blocks get deformed, and eventually, they slide past one another abruptly. This causes a release of energy, and the energy waves travel in all directions.

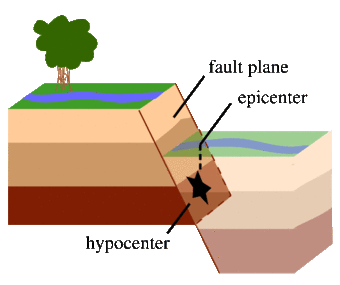

- The point where the energy is released is called the focus of an earthquake, alternatively, it is called the hypocentre. ( somewhere inside the earth )
- The point on the surface, nearest to the focus, is called epicenter. It is the first one to experience the waves. It is a point directly above the focus. (always above the hypocenter and on the surface of the earth)
Why does the Earth Shake?
Question for Revision Notes - Interior of the Earth
Try yourself:Which one of the following is a direct source of the information about the interior of the Earth?
Seismic activity is one of the most important sources of information about the interior of the earth. Earth quakes generate different types of waves. The characteristics of the waves suggest properties of different layers of the earth.
However, the tendency of movement overcomes the friction.
As a result, blocks get deformed. They slide over another: as a result energy releases.
Energy waves travel in all directions.
The point where energy releases is called focus/hypocenter Above the focus point on the surface it is called the epicenter
- All-natural earthquakes take place in the lithosphere (depth up to 200 km from the surface of the earth.)
- An instrument called ‘seismograph’ records the waves reaching the surface.

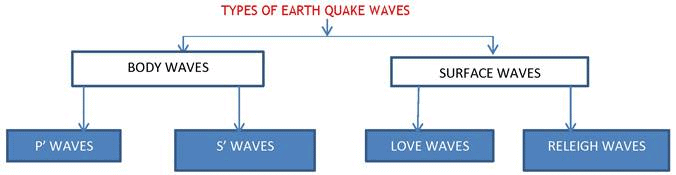

- Two types of waves — body waves and surface waves.
- Body waves are generated due to the release of energy at the focus and move in all directions traveling through the body of the earth. Hence, the name body waves.
- The body waves interact with the surface rocks and generate a new set of waves called surface waves. These waves move along the surface.
- The velocity of waves changes as they travel through materials with different densities.
- The denser the material, the higher is the velocity.
- Their direction also changes as they reflect or refract when coming across materials with different densities.
Propagation of Earth Quake Waves
They are called P and S-waves.
P-waves: move faster and are the first to arrive at the surface. These are also called ‘primary waves’.
- The P-waves are similar to sound waves.
- They travel through gaseous, liquid, and solid materials. (as sound)
- P-waves vibrate parallel to the direction of the wave. (P for parallel)
- This exerts pressure on the material in the direction of the propagation.
- As a result, it creates density differences in the material leading to stretching and squeezing of the material
S-waves: arrive at the surface with some time lag. These are called secondary waves.
- An important fact about S-waves is that they can travel only through solid materials. (important)
- It has helped scientists to understand the structure of the interior of the earth.
- Reflection causes waves to rebound whereas refraction makes waves move in different directions.
- These waves are more destructive. They cause the displacement of rocks, and hence, the collapse of structures occurs.
- The direction of vibrations of S-waves is perpendicular to the wave direction in the vertical plane.
- Hence, they create troughs and crests in the material through which they pass.
The Emergence of Shadow Zone
- Earthquake waves get recorded in seismo- graphs located at far-off locations. However, there exist some specific areas where the waves are not reported. Such a zone is called the ‘shadow zone’.
- A zone between 105° and 145° from epicenter was identified as the shadow zone for both types of waves.
- The entire zone beyond 105° does not receive S-waves. The shadow zone of S-wave is much larger than that of the P-waves.
- The shadow zone of P-waves appears as a band around the earth between 105° and 145° away from the epicenter.
Types of Earthquakes
- The most common ones are tectonic earthquakes. These are generated due to sliding of rocks along a fault plane.
- A special class of tectonic earthquakes is sometimes recognized as volcanic earthquakes. However, these are confined to areas of active volcanoes.
- In the areas of intense mining activity, sometimes the roofs of underground mines collapse causing minor tremors. These are called collapse earthquakes.
- Ground shaking may also occur due to the explosion of chemical or nuclear devices. Such tremors are called explosion earthquakes.
- The earthquakes that occur in the areas of large reservoirs are referred to as reservoir induced earthquakes
Effects of Earthquake
- The earthquake events are scaled either according to the magnitude or intensity of the shock.
- The magnitude scale is known as the Richter scale.
- The magnitude relates to the energy released during the quake.
- The magnitude is expressed in absolute numbers, 0-10.
- The intensity scale is named after Mercalli, an Italian seismologist.
- The intensity scale takes into account the visible damage caused by the event.
- The range of intensity scale is from 1-12.
Earthquake is a natural hazard. The following are the immediate hazardous effects of earthquake:
- Ground Shaking
- Differential ground settlement
- Land and mud slides
- Soil liquefaction
- Ground lurching
- Ground displacement
- Floods from dam and levee failures
- Structural collapse
- Falling objects

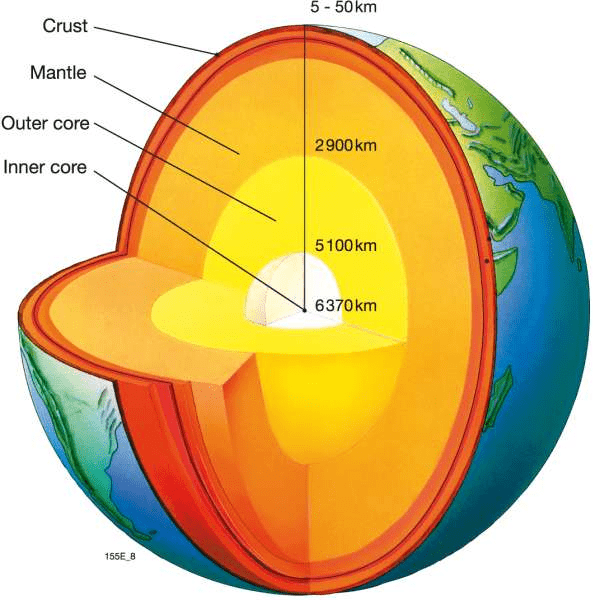

Structure of the Earth
- The first six listed above have some bearings upon landforms, while others may be considered the effects causing immediate concern to the life and properties of people in the region.
- The effect of tsunami would occur only if the epicenter of the tremor is below oceanic waters and the magnitude is sufficiently high.
- Tsunamis are waves generated by tremors and not an earthquake in itself.
- Though the actual quake activity lasts for a few seconds, its effects are devastating provided the magnitude of the quake is more than 5 on the Richter scale.
- It is the outermost solid part of the earth.
- It is brittle in nature.
- The thickness of the crust varies under the oceanic and continental areas. Oceanic crust is thinner as compared to the continental crust.
- The mean thickness of the oceanic crust is 5 km whereas that of the continental is around 30 km.
- It is as much as 70 km thick in the Himalayan region.
- It is made up of heavier rocks having a density of 3 g/cm3.
- This type of rock found in the oceanic crust is basalt.
- The mean density of material in the oceanic crust is 2.7 g/cm3.
- The portion of the interior beyond the crust is called the mantle.
- The mantle extends from Moho’s discontinuity to a depth of 2,900 km.
- The upper portion of the mantle is called asthenosphere.
- The word astheno means weak. It is considered to be extending up to 400 km.
- It is the main source of magma that finds its way to the surface during volcanic eruptions. It has a density higher than the crust’s (3.4 g/cm3).
- The crust and the uppermost part of the mantle are called the lithosphere. Its thickness ranges from 10-200 km.
- The lower mantle extends beyond the asthenosphere. It is in solid-state
- The core-mantle boundary is located at the depth of 2,900 km.
- The outer core is in a liquid state while the inner core is in solid-state.
- The density of material at the mantle core boundary is around 5 g/cm3 and at the centre of the earth at 6,300 km, the density value is around 13g/cm3.
- The core is made up of very heavy material mostly constituted by nickel and iron. It is sometimes referred to as the nife layer.
Question for Revision Notes - Interior of the Earth
Try yourself:The innermost layer of the earth is?
The innermost layer of the earth is known as the core. It is divided into inner core and outer core. It comprises of a high concentration of nickel and iron.
Volcanoes And Volcanic Landforms
A volcano is a place where gases, ashes, and/or molten rock material – lava – escape to the ground.
- A volcano is called an active volcano if the materials mentioned are being released or have been released out in the recent past.
- The mantle contains a weaker zone called asthenosphere.
- The material in the upper mantle(asthenosphere ) portion is called magma.
- Once it starts moving towards the crust or it reaches the surface, it is referred to as lava.
- The material that reaches the ground includes lava flows, pyroclastic debris, volcanic bombs, ash and dust, and gases such as nitrogen compounds, sulphur compounds, and minor amounts of chlorine, hydrogen, and argon.

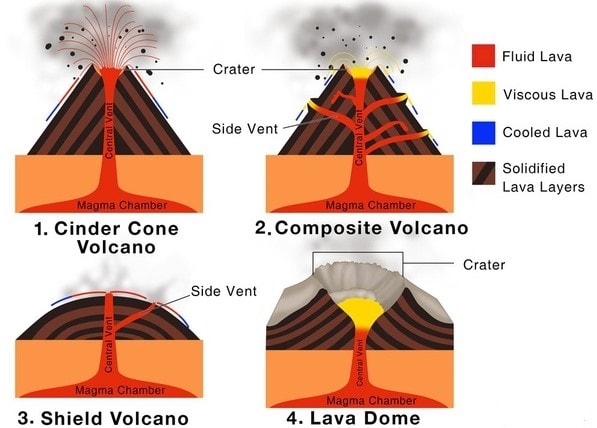

- Volcanoes are classified on the basis of the nature of eruption and the form developed at the surface. Major types of volcanoes are as follows:
Barring the basalt flows, the shield volcanoes are the largest of all the volcanoes on the earth.
- The Hawaiian volcanoes are the most famous examples.
- These volcanoes are mostly made up of basalt, a type of lava that is very fluid when erupted.
- For this reason, these volcanoes are not steep.
- They become explosive if somehow water gets into the vent; otherwise, they are characterized by low explosivity. (imp)
- The upcoming lava moves in the form of a fountain and throws out the cone at the top of the vent and develops into a cinder cone.
- These volcanoes are characterized by eruptions of cooler and more viscous lavas than basalt.
- These volcanoes often result in explosive eruptions.
- Along with lava, large quantities of pyroclastic material and ashes find their way to the ground.
- This material accumulates in the vicinity of the vent openings leading to the formation of layers, and this makes the mounts appear as composite volcanoes. more than 50 m. Individual flows may extend for hundreds of km.
- The Deccan Traps from India, presently covering most of the Maharashtra plateau, are a much larger flood basalt province.
Flood Basalt Provinces
- These are the most explosive of the earth’s volcanoes.
- They are usually so explosive that when they erupt they tend to collapse on themselves rather than building any tall structure.
- The collapsed depressions are called calderas.
- Their explosiveness indicates that the magma chamber supplying the lava is not only huge but is also in close vicinity.
Mid-Ocean Ridge Volcanoes
- These volcanoes outpour highly fluid lava that flows for long distances.
- Some parts of the world are covered by thousands of sq. km of thick basalt lava flows. There can be a series of flows with some flows attaining a thickness.
- These volcanoes occur in oceanic areas.
- There is a system of mid-ocean ridges more than 70,000 km long that stretches through all the ocean basins.
- The central portion of this ridge experiences frequent eruptions.
- The lava that is released during volcanic eruptions on cooling develops into igneous rocks.
- The cooling may take place either on reaching the surface or also while the lava is still in the crustal portion.
- Depending on the location of the cooling of the lava, igneous rocks are classified as volcanic rocks (cooling at the surface) and plutonic rocks (cooling in the crust).
The lava that cools within the crustal portions assumes different forms. These forms are called intrusive forms.
- A large body of magmatic material that cools in the deeper depth of the crust develops in the form of large domes.
- They appear on the surface only after the denudational processes remove the overlying materials.
- They cover large areas, and at times, assume depth that may be several km. These are granitic bodies.
- Batholiths are the cooled portion of magma chambers.
Lopolith, Phacolith, and Sills
- These are large dome-shaped intrusive bodies with a level base and connected by a pipe-like conduit from below.
- It resembles the surface volcanic domes of the composite volcanoes, only these are located at deeper depths.
- It can be regarded as the localized source of lava that finds its way to the surface.
- The Karnataka plateau is spotted with domal hills of granite rocks.
- Most of these, now exfoliated, are examples of laccoliths or batholiths.
- As and when the lava moves upwards, a portion of the same may tend to move in a horizontal direction wherever it finds a weak plane.
- It may get rested in different forms. In case it develops into a saucer shape, concave to the sky body, it is called lopolith.
- A wavy mass of intrusive rocks, at times, is found at the base of synclines or at the top of anticline in the folded igneous country. Such wavy materials have a definite conduit to source beneath in the form of magma chambers (subsequently developed as batholiths). These are called the phacoliths.
- The near horizontal bodies of the intrusive igneous rocks are called sill or sheet, depending on the thickness of the material. The thinner ones are called sheets while the thick horizontal deposits are called sills.
- When the lava makes its way through cracks and the fissures developed in the land, it solidifies almost perpendicular to the ground.
- It gets cooled in the same position to develop a wall-like structure. Such structures are called dykes.
- These are the most commonly found intrusive forms in the western Maharashtra area.
- These are considered the feeders for the eruptions that led to the development of the Deccan traps.
Some Solved Questions
Q.1. What are the effects of propagation of earthquake waves on the rock mass through which they travel?
Ans: Earthquake waves are basically of two types: Body waves and surface waves. Body waves are generated due to the release of energy at the focus and move in all directions travelling through the body of the earth. Therefore these are called body weaves. The body waves interact with the surface rocks and generate new set of waves called surface waves. These waves move along the surface. The velocity of waves changes as they travel through materials with different densities. The denser the material, the higher is the velocity. The direction of vibrations of S-waves is perpendicular to the wave direction in the vertical plane. Hence, they create troughs and crests in the material through which they pass. Surface waves are considered to be the most damaging waves.
Seismographs located at any distance within 105° from the epicenter, recorded the arrival of both P and S-waves, However, the seismographs located beyond 145° from epicenter, record the arrival of P-waves, hut not that of S-waves. Thus, a zone between 105° and 145° from epicenter was identified as the shadow zone for both the types of waves. The entire zone beyond 105° does not receive S-waves. The shadow zone of S-wave is much larger than that of the P-waves. The shadow zone of P-waves appears as a band around the earth between 105° and 145° away from the epicenter. The shadow zone of S-waves is not only larger in extent but it is also a little over 40 percent of the earth's surface.
Q.2. What do you understand by intrusive forms? Briefly describe various intrusive forms.
Ans: The lava that cools within the crustal portions assumes different forms. These forms are called intrusive forms. Important intrusive forms are described below:
Batholiths: A large body of magmatic material that cools in the deeper depth of the crust develops in the form of large
domes. Batholiths are the cooled portion of magma chambers.
Lacoliths: These are large dome-shaped intrusive bodies with a level base and connected by a pipe-like conduit from below. It resembles the surface volcanic domes of composite volcanoes, only these are located at deeper depths.
Lopolith: As and when the lava moves upwards, a portion of the same may tend to move in a horizontal direction wherever it finds a weak plane. It may get rested in different forms. In case it develops into a saucer shape, concave to the sky body, it is called lopolith.
Phaeolith: A wavy mass of intrusive rocks, at times, is found at the base of synclines or at the top of anticline in folded igneous country. Such wavy materials have a definite conduit to source beneath in the form of magma chambers (subsequently developed as batholiths). These are called the phacoliths.
Sills: The near horizontal bodies of the intrusive igneous rocks are called sill or sheet, depending on the thickness of the material. The thinner ones are called sheets while the thick horizontal deposits are called sills.
Dykes: When the lava makes its way through cracks and the fissures developed in the land, it solidifies almost perpendicular to the ground. It gets cooled in the same position to develop a wall-like structure. Such structures are called dykes.
