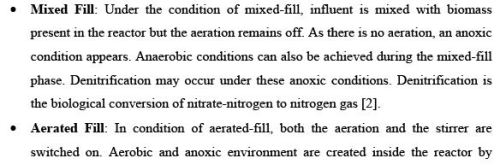

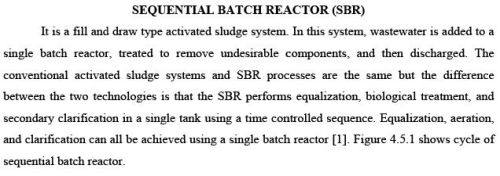

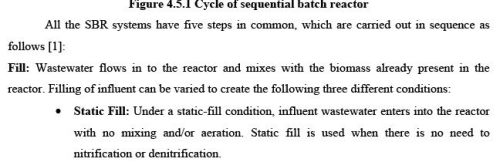

 keeping on/off oxygen supply to the reactor. During the aerobic condition nitrification takes place. Aerated Fill can reduce the aeration time required in the react step.

React: Depending on the conditions applied: anaerobic, anoxic or aerobic reactions, substrate present in the waste water are consumed by the biomass.

Settle: After sufficient time of reaction, aeration and mixing is stopped and biomass is allowed to settle from the liquid resulting in clear supernatant.

Decant: Clear supernatant (treated waste water) is removed from the reactor.

Idle: This is the time between cycles which is used to prepare the SBR for next cycle. It is also used to adjust the cycle time between the SBR reactors. Sludge wasting is also performed during this phase.


OPERATING PARAMETERS IN SBR PROCESS

The treatment efficiency of SBR depends on the operating parameters such as phase duration, hydraulic retention time (HRT) and organic loading, Sludge retention time (SRT), temperature, mixed liquor suspended solids (MLSS), mixed liquor volatile suspended solids (MLVSS), dissolved oxygen (DO) concentration and the strength of wastewater. Cycle time: A cycle in SBR comprises of fill, react, settle, decant and idle phase. The total cycle time (tC) is the sum of all these phases.

tC = tF + tR +tS +tD + tI        (4.5.1)

Where, tF is the fill time (h), tR is the react time (h), tS is the settle time (h), tD is the decant time (h), and tI is the idle time (h). Moreover during the react phase, organic matters, nitrogen or phosphorus removal may be achieved by arresting aerobic, anoxic or anaerobic condition, respectively. Therefore, aerobic, anoxic or anaerobic time can be found in react time (tR).

Hence tR = tAE + tAX + tAN         (4.5.2)

Where, tAE is the aerobic react time (h), tAX is the anoxic react time (h), and tAN is the anaerobic react time (h).

Volume exchange ratio (VER) and hydraulic retention time (HRT): Due to filling and decanting phase during a cycle, SBR operate with varying volume. Volume exchange ratio (VER) for a cycle is defined as VF/VT, Where, Vis the filled volume of wastewater and decanted effluent for a cycle and VT is the total working volume of the reactor .

HRT for the continuous system is defined as

Sequential Batch Reactor Notes | Study Environmental Engineering - Civil Engineering (CE)(4.5.3)
 Where, Q is the daily waste water flow rate. For SBR systems;

Sequential Batch Reactor Notes | Study Environmental Engineering - Civil Engineering (CE) (4.5.4)
  Where, NC is t he number of cycles per day and defined as:

Sequential Batch Reactor Notes | Study Environmental Engineering - Civil Engineering (CE) (4.5.5)
 Therefore, HRT for the SBR systems may be given as:

Sequential Batch Reactor Notes | Study Environmental Engineering - Civil Engineering (CE) (4.5.6)

Solid Retention Time (SRT): In biological treatment of wastewater, excess sludge is withdrawn from the reactor to control the sludge age (SRT). SRT determines the time (d) for which the biomass is retained in the reactor.

Sequential Batch Reactor Notes | Study Environmental Engineering - Civil Engineering (CE) (4.5.7)
 Where, X is the MLSS in the reactor with full filled (mg/l), Xis the MLSS in waste stream (mg/l), and VW is the waste sludge volume (l).



NITRIFICATION AND DENITRIFICATION

Nitrogen is the main source of eutrophication. In this regard, the complete oxidation of nitrogen during the treatment is favorable. Biological nitrogen is removed in two stages: aerobic nitrification and anoxic denitrification. In the nitrification process, ammonia (N-NH4+) is oxidized to nitrite (N-NO2-) (equation 3.4.8) by autotrophic bacteria called Nitroso-bacteria and generated nitrite is oxidized to nitrate (N-NO3-) (equation 3.4.9) by another group of autotrophic bacteria called Nitro-bacteria under aerobic conditions and using oxygen as the electron acceptor.

Sequential Batch Reactor Notes | Study Environmental Engineering - Civil Engineering (CE)

The autotrophic bacteria produce energy for their multiplication from the oxidation of inorganic nitrogen compounds, using inorganic carbon as their source of cellular carbon. During the nitrification, alkalinity of wastewater is used which reduces the pH of influent wastewater and required amount of alkalinity to carry out the reaction (equation 3.4.8, 3.4.9) in the CaCO3 form, can be calculated by the following equation;

Sequential Batch Reactor Notes | Study Environmental Engineering - Civil Engineering (CE)

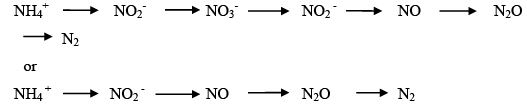

 Biological denitrification involves the biological oxidation of many organic substrates in wastewater treatment using nitrate or nitrite as the electron acceptor under the anoxic condition or limited dissolved oxygen (DO) concentrations and nitrate is degraded to nitric oxide, nitrous oxide, and nitrogen gas [4-6] by following any of the two different routes. One of these routes predominates depending on the dissolved oxygen concentration .

Sequential Batch Reactor Notes | Study Environmental Engineering - Civil Engineering (CE)

During the denitrification process, pH of influent wastewater increases because of increase of alkalinity. Both heterotrophic and autotrophic bacteria are capable of denitrification. Most of these heterotrophic bacteria are facultative aerobic organisms with the ability to use oxygen as well as nitrate or nitrite, and some can also carry out fermentation in the absence of nitrate or oxygen .


ADVANTAGES AND DISADVANTAGES OF SBR

 Advantages

  • Equalization, primary clarification (in most cases), biological treatment, and secondary clarification can be achieved in a single reactor vessel.
  • Operating flexibility and control.
  • Potential capital cost savings by eliminating clarifiers and other equipments.

Disadvantage

  • A higher level of sophistication, (compared to conventional systems), especially for larger systems, of timing units and controls is required.
  • Higher level of maintenance (compared to conventional systems) associated with more sophisticated controls, automated switches and automated valves.
  • Potential of discharging floating or settled sludge during the draw or decant phases with some SBR configurations.
  • Potential plugging of aeration devices during selected operating cycles, depending on the aeration system used by the manufacturer.
