THE HUMAN EYE & COLOURFUL WORLD
Our eye is the most important natural optical instrument. The eye resembles a camera in many ways. It has nearly a spherical shape.

What are the essential parts of the eye and their functions

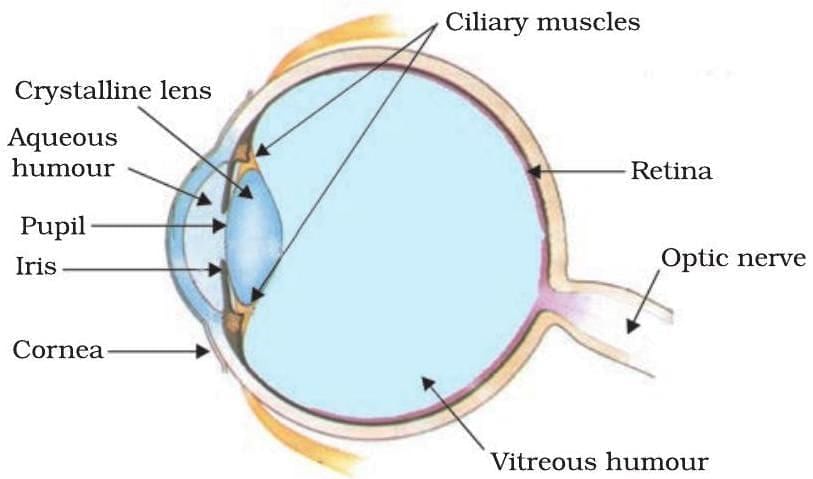

The essential parts of the eye are shown in Fig. and are described below:

(a) Cornea: The front of the eye is covered by a transparent spherical membrane called the cornea. Light  enters the eye through cornea. The space behind the cornea is filled with a clear liquid called aqueous humor.

(b) Iris and pupil: The iris and pupil form the variable aperture system of the eye. Iris is a dark coloured muscular diaphragm which has a small circular opening in its middle. The central circular aperture of iris is called pupil.

The iris regulates the amount of light entering the eye by adjusting the size of the pupil. This is explained below:

(i) When the light is very bright (as on a sunny day), the iris makes the pupil to contract. As a result, the amount of light entering the eye decreases.

(ii) When the light is dim (as in a dark room), the iris makes the pupil to expand. As a result, more light can enter the eye.

(c) Eye lens: The eye lens is a convex lens (converging lens) made of a transparent jelly-like proteinaceous material. The eye lens is hard at the middle and gradually becomes soft towards the outer edges. The eye lens is held in position by ciliary muscles. The curvature and therefore the eye lens may be changed by the action of the ciliary muscles.

(d) Retina: The inside surface of the rear part of the eye ball where the light entering the eye is focused is called retina. The surface of retina consist: of about 125 million light sensitive receptors. These receptors are of two types - rods and cones. When the light falls on these receptors, they send electrical signals to the brain through the optic nerve.

The space between the eye lens and retina is filled with another liquid called vitreous humor. The image formed on the retina is retained by it for about 1/ 16th of a second.

(e) Blind spot: There are no rods and cones at the point where optic nerve leaves the eye ball to go to the brain. So, if any image is formed in this part of the retina, then no signal is sent to the brain. As a result the object is not seen. This part is therefore called the blind spot of the eye.

HOW DOES THE EYE WORK?

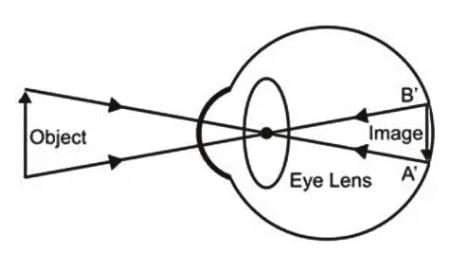

The light coming from an object enters the eye through cornea and the pupil. The eye lens converges these light rays to form a real, inverted and high diminished image on the retina. The surface of retina consists of a large number of light sensitive cells.

The Human Eye | Science Class 10

When light falls on them, they get activated and generate electrical signals. These signals are then sent to the brain by the optic nerves, and the observer sees the actual sized, erect image of the object.

What is meant by the far point, near point, and the least distance of distinct vision?
(a) Far point: The farthest point up to which an eye can see clearly is called the far point of the eye. For a normal eye, the far point is at infinity.
(b) Near point: The closest (nearest) point up to which an eye can see clearly is called the near point of the eye. The near point for a healthy normal eye of an adult lies about 25 cm from the eye.
(c) Least distance of distinct vision: The minimum distance up to which an eye can see clearly without any strain is called the least distance of distinct vision (denoted by d or D). The least distance of distinct vision is thus equal to the distance between the eye and its near point. For a normal eye of an adult, the least distance of distinct vision is about 25 cm. This distance usually increases with age.

POWER OF ACCOMMODATION OF THE EYE:



The Human Eye | Science Class 10

The Human Eye | Science Class 10

What is meant by accommodation of the eye?
 A normal eye can see both the distant and the nearby objects clearly. For a clear vision, the image of any object must fall on the retina. For a person, the distance between the retina and the eye lens is fixed. So, the distance of the image (v) from the eye lens is fixed. For objects at different distances, the values of u are different. So, to get the images at the same v, the focal length of the eye lens should be different.

The eye can focus the images of all the objects, distant or nearby, at the same place (on the retina) by changing the focal length of its lens. The eye lens can change its focal length by changing its thickness with the help of its ciliary muscles.

The property due to which eye lens is able to change its focal length is called accommodation of the eye.

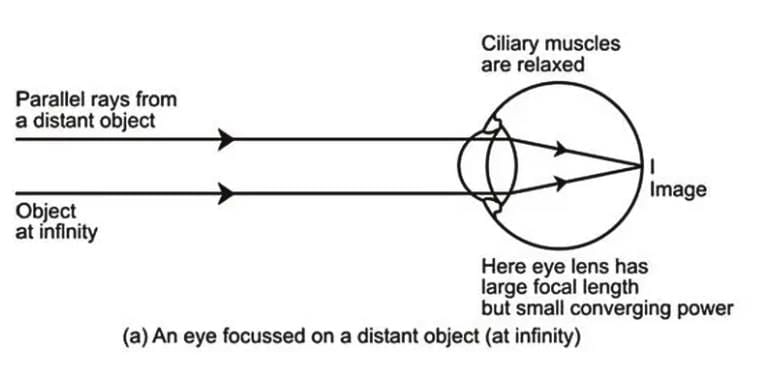

When the eye is focussed on distant objects (objects at infinity), the ciliary muscle is fully relaxed. When the ciliary muscle is in the relaxed state, the thickness of the lens is minimum and the focal length maximum: equal to the distance of the retina from the eye lens. Therefore, the parallel rays coming from any distant object are focussed on the retina, and the object is seen clearly.

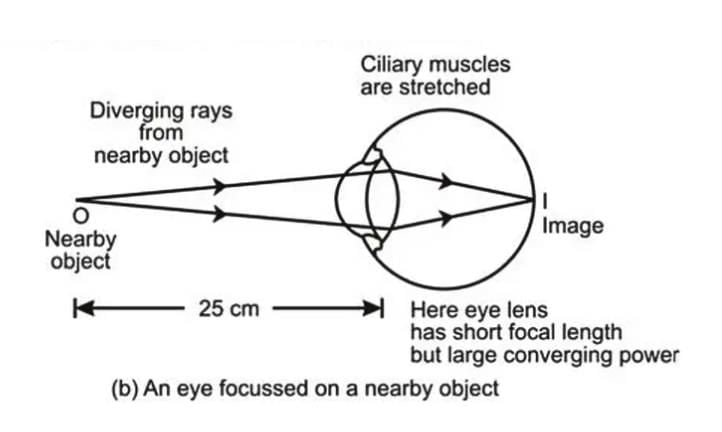

When the eye is focussed on a nearby object, the ciliary muscle gets strained (tense). Tension in the ciliary muscle decreases the focal length of the eye lens by slightly increasing its thickness in such a way that the image is formed on the retina. Thus, the eye focuses on the nearby objects by tensing the ciliary muscle.

These adjustments in the focal length of the eye lens take place so fast that we do not realize such changes.

What is meant by the limit of accommodation?
The eye can accommodate only up to a limit. A normal eye can accommodate up to the least distance of distinct vision: about 25 cm for a healthy adult. The objects which are very close to the eye produce blurred image. Thus, a normal eye can accommodate objects lying between infinity and the least distance of distinct vision.

What is the range of vision?
The range of distance over which the eye can see clearly is called its range of vision. A normal human eye can see objects clearly which lie between infinity and the least distance of distinct vision. So, the range of vision of a normal healthy human eye is from infinity to the least distance of distinct vision, i.e. from infinity to about 25 cm from the eye.

What is meant by the persistence of vision?
The image formed on the retina of the eyes is not permanent. It also does not fade away instantaneously after the object is removed or we have stopped seeing the object. The image formed on the retina persists for 1/16th of a second even after we have stopped looking at the object. The ability of the eye to retain the image (or the sensation caused by the light coming from the object) for about 1/16th of a second even after we have stopped seeing the object is called persistence of vision.

The phenomenon of persistence of vision is made use of in motion-picture projection (or cinematography). A sequence of still pictures are recorded on a film by a movie camera. This recorded film is projected on a screen at the speed of about 24 pictures per second. Due to the persistent of vision, the successive images on the screen merge smoothly into one another giving an impression of continuity. In this way, we are able to see the pictures in motion.

COLOUR VISION:
How do we see the colours?
We see an object only when its image is formed at the retina.

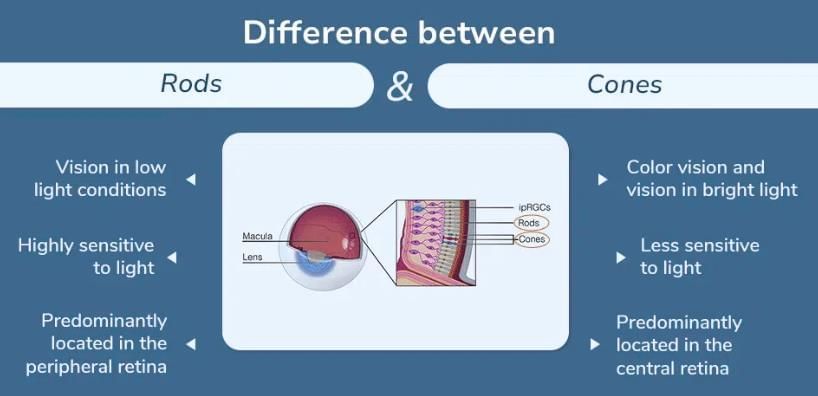

Our retina has a large number of light-sensitive cells. These cells are of two shapes - rods and cones .

  • The rod-shaped cells respond to the intensity of light, i.e. the degree of brightness or darkness is sensed by the rod-shaped cells on the retina of the eye .
  • The cone-shaped cells respond to the colours. These cells are sensitive to red, blue and green colours to different  extents. It is due to these cone-shaped cells that we are able to distinguish between different colours.

The cone-shaped cells become active only in bright light. That is why, we can't differentiate between colours in dim light. There are in fact three different kinds of the cone-shaped cells: one sensitive to red, second to green and the third to blue colour. So, depending upon the colour of the light entering the eye, one or more kinds of the cone-shaped cells get activated.

How do certain animals including birds differ in their colour perception?
The structure and the number of rod-shaped and cone-shaped cells are different for different animals/birds. As a result, therefore, their colour perceptions are also different. For example,

  • Bees have cones that are sensitive to ultraviolet light (light beyond violet colour). So, bees can see the ultraviolet light present in sunlight.
  • Human beings cannot see the ultraviolet light because the cones in their retina are not sensitive to the ultraviolet light.
  • The retina of chicken has mostly cone-shaped cells and only a few rod-shaped cells. It is because of this reason that a chicken can see only in bright light and wake up only when the sun rises and goes to sleep at sunset.
The document The Human Eye | Science Class 10 is a part of the Class 10 Course Science Class 10.
All you need of Class 10 at this link: Class 10
85 videos|437 docs|75 tests

Top Courses for Class 10

FAQs on The Human Eye - Science Class 10

1. What is the structure of the human eye?
Ans. The human eye is a complex organ consisting of several parts. It has a transparent front part called the cornea, a colored circular structure called the iris, a lens that focuses light onto the retina, and a light-sensitive layer called the retina at the back of the eye. The retina contains cells called photoreceptors that convert light into electrical signals, which are then transmitted to the brain through the optic nerve.
2. How does the human eye focus on objects at different distances?
Ans. The human eye focuses on objects at different distances through a process called accommodation. Accommodation is achieved by the contraction and relaxation of the ciliary muscles, which control the shape of the lens. When we focus on a distant object, the ciliary muscles relax, causing the lens to become thinner. This allows the lens to focus the incoming light rays directly onto the retina. When we focus on a nearby object, the ciliary muscles contract, causing the lens to become thicker. This increases the bending of light rays, enabling the image to be focused on the retina.
3. How does the retina send visual information to the brain?
Ans. The retina contains two types of photoreceptor cells called rods and cones. These cells detect light and convert it into electrical signals. The electrical signals are then transmitted to the bipolar cells and ganglion cells located in the retina. The ganglion cells bundle together to form the optic nerve, which carries the electrical signals to the brain. The brain processes these signals and interprets them as visual information, allowing us to perceive the world around us.
4. What is the role of the iris in the human eye?
Ans. The iris is the colored circular structure in the eye located behind the cornea. Its primary function is to regulate the amount of light entering the eye by controlling the size of the pupil. In bright light, the iris contracts, causing the pupil to become smaller and reducing the amount of light entering the eye. In dim light, the iris expands, causing the pupil to become larger, allowing more light to enter the eye.
5. What are the common vision problems associated with the human eye?
Ans. There are several common vision problems associated with the human eye, such as myopia (nearsightedness), hyperopia (farsightedness), and astigmatism. Myopia occurs when the eyeball is too long or the cornea is too curved, causing distant objects to appear blurry. Hyperopia occurs when the eyeball is too short or the cornea is too flat, making nearby objects appear blurry. Astigmatism is caused by an irregularly shaped cornea, resulting in blurred vision at all distances. These vision problems can be corrected with the use of corrective lenses or through surgical procedures like LASIK.
