Introduction

One of the most effective and efficient methods of controlling the traffic on a highway is the adoption of high intersection geometric design standards. Channelization is an integral part of at grade intersections and is used to separate turning movements from through movements where this is considered advisable and hence helps reduce the intensity and frequency of loss of life and property due to accidents to a large extent. Proper Channelization increases capacity, improves safety, provides maximum convenience, and instils driver confidence. Improper Channelization has the opposite effect and may be worse than none at all. Over Channelization should be avoided because it could create confusion and worsen operations.

31.2 Definitions and Important Terms

1. Channelization - It is the separation or regulation of conflicting traffic movements into definite paths of travel by traffic islands or pavement marking to facilitate the safe and orderly movements of both vehicles and pedestrians.

2. Conflict - It is defined as the demand for the same highway space by two or more users of the highway. Conflicts are classified into mainly three types:

(a) Crossing conflicts

(b) Diverging conflicts

(c) Merging conflicts

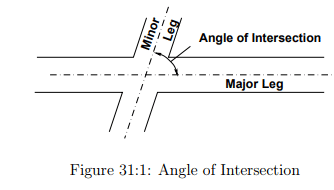

3. Angle of Intersection - The angle of intersection is that formed by the centerlines of the intersecting streets. Where the angle of intersection departs significantly (more than approximately 20o ) from right angles, the intersection is referred to as a skewed intersection. Fig. 31:1 shows the angle made between the center lines of the major and minor legs.

Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

4. Refuge Areas - The area which is used to give refuge to the pedestrians crossing a street (the open area between two medians) is known as a refuge area.



Objectives

The use of Channelization is often creative and innovative, providing for vehicle path separation and distinct and thus in general making traffic flow safer, smoother, simpler and efficient. The main objectives of Channelization can be summarized as follows:

1. Separation of maneuver areas: The drivers should be presented with only one decision at a time to reduce confusion and the influence of operations caused due to the overlapping of maneuver areas.

2. Reduce excessively large paved areas: The spread of the paved area can be considerably reduced by the construction of raised islands and medians where these are considered safe and necessary.

3. Control of maneuver angle:The intensity of accidents can be reduced to a large extent by providing small angles for merging, diverging and weaving (at low relative speeds) and approximately right angles for crossing (at high relative speeds). The maneuver angle can be easily controlled by constructing islands of appropriate shapes and sizes.

4. Favor predominant turning movements: Channelization is also directed for giving preference to turning movements at an intersection where the proportion of such traffic is high.



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

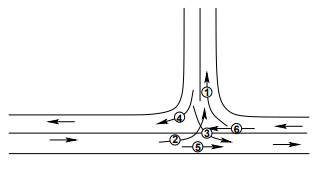

Figure 31:2: Illustration of T-intersection Channelization, (a)Intersection with no Channelization

5. Control of speed: Channelization is also used for supporting stop or speed regulations by removing differentials in speed for merging, diverging, weaving and crossing by using the bending and funneling techniques.

6. Protection and storage of turning and crossing vehicles: To shadow slow or stopped vehicles from other traffic flows.

7. Blockage of prohibited movements: Proper Channelization also helps maintain traffic regulations by making prohibited movements impossible or inconvenient.

8. Provide space for traffic control devices: To provide space for traffic control devices when the ideal location for the same is within the intersection area.

9. Segregation of non-homogeneous flows: Channelization provides separate channels for turning and through, fast and slow, and opposite direction traffic.

10. Protection of pedestrians and reduction of crossing distances between refuses: Non-traversable and wide medians provide a refuge for pedestrians crossing a street.

Consider for example the T-intersection shown in Figs. 31:2, 31:3, and 31:4. In Fig. 31:2, the intersection has no special Channelization for helping drivers in avoiding conflicts between movements. In Fig. 31:3, a passing lane for through vehicles in the eastbound direction and a westbound right-turn lane has been added, which helps in separating the turning traffic from the through ones. In Fig. 31:4, the use of lanes is further clarified due to the addition of channelizing islands.



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

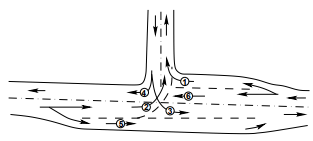

Figure 31:3: Illustration of T-intersection Channelization, (b)Intersection with right-turn and passing lane



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

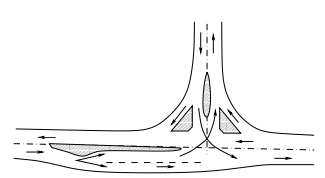

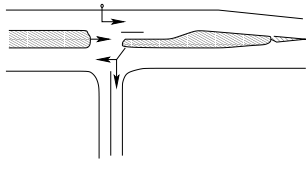

Figure 31:4: Illustration of T-intersection Channelization, (c)Fully channelized intersection

Design Principles

Design of a channelized intersection usually involves the following significant controls: the type of design vehicle, the cross sections on the crossroads, the projected traffic volumes in relation to capacity, the number of pedestrians, the speed of vehicles, and the type and location of traffic control devices. Furthermore, the physical controls such as right-of-way and terrain have an effect on the extent of Channelization that is economically feasible. The degree to which each of these principles applies will depend upon the features mentioned above. While a principle may be modified in its application to a particular site, disregard of these may result in a hazardous design. The principles may be summarized as follows:

1. Reduction of the Area of Conflict: The impact area is decreased when Channelization is provided, and hence the probability of conflicts is also reduced. The figure below further clarifies the statement. Fig. 31:5 shows the conflict area in a Y-intersection without Channelization and Fig. 31:6 shows the reduced conflict area in the same intersection after providing medians.

2. Merging traffic streams at small angles: Merging at small angles permits the flow of traffic streams with minimum speed differentials. Hence, the gap acceptance time is

Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

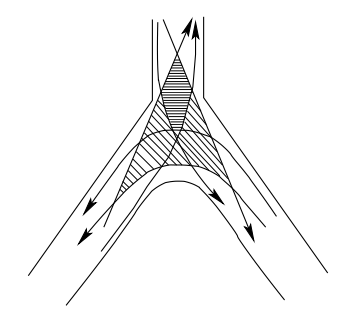

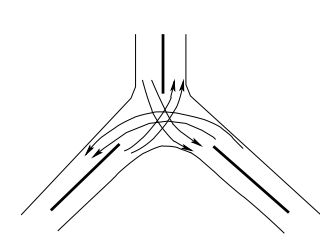

Figure 31:5: Conflict area in all paved intersection

Channelization - 1 | Transportation Engineering - Civil Engineering (CE)
Figure 31:6: Conflict area in a channelized intersection



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

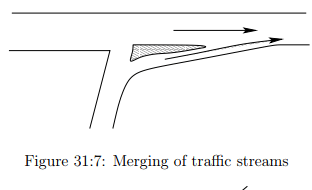

also small in such cases. The merging of roadways should be done as shown below in Fig. 31:7.

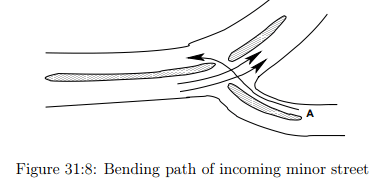

3. Reduction of the speed of incoming traffic by bending its path: The speed of vehicles entering into the intersection can be reduced by bending the path to the intersection approach. However as far as possible the path of the major traffic stream should not be bent. The above technique is shown below in Fig. 31:8.

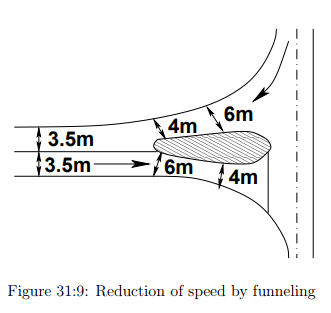

4. Reduction of speed of traffic by funneling: The funneling technique can also be used for reducing the speeds of the incoming vehicles. Due to the decrease in the width of the lane at the approach, the drivers tend to reduce the speed of their vehicles near the intersection. Fig. 31:9 shows the funneling technique used for reduction of speed.

5. Protection for turning vehicles/crossing conflicting traffic streams: Provision of a refuge area between the two opposing streams allows the driver of a crossing vehicle to select a safe gap in one stream at a time and also provides a safer crossing maneuver. Fig. 31:10further clarifies the above statement. 6. Discourage prohibited turns by island placement and shape: Undesirable and prohibited turns can be discouraged by the proper selection of shape and location of the



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

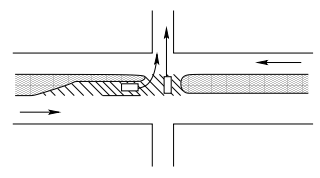

Figure 31:10: Refuge area for protecting crossing or turning traffic



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

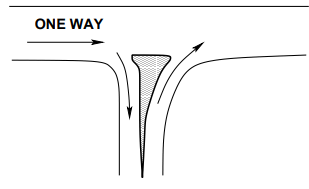

Figure 31:11: Properly placed islands discourage prohibited movements



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)
Figure 31:12: Location of signal posts on medians at intersections



islands. Fig. 31:11 shows how prohibited turns can be discouraged by proper shaping and placement of islands.

7. Providing locations of traffic control devices: Channelization may provide locations for the installation of essential traffic control devices, such as stop and directional signs, signals etc. Fig. 31:12 shows how channelizing devices can also be used for locating traffic control devices.



Channelizing devices

A channelizing device can be defined as any structure which helps in providing Channelization. These can be wide raised medians, non-traversable road islands, traversable raised curbs or even flush channelizing devices. A brief description of the various devices which are used for the purpose of Channelization are given in the following sections.



1. Wide Raised Medians

In this form of channelizing device, a raised wide separator is constructed between the

Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

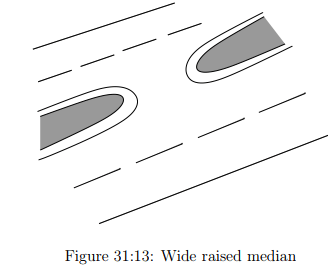

two opposing lanes and the space on the separator (median) is used either for planting some trees and/or for providing space for traffic signs etc. Fig. 31:13 shows a typical wide raised median on a freeway. A median varying between 1.2 m and 30 m in width may be employed. The higher values of width are adopted on freeways, where sufficient space is available for the construction of these. In addition, a well-landscaped wide median will also provide aesthetic benefits to the surrounding neighborhood. A wide median, if attractively landscaped, is often the most aesthetically pleasing separation method.

2. Non- traversable Raised Islands

In this type of device, a narrower and a higher median than the traversable island is constructed between the opposing lanes. This class of device has the advantage of a narrower median, but its use should be restricted to approach roadways with vehicle speeds of 60 kmph or below. These are generally 15 to 20 cm high and about 60 cm in width. Due to the height, most of the vehicles are not able to cross the median, and hence the name. Fig. 31:14 shows a non-traversable raised island constructed on a roadway. These devices are substantial enough that each installation should be carefully designed, as an inappropriately placed median can constitute a hazard if struck by an errant vehicle and hence the severity and crash risk is highly increased on the roadways having non-traversable raised islands.

3. Traversable Raised Curb Systems

In this device, a narrow and mountable type of raised curb is constructed to separate the traffic moving in the opposing lanes. This class of channelizing device is the narrowest, and therefore the easiest to fit in a wide range of roadway cross-section widths. The curb



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

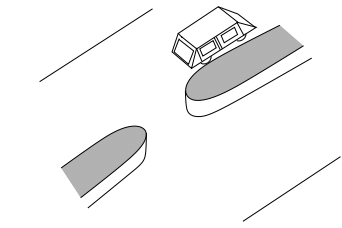

Figure 31:14: Non-traversable Raised Island (source: [13])



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

Figure 31:15: Traversable Raised Curb System (without vertical panels)







is up to 10 cm in height and up to about 30 cm in width. Curbs are formed with a rounded shape that will create minimal vehicle deflection upon impact. Generally, it is used with reboundable, reflectorized vertical panels to provide a visual deterrent to the drivers to cross over to opposite traffic lane. The main advantage of this type of device is that it can be installed on existing roadway centerlines, without the need for widening the roadway approaches to the crossing. Figs. 31:15 and 31:16 shows traversable raised curbs with and without vertical panels.



4. Flush Channelization

In this type of Channelization, a variety of treatments, including raising them above the pavement just slightly (2 to 5 cm); the application of pavement markings and other types of contrasting surfaces etc are possible. These may also be unpaved where they are



Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

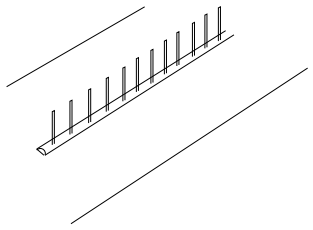

Figure 31:16: Traversable Raised Curb System (with vertical panels)

Channelization - 1 | Transportation Engineering - Civil Engineering (CE)

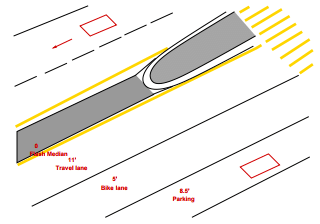

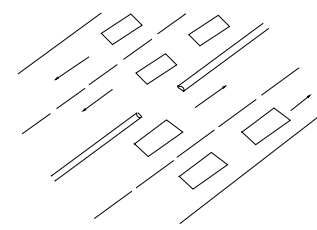

Figure 31:17: Flush island providing Channelization objectives formed by the pavement edges of existing roadways. In areas where snow plowing may be necessary, flush islands are the preferred design. Fig. 31:17 below shows how flush islands can also be used for achieving channelizing objectives. The area seen flushed with the road surface in Fig. 31:17 is the flush island.
