2024

Q1: A ball is thrown from the location (x₀, y₀) = (0, 0) of a horizontal playground with an initial speed v₀ at an angle θ₀ from the +x-direction. The ball is to be hit by a stone, which is thrown at the same time from the location (x₁, y₁) = (L, 0). The stone is thrown at an angle (180° - θ₁) from the +x-direction with a suitable initial speed. For a fixed v₀, when (θ₀, θ₁) = (45°, 45°), the stone hits the ball after time T₁, and when (θ₀, θ₁) = (60°, 30°), it hits the ball after time T₂. In such a case, (T₁/T₂)² is ____.
Ans: 2

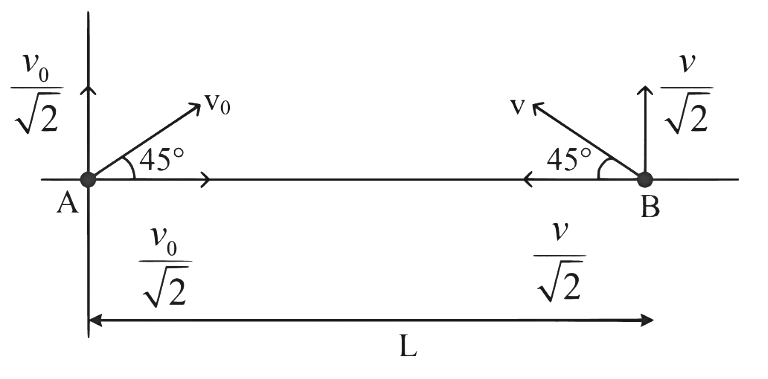

For Case I :
For case II,

2023

Q1: A particle of mass m is moving in the xy-plane such that its velocity at a point (x,y) is given as  where α is a non-zero constant. What is the force   acting on the particle?
(a)

(b)

(c)

(d) [JEE Advanced 2023 Paper 2]
Ans:

Clear all your JEE doubts with EduRev Join for Free

Join for Free

2021

Both particle have no vertical velocity after splitting so both will take same time to reach the ground.
∵ Time of motion of one part falling vertically downwards is 0.5 s
⇒ Time of motion of another part, t = 0.5 s

Q2: A projectile is thrown from a point O on the ground at an angle 45^∘ from the vertical and with a speed 5√2 m/s. The projectile at the highest point of its trajectory splits into two equal parts. One part falls vertically down to the ground, 0.5 s after the splitting. The other part, t seconds after splitting, falls to the ground at a distance x meters from the point O. The acceleration due to gravity g = 10 m/s².
The value of x is _____________.     [JEE Advanced 2021 Paper 1 ]
Ans: 7.5

Range =

Time of flight =

Both particle have no vertical velocity after splitting so both will take same time to reach the ground.
∵ Time of motion of one part falling vertically downwards is 0.5 s
⇒ Time of motion of another part, t = 0.5 s
From momentum conservation, p_i = p_f
2m × 5 = m × v
v = 10 m/s
Displacement of other part in 0.5 s in horizontal direction,
= v(T/2) = 10 × 0.5 = 5 m = R
∴ Total distance of second part from point O is x =3R/2 = 3 × 5/2
⇒ x = 7.5 m

2020

Here, μ_s = 0.40, μ_k = 0.32
∵ μ_kN₃ = μ_sN₄
and x₁N₃ = 40 × N₄
So,
∴ x₁ = 32 cm

⇒ x_g = 25.6

Q2: A football of radius R is kept on a hole of radius r (r < R) made on a plank kept horizontally. One end of the plank is now lifted so that it gets tilted making an angle θ from the horizontal as shown in the figure below. The maximum value of θ so that the football does not start rolling down the plank satisfies (figure is schematic and not drawn to scale)      [JEE Advanced 2020 Paper 1]

(a) sin θ = r / R
(b) tan θ = r / R
(c) sin θ = r / 2R
(d) cos θ = r / 2R
Ans: (a)

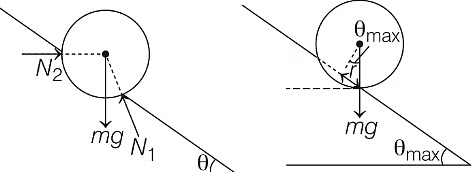

For θ_max, the football is about to roll, then N₂ = 0 and all the forces (mg and N₁) must pass through contact point.
∴
⇒ sin θ_max = r / R

Download the notes JEE Advanced Previous Year Questions (2018 - 2024): Laws of Motion

Download as PDF

Download as PDF

2019

Q1: A block of mass 2M is attached to a massless spring with spring-constant k.This block is connected to two other blocks of masses M and 2M using two massless pulleys and strings. The accelerations of the blocks are a₁, a₂ and a₃ as shown in the figure. The system is released from rest with the spring in its unstretched state. The maximum extension of the spring is x₀. Which of the following option(s) is/are correct? [g is the acceleration due to gravity. Neglect friction]
(a) a₂ −  a₁= a₁ − a₃
(b) At an extension of x₀ / 4 of the spring, the magnitude of acceleration of the block connected to the spring is 3g / 10.
(c) x0 = 4Mg / k
(d) When spring achieves an extension of x₀ / 2 for the first time, the speed of the block connected to the spring is      [JEE Advanced 2019 Paper 2]
Ans:

In the frame of pulley B,
the hanging masses have accelerations :
M → (a₂ − a₁)
2M → (a₃ − a₁) : downward.
∴ (a₂ − a₁) = (−a₃ − a₁) [constant]
Assuming that the extension of the spring is x
We consider the FBD of A :

where, a1 = d²x / dt²  .... (i)
and the FBD of the rest of the system in the frame of pulley B :

Upward acceleration of block M w.r.t. the pulley B = Downward acceleration of block 2M w.r.t. the pulley.

Substituting in Eq. (i), we get

This is equation of SHM
Maximum extension = 2 × amplitude
i.e.,
Amplitude = x₀ / 2 =  and ω =
At x₀ / 4, acceleration is easily found from Eq. (iii),

At x₀/2, speed of the block
(2M) = ω x Amplitude
=

∴  option (a) is correct.

Take a Practice Test Test yourself on topics from JEE exam

Practice Now

Practice Now

2018

Q1: A solid horizontal surface is covered with a thin layer of oil. A rectangular block of mass m = 0.4 kg is at rest on this surface. An impulse of 1.0N is applied to the block at time t = 0 so that it starts moving along the x-axis with a velocity v(t) = v₀e^−t/τ, where �0 is a constant and τ = 4s. The displacement of the block, in metres, at t = τ is ______________ Take e⁻¹= 0.37.    [JEE Advanced 2018 Paper 2]
Ans: 6.30
The block was initially at rest and its velocity just after the application of impulse is v(0) = v₀e^−0/τ  = v₀. The applied impulse is equal to the change in linear momentum of the block i.e., J = mv₀, which give
v₀ = J/m = 1/0.4 = 2.5 m/s.

The velocity of the particle is given as
v(t) = v₀e^−t/τ
Integrate to get the displacement

Substitute t = τ = 4 s and
v₀ = 2.5 m/s to get x(τ)
= (2.5) (4) (1 − e⁻¹)
= 6.3 m.
