VAPOUR COMPRESSION CYCLE

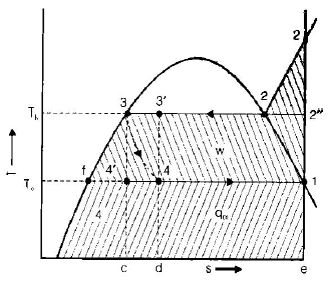

If in a Reversed Carnot Cycle
- Refrigerant is compressed from dry saturated condition.
- Expander is replaced by a throttling device.
The modified cycle is vapour compression cycle with no draw back of reversed carnot cycle with vapour as refrigerant
- Refrigerant circulation rate
- Volume of suction vapour = m& V1
V1 – Specific volume of the vapour at suction
- Actual piston displacement volume of compressor
hv = volumetric efficiency of compressor - Power consumption of compressor
- Heat rejected in the condenser
- The superheat discharge temperature is found by
- Refrigerating effect = (h1 - h4 ) = Q0
- In case of R - 11, R - 22 and Ammonia system, wet suction state leads to maximum COP, for all other refrigerants system. suction from super heated state gives maximum COP,
hv = volumetric efficiency of compressor
(h1 - h4 ) = Q0Actual vapour compression system has following deviation from simple VCC.
(i) Superheating of vapour in evaporator.
(ii) Heat gain and superheating of vapour in suction line.
(iii) Pressure drop in suction line
(iv) Polytropic compression instead of isentropic compression due to friction.
(v) Pressure drop at discharge valve.
(vi) pressure drop in condenser and evaporator.
(vii) Subcooling of liquid in condenser and heat gain in liquid line.
EFFECT OF OPERATING CONDITIONS ON COP OF PAOUR COMPRESSION CYCLE.
Effect of Decrease in Evaporator Pressure
- Decrease in refrigerating effect
- Increases in specific volume of suction vapour
- Decease in Volumetric efficiency of compressor due to increase in pressure ratio.
- Increase in compressor work
Effect of Increase in Condenser Pressure
- Deceases in Refrigerating effect
- Increase in compressor work
- Decrease in volumetric efficiency of compressor
- Increase in mass flow of refrigerant.
- COP decreases with both decreasing evaporator pressure and increasing compressor pressure. Effect of decreasing evaporator pressure is more on hte decrease in COP than the effect of increase in condenser pressure by same account.
Effect of suction Vapour Superheat
- Increase in Refrigerating effect
- Increase in specific volume of suction vapour
- Increase in compressor work.
- It ensures complete vaporization of liquid before entering compressor.
- For R - 12, suction vapour superheat increases the COP.
- For R-22 & ammonia system, suction vapour super heat decreases the COP.
Effect of Liquid subcooling
- Increase in refrigerating effect
- Compressor work is same & COP in creases
If Energy Gained by Subcooling is Utilized in super Heating the Suction Vapour
- For R-12, work per TR is decreased and COP increases.
- For R-22 Ammonia, work per TR increases & COP decreases.
- There is large pressure drop in evaporator and very less drop in condenser. So pressure drop in evaporator is very critical in design.
