In a balanced Wheatstone bridge, if the position of detector and source are interchanged, the bridge will still remain balanced. This inference can be drawn from
  • a)
    Reciprocity theorem
  • b)
    Duality theorem
  • c)
    Compensation theorem
  • d)
    Equivalence theorem
Correct answer is option 'A'. Can you explain this answer?
Most Upvoted Answer
In a balanced Wheatstone bridge, if the position of detector and sourc...
Reciprocity Theorem:
  • It states that In any branch of a network or circuit, the current due to a single source of voltage (V) in the network is equal to the current through that branch in which the source was originally placed when the source is again put in the branch in which the current was originally obtained.
  • This theorem is used in the bilateral linear network which consists of bilateral components.

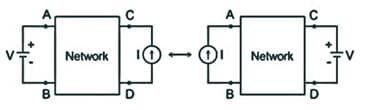

  • In simple words, we can state the reciprocity theorem as when the places of voltage and current source in any network are interchanged the amount or magnitude of current and voltage flowing in the circuit remains the same.
The location of the voltage source and the current source may be interchanged without a change in current. However, the polarity of the voltage source should be identical to the direction of the branch current in each position.

In a balanced Wheatstone bridge, if the position of detector and source are interchanged, the bridge will still remain balanced. This inference is drawn from the Reciprocity theorem.
