Mitochondria

• Mitochondria (sing.: mitochondrion), unless specifically stained, are not easily visible under the microscope.
• The number of mitochondria per cell is variable depending on the physiological activity of the cells.
• In terms of shape and size also, a considerable degree of variability is observed.
•  Typically, it is sausage-shaped or cylindrical having a diameter of 0.2-1.0µm (average 0.5µm) and length 1.0-4.1µm.
•  Each mitochondrion is a double membrane-bound structure with the outer membrane and the inner membrane dividing its lumen distinctly into two aqueous compartments, i.e., the outer compartment and the inner compartment.

•  The inner compartment is filled with a dense homogeneous substance called the matrix.
• The outer membrane forms the continuous limiting boundary of the organelle.
• The inner membrane forms a number of infoldings called the cristae (sing.: crista) towards the matrix (Figure 8.7).
• The cristae increase the surface area.
• The two membranes have their own specific enzymes associated with the mitochondrial function.
• Mitochondria are the sites of aerobic respiration.
• They produce cellular energy in the form of ATP, hence they are called ‘power houses’ of the cell.
• The matrix also possesses a single circular DNA molecule, a few RNA molecules, ribosomes (70S) and the components required for the synthesis of proteins.
• The mitochondria divide by fission.

Plastids

• Plastids are found in all plant cells and in euglenoides. These are easily observed under the microscope as they are large. They bear some specific pigments, thus imparting specific colours to the plants.

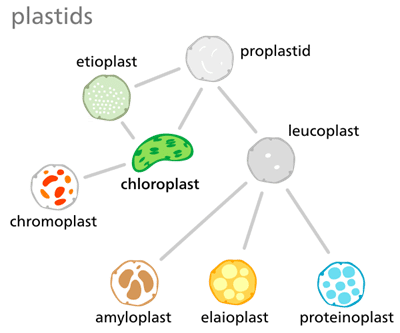

• Based on the type of pigments, plastids can be classified into chloroplasts, chromoplasts, and leucoplasts.
•  The chloroplasts contain chlorophyll and carotenoid pigments which are responsible for trapping light energy essential for photosynthesis.
•  In the chromoplasts , fat-soluble carotenoid pigments like carotene, xanthophylls, and others are present. This gives the part of the plant a yellow, orange, or red colour.
•

• The leucoplasts are the colourless plastids of varied shapes and sizes with stored nutrients:
  • Amyloplasts store carbohydrates (starch), e.g., potato;
  • elaioplasts store oils and fats;
  • aleuroplasts store proteins.

• The majority of the chloroplasts of the green plants are found in the mesophyll cells of the leaves. These are lens-shaped, oval, spherical, discoid, or even ribbon-like organelles having variable length (5-10µm) and width (2-4µm).
• Their number varies from 1 per cell of the Chlamydomonas, a green alga, to 20-40 per cell in the mesophyll.
• Like mitochondria, the chloroplasts are also double membrane bound. Of the two, the inner chloroplast membrane is relatively less permeable.
• The space limited by the inner membrane of the chloroplast is called the stroma. A number of organised flattened membranous sacs called the thylakoids are present in the stroma.

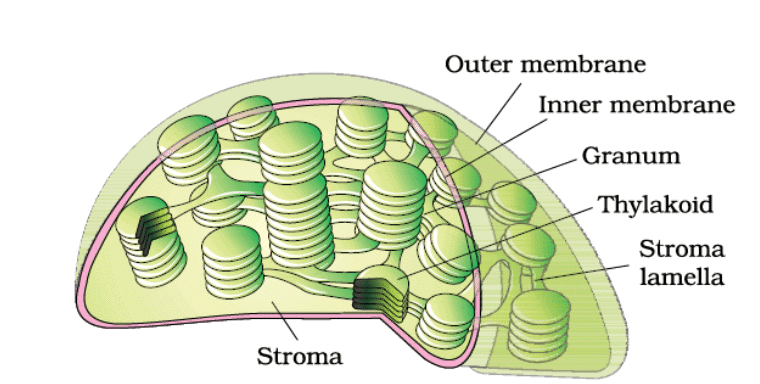

Chloroplast Sectional View

• Thylakoids are arranged in stacks like the piles of coins called grana (singular: granum) or the intergranal thylakoids. In addition, there are flat membranous tubules called the stroma lamellae connecting the thylakoids of the different grana.
• The membrane of the thylakoids encloses a space called a lumen. The stroma of the chloroplast contains enzymes required for the synthesis of carbohydrates and proteins.
• It also contains small, double-stranded circular DNA molecules and ribosomes. Chlorophyll pigments are present in the thylakoids. The ribosomes of the chloroplasts are smaller (70S) than the cytoplasmic ribosomes (80S).

Ribosomes

• Ribosomes are the granular structures first observed under the electron microscope as dense particles by George Palade (1953).

• They are composed of ribonucleic acid (RNA) and proteins and are not surrounded by any membrane.

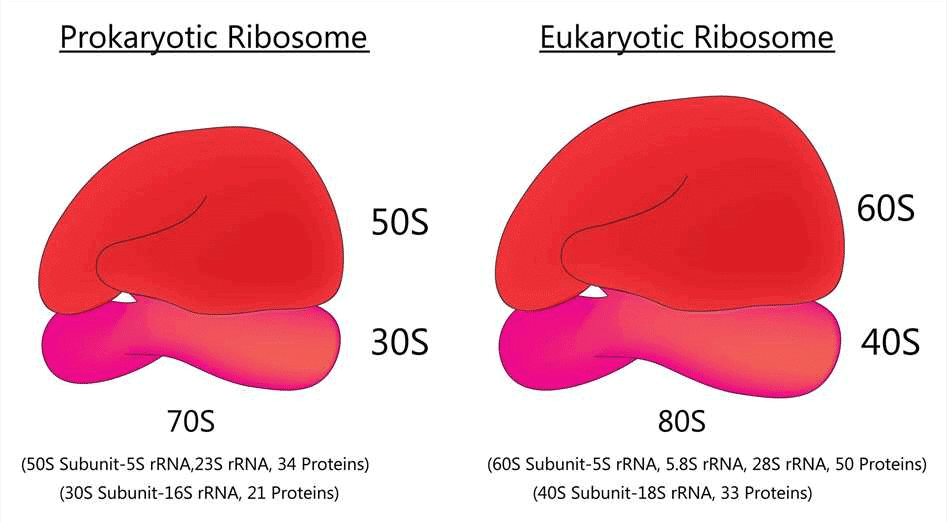

• The eukaryotic ribosomes are 80S while the prokaryotic ribosomes are 70S.

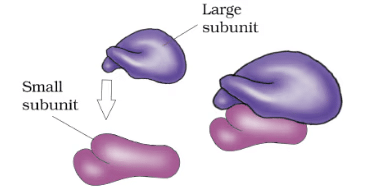

• Each ribosome has two subunits, larger and smaller subunits (Fig 8.9).
• The two subunits of 80S ribosomes are 60S and 40S while that of 70S ribosomes are 50S and 30S.
• Here ‘S’ (Svedberg’s Unit) stands for the sedimentation coefficient; it is indirectly a measure of density and size.
• Both 70S and 80S ribosomes are composed of two subunits.

Cytoskeleton

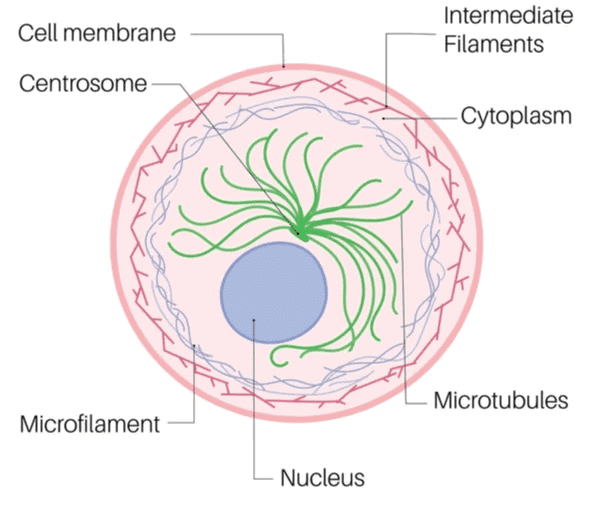

 An elaborate network of filamentous proteinaceous structures consisting of microtubules, microfilaments and intermediate filaments present in the cytoplasm is collectively referred to as the cytoskeleton.

 The cytoskeleton in a cell is involved in many functions such as:

• mechanical support
• motility
• maintenance of the shape of the cell.
