Links are found in nearly all web pages. Links allow users to click their way from page to page.
Note: A link does not have to be text. A link can be an image or any other HTML element!
The HTML <a> tag defines a hyperlink. It has the following syntax:
<a href="url">link text</a>
The most important attribute of the <a> element is the href attribute, which indicates the link's destination.
The link text is the part that will be visible to the reader.
Clicking on the link text, will send the reader to the specified URL address.
Example
This example shows how to create a link to W3Schools.com:
<a href="https://www.w3schools.com/">Visit W3Schools.com!</a>
By default, links will appear as follows in all browsers:
Tip: Links can of course be styled with CSS, to get another look!
By default, the linked page will be displayed in the current browser window. To change this, you must specify another target for the link.
The target attribute specifies where to open the linked document.
The target attribute can have one of the following values:
Example
Use target="_blank" to open the linked document in a new browser window or tab:
<a href="https://www.w3schools.com/" target="_blank">Visit W3Schools!</a>
Both examples above are using an absolute URL (a full web address) in the href attribute.
A local link (a link to a page within the same website) is specified with a relative URL (without the "https://www" part):
Example
<h2>Absolute URLs</h2>
<p><a href="https://www.w3.org/">W3C</a></p>
<p><a href="https://www.google.com/">Google</a></p>
<h2>Relative URLs</h2>
<p><a href="html_images.asp">HTML Images</a></p>
<p><a href="/css/default.asp">CSS Tutorial</a></p>
To use an image as a link, just put the <img> tag inside the <a> tag:
Example
<a href="default.asp">
<img src="https://edurev.gumlet.io/miley.gif" alt="HTML tutorial" style="width:42px;height:42px;">
</a>
Use mailto: inside the href attribute to create a link that opens the user's email program (to let them send a new email):
Example
<a href="mailto:someone@example.com">Send email</a>
To use an HTML button as a link, you have to add some JavaScript code.
JavaScript allows you to specify what happens at certain events, such as a click of a button:
Example
<button onclick="document.location='default.asp'">HTML Tutorial</button>
The title attribute specifies extra information about an element. The information is most often shown as a tooltip text when the mouse moves over the element.
Example
<a href="https://www.w3schools.com/html/" title="Go to W3Schools HTML section">Visit our HTML Tutorial</a>
Example
Use a full URL to link to a web page:
<a href="https://www.w3schools.com/html/default.asp">HTML tutorial</a>
Example
Link to a page located in the html folder on the current web site:
<a href="/html/default.asp">HTML tutorial</a>
Example
Link to a page located in the same folder as the current page:
<a href="default.asp">HTML tutorial</a>
An HTML link is displayed in a different color depending on whether it has been visited, is unvisited, or is active.
By default, a link will appear like this (in all browsers):
You can change the link state colors, by using CSS:
Example
Here, an unvisited link will be green with no underline. A visited link will be pink with no underline. An active link will be yellow and underlined. In addition, when mousing over a link (a:hover) it will become red and underlined:
<style>
a:link {
color: green;
background-color: transparent;
text-decoration: none;
}
a:visited {
color: pink;
background-color: transparent;
text-decoration: none;
}
a:hover {
color: red;
background-color: transparent;
text-decoration: underline;
}
a:active {
color: yellow;
background-color: transparent;
text-decoration: underline;
}
</style>
A link can also be styled as a button, by using CSS:
Example
<style>
a:link, a:visited {
background-color: #f44336;
color: white;
padding: 15px 25px;
text-align: center;
text-decoration: none;
display: inline-block;
}
a:hover, a:active {
background-color: red;
}
</style>
HTML links can be used to create bookmarks, so that readers can jump to specific parts of a web page.
Example
First, use the id attribute to create a bookmark:
<h2 id="C4">Chapter 4</h2>
Then, add a link to the bookmark ("Jump to Chapter 4"), from within the same page:
Example
<a href="#C4">Jump to Chapter 4</a>
You can also add a link to a bookmark on another page:
<a href="html_demo.html#C4">Jump to Chapter 4</a>
Images can improve the design and the appearance of a web page.
Example
<img src="https://edurev.gumlet.io/ic_trulli.jpg" alt="Italian Trulli">
Example
<img src="https://edurev.gumlet.io/mg_girl.jpg" alt="Girl in a jacket">
Example
<img src="https://edurev.gumlet.io/mg_chania.jpg" alt="Flowers in Chania">
The HTML <img> tag is used to embed an image in a web page.
Images are not technically inserted into a web page; images are linked to web pages. The <img> tag creates a holding space for the referenced image.
The <img> tag is empty, it contains attributes only, and does not have a closing tag.
The <img> tag has two required attributes:
<img src="https://edurev.gumlet.io/rl" alt="alternatetext">
The required src attribute specifies the path (URL) to the image.
Note: When a web page loads, it is the browser, at that moment, that gets the image from a web server and inserts it into the page. Therefore, make sure that the image actually stays in the same spot in relation to the web page, otherwise your visitors will get a broken link icon. The broken link icon and the alt text are shown if the browser cannot find the image.
Example
<img src="https://edurev.gumlet.io/mg_chania.jpg" alt="Flowers in Chania">
The required alt attribute provides an alternate text for an image, if the user for some reason cannot view it (because of slow connection, an error in the src attribute, or if the user uses a screen reader).
The value of the alt attribute should describe the image:
Example
<img src="https://edurev.gumlet.io/mg_chania.jpg" alt="Flowers in Chania">
If a browser cannot find an image, it will display the value of the alt attribute:
Example
<img src="https://edurev.gumlet.io/rongname.gif" alt="Flowers in Chania">
Tip: A screen reader is a software program that reads the HTML code, and allows the user to "listen" to the content. Screen readers are useful for people who are visually impaired or learning disabled.
You can use the style attribute to specify the width and height of an image.
Example
<img src="https://edurev.gumlet.io/mg_girl.jpg" alt="Girl in a jacket" style="width:500px;height:600px;">
Alternatively, you can use the width and height attributes:
Example
<img src="https://edurev.gumlet.io/mg_girl.jpg" alt="Girl in a jacket" width="500" height="600">
The width and height attributes always define the width and height of the image in pixels.
Note: Always specify the width and height of an image. If width and height are not specified, the web page might flicker while the image loads.
The width, height, and style attributes are all valid in HTML.
However, we suggest using the style attribute. It prevents styles sheets from changing the size of images:
Example
<!DOCTYPE html>
<html>
<head>
<style>
img {
width: 100%;
}
</style>
</head>
<body>
<img src="https://edurev.gumlet.io/tml5.gif" alt="HTML5 Icon" width="128" height="128">
<img src="https://edurev.gumlet.io/tml5.gif" alt="HTML5 Icon" style="width:128px;height:128px;">
</body>
</html>
If you have your images in a sub-folder, you must include the folder name in the src attribute:
Example
<img src="https://edurev.gumlet.io/images/html5.gif" alt="HTML5 Icon" style="width:128px;height:128px;">
Some web sites point to an image on another server.
To point to an image on another server, you must specify an absolute (full) URL in the src attribute:
Example
<img src="https://www.w3schools.com/images/w3schools_green.jpg" alt="W3Schools.com">
Notes on external images: External images might be under copyright. If you do not get permission to use it, you may be in violation of copyright laws. In addition, you cannot control external images; it can suddenly be removed or changed.
HTML allows animated GIFs:
Example
<img src="https://edurev.gumlet.io/rogramming.gif" alt="Computer Man" style="width:48px;height:48px;">
To use an image as a link, put the <img> tag inside the <a> tag:
Example
<a href="default.asp">
<img src="https://edurev.gumlet.io/miley.gif" alt="HTML tutorial" style="width:42px;height:42px;">
</a>
Use the CSS float property to let the image float to the right or to the left of a text:
Example
<p><img src="https://edurev.gumlet.io/miley.gif" alt="Smiley face" style="float:right;width:42px;height:42px;">
The image will float to the right of the text.</p>
<p><img src="https://edurev.gumlet.io/miley.gif" alt="Smiley face" style="float:left;width:42px;height:42px;">
The image will float to the left of the text.</p>

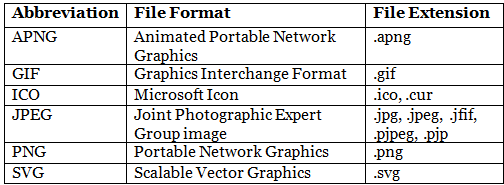

Here are the most common image file types, which are supported in all browsers (Chrome, Edge, Firefox, Safari, Opera):
With HTML image maps, you can create clickable areas on an image.
The HTML <map> tag defines an image map. An image map is an image with clickable areas. The areas are defined with one or more <area> tags.
Try to click on the computer, phone, or the cup of coffee in the image below:
Example
Here is the HTML source code for the image map above:
<img src="https://edurev.gumlet.io/orkplace.jpg" alt="Workplace" usemap="#workmap">
<map name="workmap">
<area shape="rect" coords="34,44,270,350" alt="Computer" href="computer.htm">
<area shape="rect" coords="290,172,333,250" alt="Phone" href="phone.htm">
<area shape="circle" coords="337,300,44" alt="Coffee" href="coffee.htm">
</map>
The image is inserted using the <img> tag. The only difference from other images is that you must add a usemap attribute:
<img src="https://edurev.gumlet.io/orkplace.jpg" alt="Workplace" usemap="#workmap">
The usemap value starts with a hash tag # followed by the name of the image map, and is used to create a relationship between the image and the image map.
Tip: You can use any image as an image map!
Then, add a <map> element.
The <map> element is used to create an image map, and is linked to the image by using the required name attribute:
<map name="workmap">
The name attribute must have the same value as the <img>'s usemap attribute .
Then, add the clickable areas.
A clickable area is defined using an <area> element.
You must define the shape of the clickable area, and you can choose one of these values:
You must also define some coordinates to be able to place the clickable area onto the image.
The coordinates for shape="rect" come in pairs, one for the x-axis and one for the y-axis.

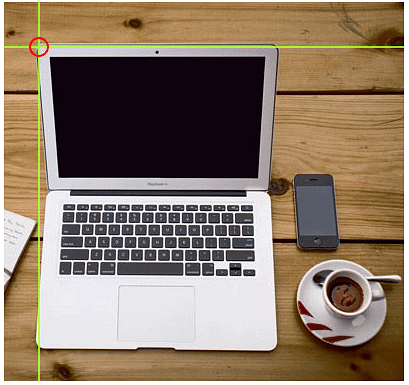

So, the coordinates 34,44 is located 34 pixels from the left margin and 44 pixels from the top:

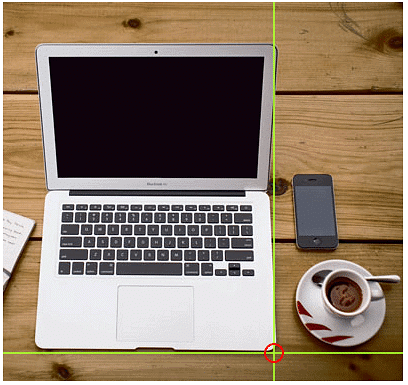

The coordinates 270,350 is located 270 pixels from the left margin and 350 pixels from the top:

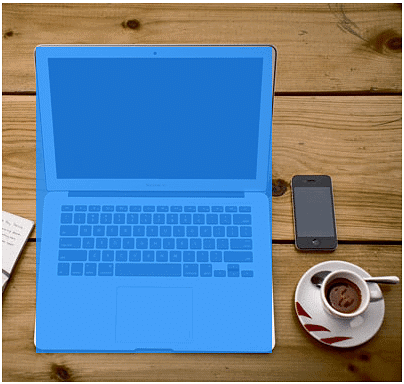

Now we have enough data to create a clickable rectangular area:
Example
<area shape="rect" coords="34, 44, 270, 350" href="computer.htm">
This is the area that becomes clickable and will send the user to the page "computer.htm":

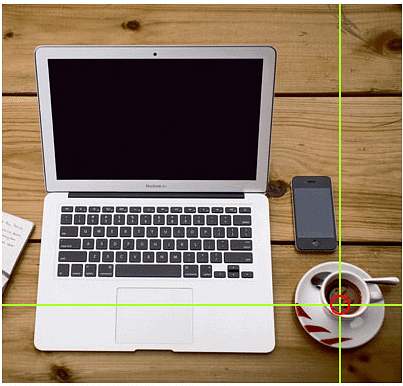

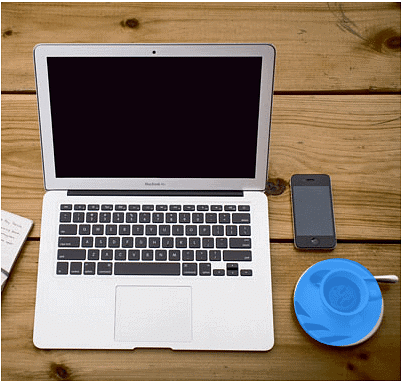

To add a circle area, first locate the coordinates of the center of the circle:
337,300

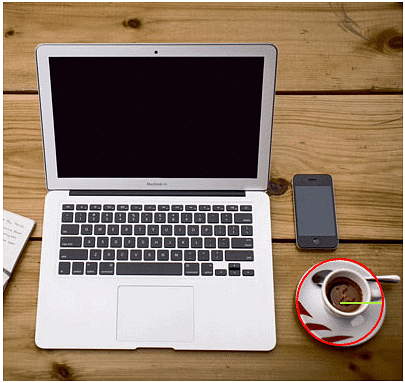

Then specify the radius of the circle:
44 pixels
Now you have enough data to create a clickable circular area:
Example
<area shape="circle" coords="337, 300, 44" href="coffee.htm">
This is the area that becomes clickable and will send the user to the page "coffee.htm":
The shape="poly" contains several coordinate points, which creates a shape formed with straight lines (a polygon).
This can be used to create any shape.
Like maybe a croissant shape!

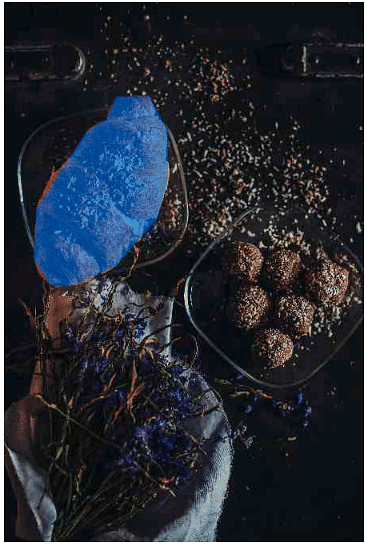

How can we make the croissant in the image below become a clickable link?

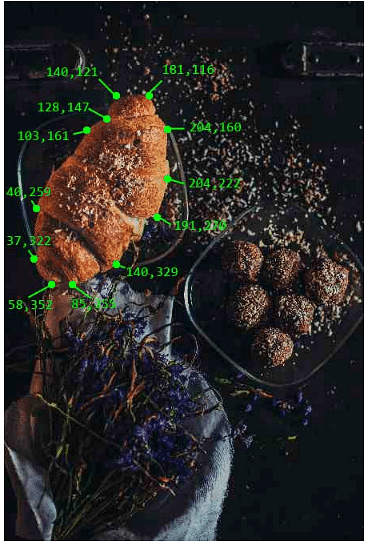

We have to find the x and y coordinates for all edges of the croissant:
The coordinates come in pairs, one for the x-axis and one for the y-axis:
Example
<area shape="poly" coords="140,121,181,116,204,160,204,222,191,270,140,329,85,355,58,352,37,322,40,259,103,161,128,147" href="croissant.htm">
This is the area that becomes clickable and will send the user to the page "croissant.htm":
A clickable area can also trigger a JavaScript function.
Add a click event to the <area> element to execute a JavaScript function:
Example
Here, we use the onclick attribute to execute a JavaScript function when the area is clicked:
<map name="workmap">
<area shape="circle" coords="337,300,44" href="coffee.htm" onclick="myFunction()">
</map>
<script>
function myFunction() {
alert("You clicked the coffee cup!");
}
</script>
A background image can be specified for almost any HTML element.
To add a background image on an HTML element, use the HTML style attribute and the CSS background-image property:
Example
Add a background image on a HTML element:
<p style="background-image: url('img_girl.jpg');">
You can also specify the background image in the <style> element, in the <head> section:
Example
Specify the background image in the <style> element:
<style>
p {
background-image: url('img_girl.jpg');
}
</style>
If you want the entire page to have a background image, you must specify the background image on the <body> element:
Example
Add a background image for the entire page:
<style>
body {
background-image: url('img_girl.jpg');
}
</style>

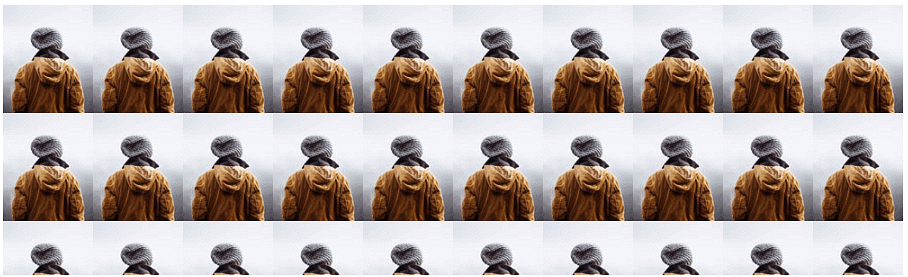

If the background image is smaller than the element, the image will repeat itself, horizontally and vertically, until it reaches the end of the element:
Example
<style>
body {
background-image: url('example_img_girl.jpg');
}
</style>
To avoid the background image from repeating itself, set the background-repeat property to no-repeat.
Example
<style>
body {
background-image: url('example_img_girl.jpg');
background-repeat: no-repeat;
}
</style>
If you want the background image to cover the entire element, you can set the background-size property to cover.
Also, to make sure the entire element is always covered, set the background-attachment property to fixed:
This way, the background image will cover the entire element, with no stretching (the image will keep its original proportions):
Example
<style>
body {
background-image: url('img_girl.jpg');
background-repeat: no-repeat;
background-attachment: fixed;
background-size: cover;
}
</style>
If you want the background image to stretch to fit the entire element, you can set the background-size property to 100% 100%:
Try resizing the browser window, and you will see that the image will stretch, but always cover the entire element.
Example
<style>
body {
background-image: url('img_girl.jpg');
background-repeat: no-repeat;
background-attachment: fixed;
background-size: 100% 100%;
}
</style>
The HTML <picture> element allows you to display different pictures for different devices or screen sizes.
The HTML <picture> element gives web developers more flexibility in specifying image resources.
The <picture> element contains one or more <source> elements, each referring to different images through the srcset attribute. This way the browser can choose the image that best fits the current view and/or device.
Each <source> element has a media attribute that defines when the image is the most suitable.
Example
Show different images for different screen sizes:
<picture>
<source media="(min-width: 650px)" srcset="img_food.jpg">
<source media="(min-width: 465px)" srcset="img_car.jpg">
<img src="https://edurev.gumlet.io/mg_girl.jpg">
</picture>
Note: Always specify an <img> element as the last child element of the <picture> element. The <img> element is used by browsers that do not support the <picture> element, or if none of the <source> tags match.
There are two main purposes for the <picture> element:
1. Bandwidth
If you have a small screen or device, it is not necessary to load a large image file. The browser will use the first <source> element with matching attribute values, and ignore any of the following elements.
2. Format Support
Some browsers or devices may not support all image formats. By using the <picture> element, you can add images of all formats, and the browser will use the first format it recognizes, and ignore any of the following elements.
Example
The browser will use the first image format it recognizes:
<picture>
<source srcset="img_avatar.png">
<source srcset="img_girl.jpg">
<img src="https://edurev.gumlet.io/mg_beatles.gif" alt="Beatles" style="width:auto;">
</picture>
Note: The browser will use the first <source> element with matching attribute values, and ignore any following <source> elements.
14 videos|31 docs|24 tests
|
|
Explore Courses for Class 3 exam
|
